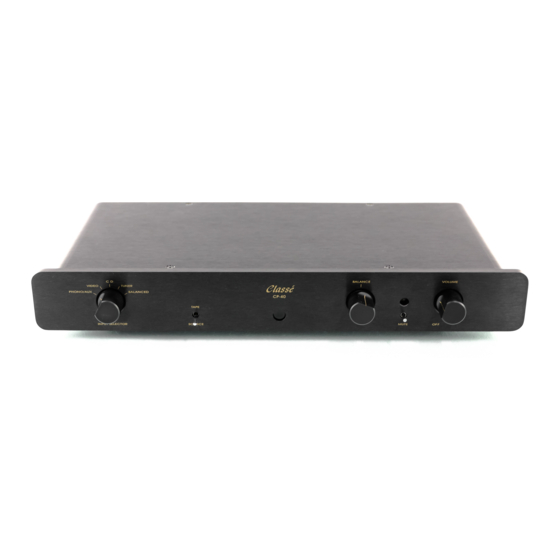

Classe Audio CP-40 Owner's Manual

Remote control balanced line preamplifier
Hide thumbs

Advertisement

Quick Links

CLASSÉ AUDIO
CP-40
REMOTE CONTROL
BALANCED LINE PREAMPLIFIER
CP-40
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP-40 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Classe Audio CP-40

Summary of Contents for Classe Audio CP-40

  • Page 1 CLASSÉ AUDIO CP-40 REMOTE CONTROL BALANCED LINE PREAMPLIFIER CP-40 OWNER'S MANUAL...
  • Page 2 CLASSÉ DESIGN PHILOSOPHY 1. REPEATED LISTENING DESIGN SESSIONS: Fine tuning of sound by exchanging and mixing of parts (transistors, capacitors, wiring, PCB boards etc.), and adjusting many specific operating voltages within proper engineering ranges, producing an overall sonic recipe giving the most natural harmonic realism of music typical of instruments in a live performance.

  • Page 3: Table Of Contents

    CP-40 OWNER'S MANUAL TABLE OF CONTENTS UNPACKING & SET-UP..............4 A.C. LINE POWER................5 INPUTS....................6 JUMPER SETTING DIAGRAMS (MC/MM, PHONO/AUX)..9 OUTPUTS ..................11 FRONT PANEL CONTROLS............12 WARRANTY..................15 FEATURES AND SPECIFICATIONS .......... 17 WARRANTY REGISTRATION ........... 18...

  • Page 4: Unpacking & Set-Up

    UNPACKING & SET-UP Your CLASSÉ CP-40 preamplifier has been carefully wrapped in heavy gauge plastic, packed in semi-rigid foam and contained in a special box. To remove the unit, open and spread the top flaps of the box. By its sides, lift out the entire unit with foam pieces intact. Remove each foam side by pulling straight out.

  • Page 5: A.c. Line Power

    A.C. LINE POWER The Classé CP-40 preamplifier has no power switch. Its low power consumption and improved sonics from always being ON led to the omission of an ON/OFF switch. In fact, while thoroughly musical shortly after turn-on, the preamplifier will exhibit "sonic growth" during its first 300 hours of use.

  • Page 6: Inputs

    INPUTS: The input jacks are clearly marked on the back of the CP-40. The following inputs are provided: PHONO/AUX, VIDEO, CD, TUNER, BALANCED, and TAPE. PHONO/AUX: The CP-40 preamplifier can be configured as a PHONO or LINE unit by setting the internal jumpers (see fig.1, 2 &...
  • Page 7 TAPE IN The TAPE IN of the CP-40 preamplifier should be connected to the LINE OUT or TAPE OUT of the tape deck. The TAPE input does not appear on the selector switch. It is activated by the TAPE switch. (See FRONT PANEL CONTROLS: TAPE SWITCH.)

  • Page 8: Outputs

    Having confirmed the correct connections, plug the XLR connectors of the balanced interconnects into the locking XLR connector on the rear of the CP-40 marked BALANCED OUTPUT. (To remove the connectors, press the tab above the connector.)

  • Page 9: Front Panel Controls

    FRONT PANEL CONTROLS INPUT SELECTOR: This selects one of the five inputs connected to the preamplifier, except TAPE IN (see TAPE SWITCH below). The selector switch is silent and will prevent pulses when switching positions. However, it remains good practice to reduce the volume control level or put MUTE to ON (steady GREEN LED) when changing the input selection.
  • Page 10 MUTE SWITCH: (remote control) Switching between PLAY and MUTE can be done by either manually pressing the MUTE switch down momentarily on the CP-40 faceplate or pushing the MUTE button on the hand held remote control unit. When MUTE (ON) is selected, which is indicated by a STEADY GREEN LED, the outputs of the preamplifier are completely cut off.

  • Page 11: Warranty

    CP-40 LIMITED FACTORY WARRANTY (North America only). IMPORTANT: WARRANTY REGISTRATION, AND A COPY OF THE "AUTHORIZED DEALER BILL OF SALE", MUST BE RECEIVED AT THE CLASSÉ FACTORY (address below) WITHIN TWENTY (20) DAYS OF PURCHASE BY THE FIRST RETAIL PURCHASER IN ORDER TO VALIDATE THESE WARRANTIES.
  • Page 12 The warranty shall be void and of no effect in the event of any of the following: 1) Operation not in accordance with this manual. 2) Accident, abuse, tampering, or unauthorized modification, as determined by Classé Audio Inc. 3) Failure to meet any of the above conditions. 4) Removal, defacing, or falsifying the serial number plate.

  • Page 13: Warranty Registration

    (20) days of purchase. This will allow us to provide expedient service, information regarding updates and new products, and validate the Classé warranty. ||||||||||||||||||||||||||||||||||||||| CP-40 SERIAL NUMBER_____________________PURCHASE DATE__________________ AUTHORIZED DEALER_______________________________________________________ PURCHASER'S NAME_________________________________________________________ STREET ADDRESS____________________________________________________________ CITY________________________________STATE/PROV.____________________________...
