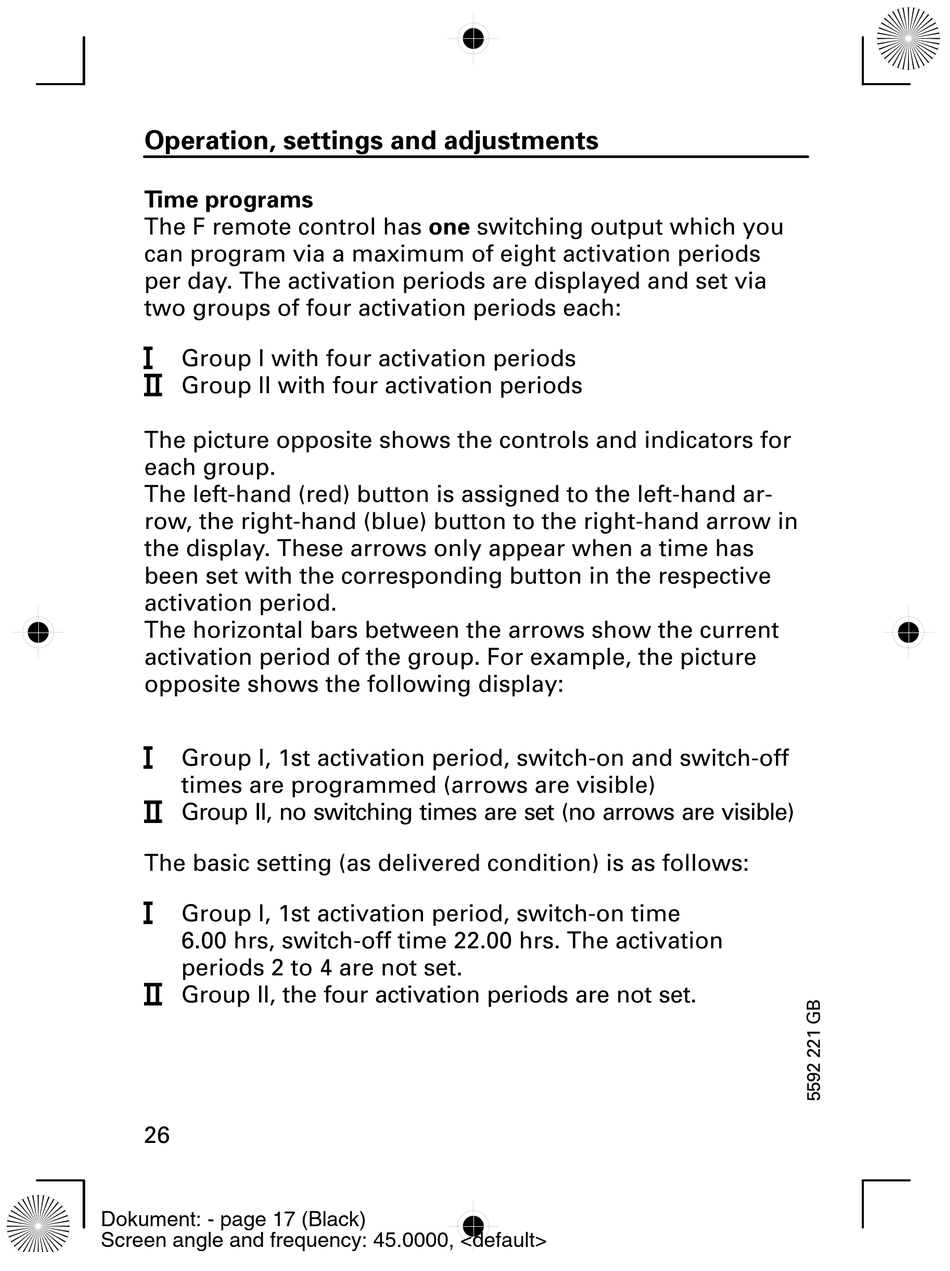

Operation, settings and adjustments
Time programs
The F remote control has one switching output which you
can program via a maximum of eight activation periods
per day. The activation periods are displayed and set via
two groups of four activation periods each:
Group I with four activation periods
Group II with four activation periods
The picture opposite shows the controls and indicators for
each group.
The left-hand (red) button is assigned to the left-hand ar
row, the right-hand (blue) button to the right-hand arrow in
the display. These arrows only appear when a time has
been set with the corresponding button in the respective
activation period.
The horizontal bars between the arrows show the current
activation period of the group. For example, the picture
opposite shows the following display:
Group I, 1st activation period, switch-on and switch-off
times are programmed (arrows are visible)
Group II, no switching times are set (no arrows are visible)
The basic setting (as delivered condition) is as follows:
Group I, 1st activation period, switch-on time
6.00 hrs, switch-off time 22.00 hrs. The activation
periods 2 to 4 are not set.
Group II, the four activation periods are not set.
26
