Abridged operating instructions
for system users

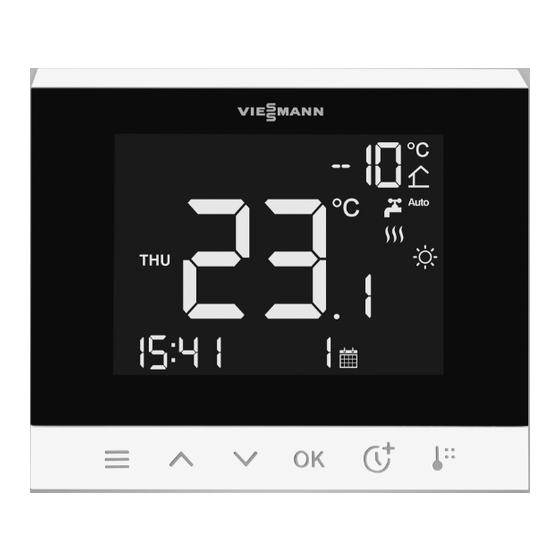

Vitotrol 100-EH
Wireless remote control for 1 heating circuit/cooling circuit
Safety instructions
Please follow these safety
instructions closely to prevent
accidents and material losses.
Safety instructions explained
Danger
This symbol warns against the risk
of injury.
Target group
These instructions are intended for sys-
tem users.
This appliance can also be operated by
children aged 8 and older, as well as by
individuals with reduced physical, sen-
sory or mental faculties or those lacking
in experience and knowledge, provided
such individuals are supervised or have
been instructed in the safe use of this
appliance and any risks arising from it.
Installation and adjustment
All settings and work on the device
■
must be carried out as specified in
these instructions.
Observe minimum clearances to
■
ensure reliable signal transmission.
Operation of the system
Only operate the devices inside closed
■
buildings.
Never operate devices in rooms where
■
there is a risk of explosion.
6218746 GB
8/2023
Note
Details identified by the word "Note"
contain additional information.
Danger
Wireless signals can interfere with
electronic medical devices,
particularly pacemakers, hearing
aids and defibrillators.
If any such equipment is fitted,
users should avoid being in the
immediate vicinity of operational
wireless components.
VIESMANN
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Viessmann Vitotrol 100-EH
Summary of Contents for Viessmann Vitotrol 100-EH
- Page 1 VIESMANN Abridged operating instructions for system users Vitotrol 100-EH Wireless remote control for 1 heating circuit/cooling circuit Safety instructions Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained Danger Note This symbol warns against the risk Details identified by the word "Note"...
-
Page 2: Safety Instructions
– After a restart, check the status of the ■ wireless components. Auxiliary components and individual parts For replacement, use only spare parts supplied or approved by Viessmann. Overview of controls Fig. 1 Operating buttons Current outside temperature Current time... -
Page 3: Overview Of Controls
Symbols on the display General symbols "Extend time phase once" is active. Low power radio connection to the Viessmann DHW is heated according to the time program. appliance has been established. DHW heating is permanently off. "Lock out controls" (child lock) is active. - Page 4 Settings menu Note Depending on the equipment level of your system, not all of the settings and checks listed may be available. Settings Meaning MODE Operating program HEATING Heating COOLING Cooling AUTO Heating/cooling STANDBY Standby mode with frost protection SCHEDULE Time program for room heating TIME DATE Time and date...
-
Page 5: Time Programs
Time programs (cont.) Time program for room heating Different temperature levels with adjustable room tem- Factory setting: peratures are active within and outside these time pha- ■ One time phase with temperature level "NORMAL" ses: from 06:00 to 22:00 for all weekdays to 20 °C ■... - Page 6 Time programs (cont.) Time program for DHW heating Factory setting: ■ 05:00 to 22:00 to 50 °C for "DHW" 3. OK to confirm for "DHW SCHED" 5. OK to confirm for a group of days or a single day 2. OK to confirm DHW START Set the beginning of the first time phase: to set the hour.
- Page 8 Viessmann Climate Solutions SE Viessmann Limited 35108 Allendorf / Germany Hortonwood 30, Telford Telephone: +49 6452 70-0 Shropshire, TF1 7YP, GB Fax: +49 6452 70-2780 Telephone: +44 1952 675000 www.viessmann.com Fax: +44 1952 675040 E-mail: info-uk@viessmann.com...
