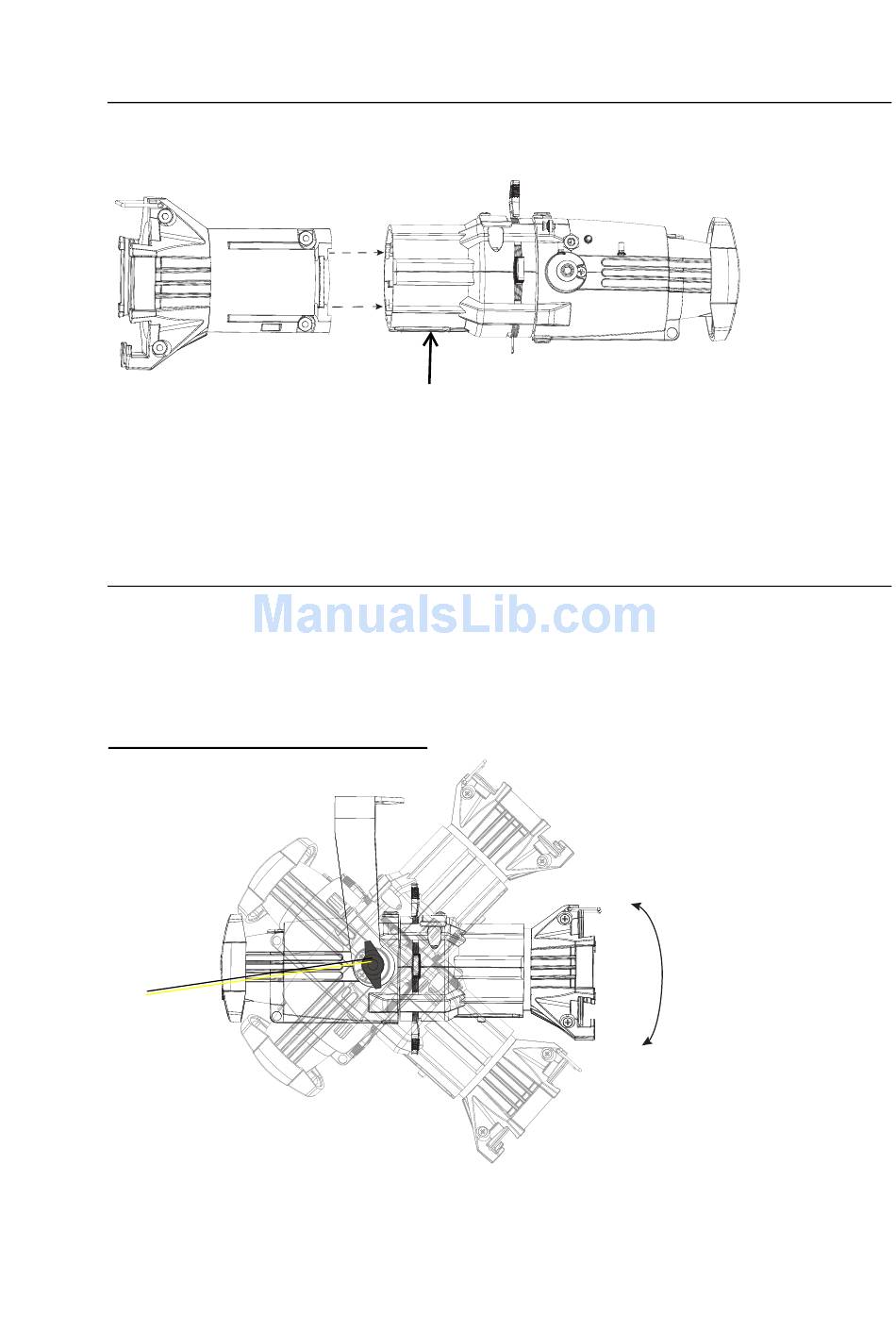

I n s t a l l L e n s Tub e
A lens tube must be installed prior to use of the Source Four Mini. There are four
lens tubes available; 19°, 26°, 36°, and 50°.
Step 1:
Step 2:
Step 3:
A d j u s t m e n t s

Adjusting the yoke position

The Source Four Mini provides multi-positioning capabilities within its yoke for
overall luminaire angle.
S e t t i n g t h e a n g l e w i t h t h e y o k e
Yoke locking
knob
Step 1:
Step 2:
Step 3:
4
Beam focus knob
Unscrew the beam focus knob from the loose lens tube.
Slide the lens tube into the shutter barrel.
Install the beam focus knob.
Loosen the yoke locking knob. Do not remove the knob.
Tilt the luminaire to the desired position.
Tighten the yoke locking knob to secure position.
