ETC Source Four Revolution Rotating Wheel Module Quick Manual

E T C Q u i c k G u i d e
®
®
Source Four
O v e r v i e w
The Rotating Wheel Module contains a wheel with three rotating/indexing positions for
static M-size steel or glass gobos or dichroic color filters and an open position.

Install a gobo/filter:

Step 1:
C A U T I O N :
Step 2:
1
Rotating Wheel Module
Americas 3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA
Europe Unit 5, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK
Asia Room 605-606, Tower III Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong
Web: www.etcconnect.com
Service: service@etcconnect.com
7160M1330 Rev A Released 02/2004
Rotating Wheel Module Quick Guide
Revolution™ Rotating Wheel Module
If module is currently installed:
a: Power-down the fixture by moving the power switch to the "off" position.

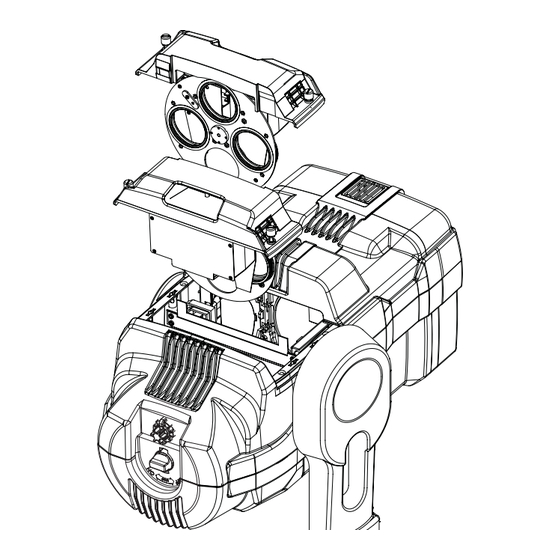

b: Remove the module from the fixture by loosening the two retaining screws and
pulling the module straight out of the head.
Screws securing the modules, and the wheels themselves, may be hot if the fixture
has recently been lit. Allow the module to cool before installing gobos or filters.
Remove the spring securing the gobo/filter you want to replace or install. Use the
diagram below to determine the frame numbers on the wheel. The Rotating
Wheel Module has two magnets, one for calibrating the wheel position, and one
for calibrating the index position of the frames (found in the alignment hole of
frame #3).
Magnets
Open
(0)
3
2
Detail: gobo installed
Email: (US) mail@etcconnect.com
Toll free: 800 775 4382 Comments about this document:
Copyright © 2004 Electronic Theatre Controls, Inc. All Rights Reserved. Product information and specifications subject to change.
Page 1 of 2
Alignment Hole
Tel: +1 608 831 4116
Tel: +44 (0)20 8896 1000
(UK) mail@etceurope.com (Asia) mail@etcasia.com
techcomm@etcconnect.com
M-Size Gobo
800 688 4116 Fax: +1 608 836 1736
Fax: +44 (0)20 8896 2000
Tel: +852 2799 1220 Fax: +852 2799 9325
Electronic Theatre Controls, Inc.
Spring
800 555 8912
