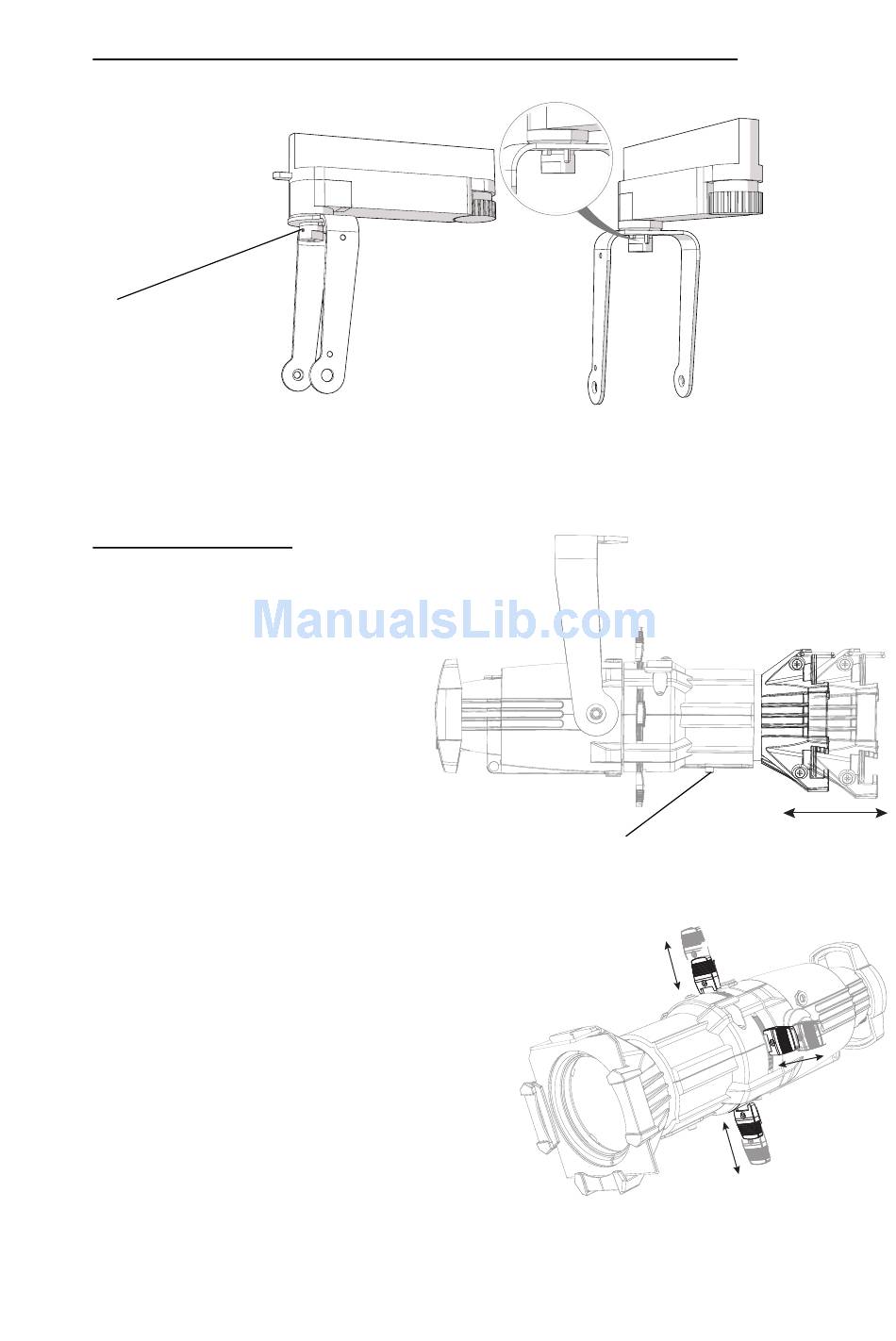

L o c k i n g th e r o t a ti o n i n t h e c a n o p y a n d t r a c k - m o u n t v a r i a t i o n s
Yoke lock
Step 1: Rotate the luminaire into the desired position. Luminaire will be
prevented from rotating completely around to protect the wiring.
Step 2: Insert a 1.5mm Allen wrench into the small hole on the yoke lock.
Step 3: Turn wrench to tighten down the yoke lock.
F oc u s i n g t h e b e a m
Step 1: Loosen the beam
focus knob located
under the barrel. Do
not remove the knob.
Step 2: Slide the lens tube
forward or backward to
achieve the desired
beam edge.
Step 3: Once the luminaire is
focused, tighten the
beam focus knob.

Shaping the Beam

The beam can be shaped using
the four shutters or with a gobo pattern.
The Source Four Mini has four shutters:
left, right, top, and bottom. Each shutter
can be pulled out or pushed in to create
the desired beam shape.
Beam focus knob
5
