Installation Instructions - Logs
Note: This installation must be performed by a qualified installer, service agency or gas supplier.
This Addendum revises the installation of the logs in
the Installation and Owner's Manual supplied with the
Valor heater models 738JL and 739JL.
This document replaces pages 24‑25 of the 738JL
manual and pages 26‑27 of the 739JL manual.
Ceramic Logs Installation (738JL and 739JL)
Unpack the ceramic logs very carefully to avoid damaging the fragile material. Install the logs as shown below.
Please note that the position of the logs is critical to ensure proper performance of the appliance.

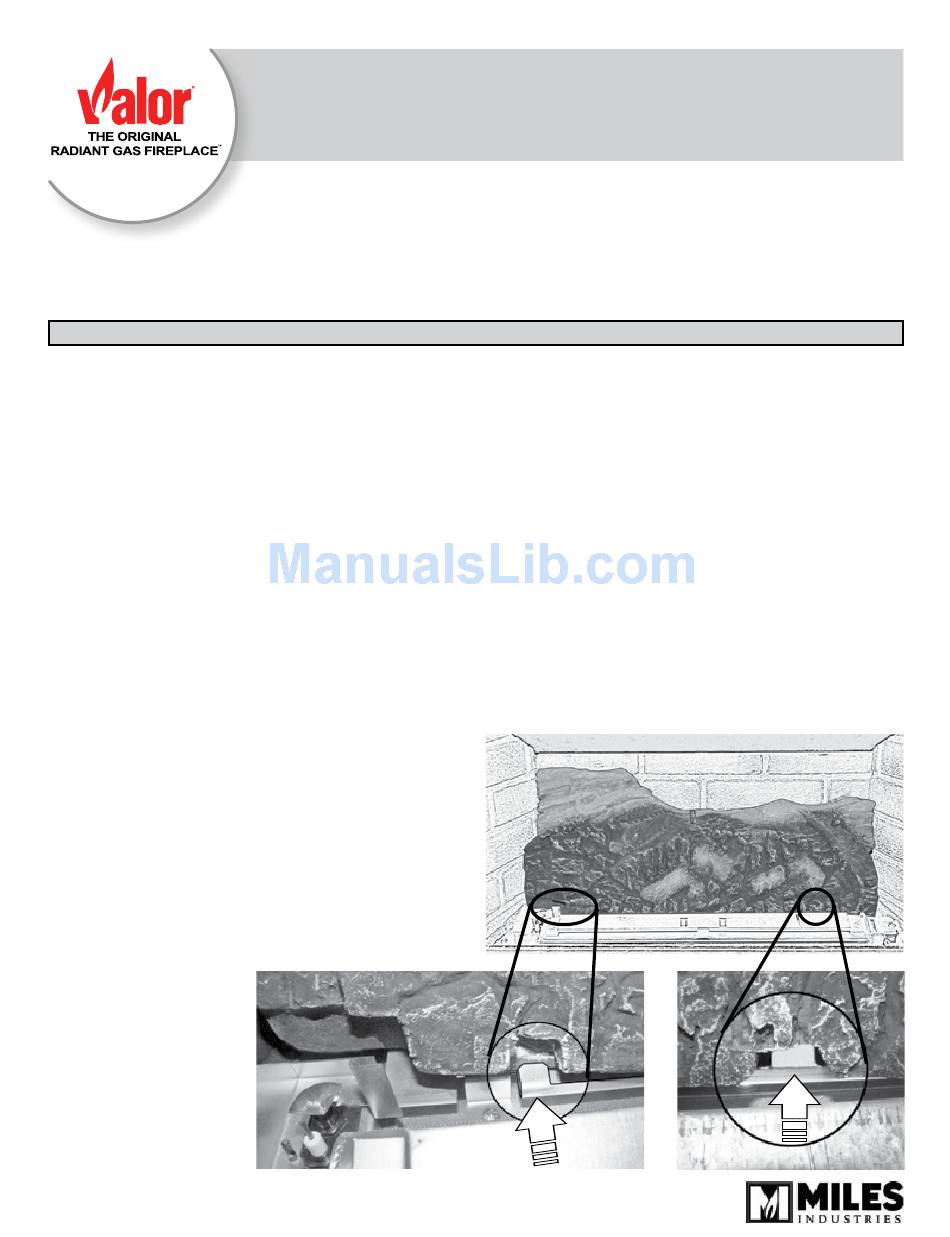

1. Place the rear log on the sheet metal support
aligning its notches at the bottom with the tabs on
the sheet metal support. Pull the log's right‑hand
side forward until the notch at the bottom right of
the log sits against front edge of the right‑hand
metal tab as indicated. Pull the left‑hand side until
its notch at the bottom left sits against the bent
metal tab. Ensure log is not sitting on top of the tab.
NOTE: The log will be slightly angled backward
behind the burner on the left-hand side as
shown.
© Copyright Miles Industries Ltd., 2013
Addendum
For Valor heaters Legend G3, models 738JL and 739JL
Installation
Use the installation manual to install the appliance.
Once you have fitted the ceramic walls, proceed with
the installation of the logs as shown below instead of
following the installation manual.
After installing the logs, continue the installation as
indicated in the manual.
