Valor G3.5 Series Installation Manual

INSTALLATION MANUAL
717BPBF Three-sided Flat Backing Plate Kit
CSA approved for use with Valor G3.5 700M Heater Models
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
The 717BPBF 3-Sided Flat Backing Plate is intended to be used with the 716 and 721 Edgemont trim kits, to be
installed on a Valor heater model 700M.
Note: The cavity dimensions required for this kit are different than those of the floating backing plate kits.
See required Cavity Dimensions below.

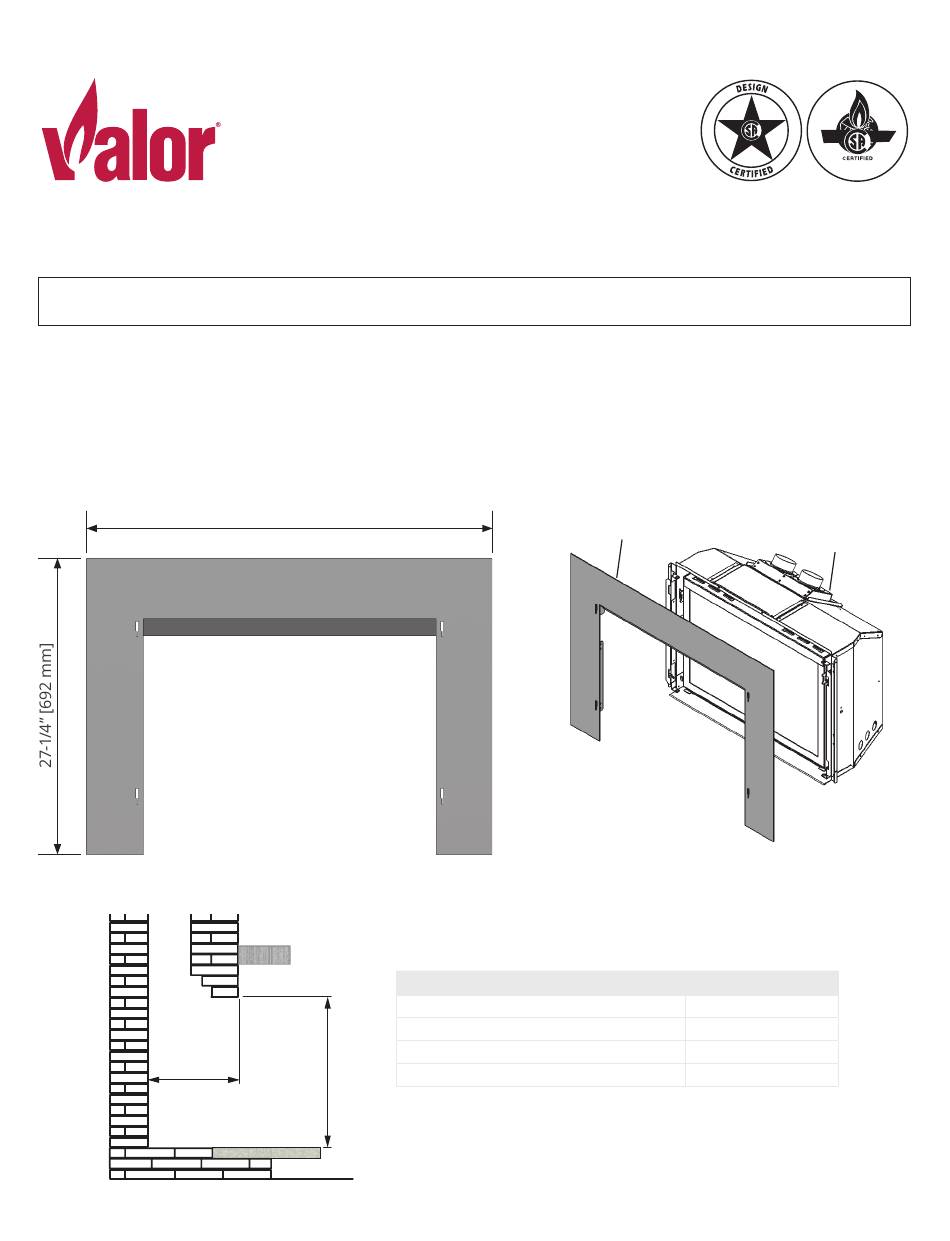

Dimensions
Cavity Dimensions
X
4008410-01
© Copyright Miles Industries Ltd., 2020
G3.5 Series
37-3/8" [949 mm]
Minimum Dimension
Depth (X)
Depth with optional fan kit (X)
Height (Y)
Width (not shown)
Y
Overview
717BPBF Backing Plate
14-1/2" [368 mm]
17-1/2" [445 mm]
22-3/8" [521 mm]
30-7/8" [784 mm]
700 Engine
1
