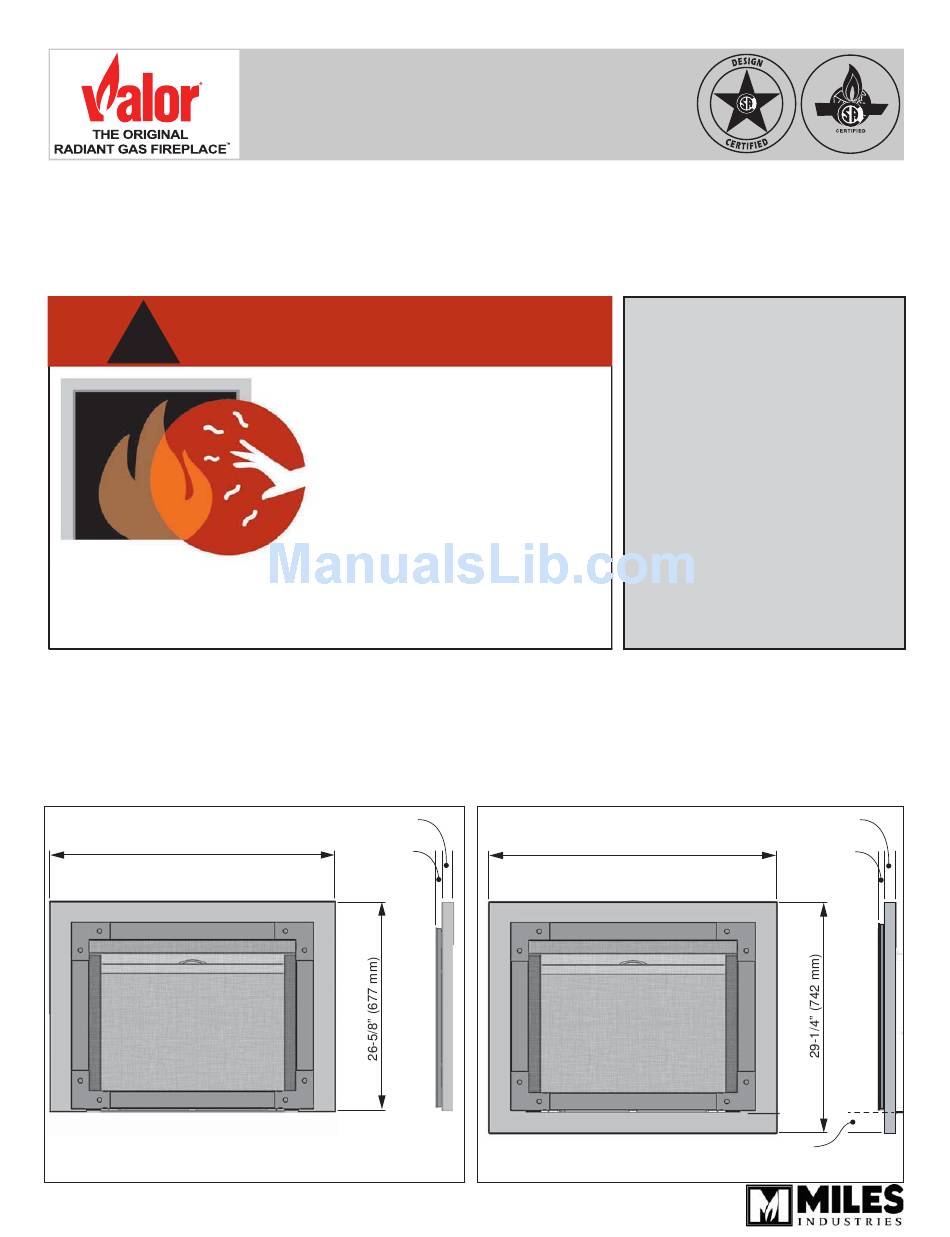

Valor 716EHC Installation Instructions Manual

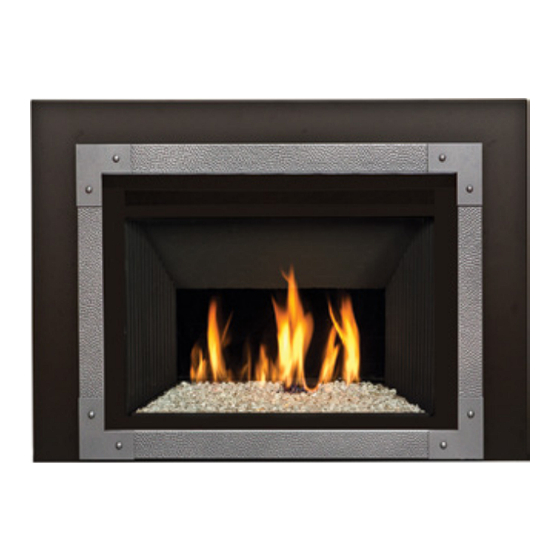

716 Edgemont Hammered Trim Kit
for 716EHC, EHV, EHOZ, 717BPB and 719BPB kits
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and shall be
installed for the protection of children and other at-risk
individuals.
The 716 Edgemont Hammerered Trim Kit is intended
to be used with the Backing Plate 717BPB or 719BPB
installed on the Valor heater model 700.
The 716 fi tted with the 717 backing plate can also be
installed with an additional backing plate 710BPB or
714BPB as well as a riser trim 725RT or 793RT to
cover larger cavity opening.
36-1/4" (922 mm)
716EH with 717BPB—
3-sided Backing Plate
4005661-02
© Copyright Miles Industries Ltd., 2016
L
EGEND
Use with Valor 700 Models only
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
1-1/2"
(38 mm)
1/2"
(13 mm)
G3.5
Leave this manual
with the appliance.
Retain this manual
for future reference.
Please note the appliance will have to be raised by
!
2-5/8" when using the 719BPB 4-Sided Backing Plate
as the plate extends below the bottom of appliance.
Mounting of the 716 does not affect clearances or other
specifi cations listed in the heater installation manuals—
see installation manual supplied with the heater for
more information.
36-5/16" (922 mm)
716EH with 719BPB—
4-sided Backing Plate
IN STA LLER
C ON SUM ER
1-1/2"
(38 mm)
1/2"
(13 mm)
! 2-5/8" (67 mm)
between bottom of trim
and bottom of appliance
