INSTALLATION INSTRUCTIONS
G3 Series
Oversize Closure Plates 750OCP / 750OVI
Used with 746 / 747 Contour 3-Sided Trims on Valor 738/739 appliances

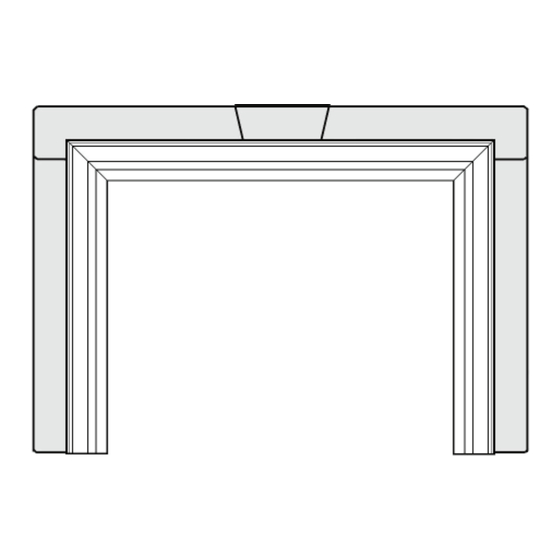

The 750 Oversize Closure Plates consist of a set of flat sheet metal panels used to extend the perimeter size of the 746
or 747 extruded aluminum trims where necessary to cover larger fireplace openings. When fitted to the 746 o 747, the
750 trim pieces add coverage of 1-1/4" or 2-3/4" at the sides or top.

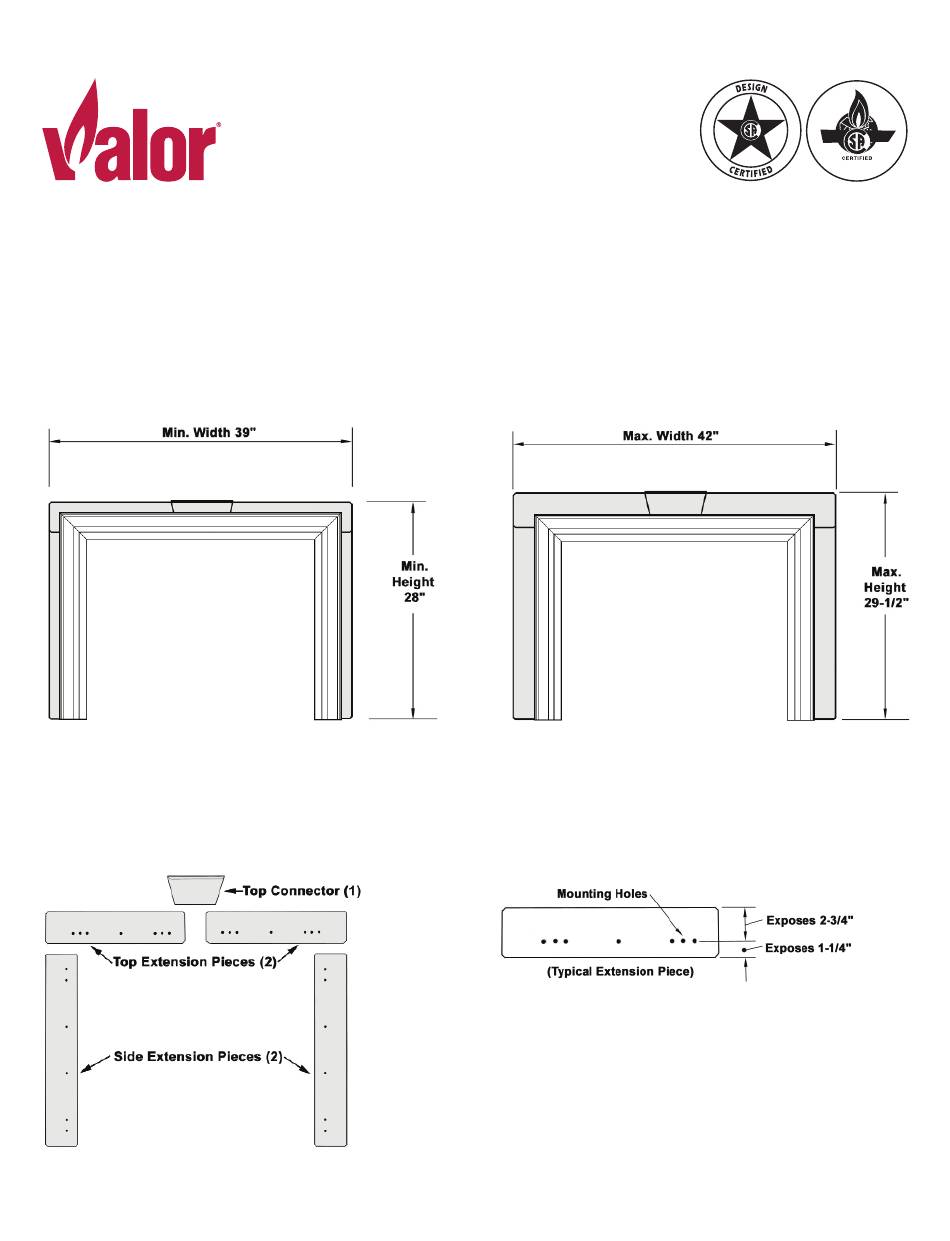

Overall Dimensions
The top or side pieces may also be installed having different exposires or they may be installed independently to
extend just the top or sides. The 750 may also be used in conjunction with the 751LTK Lift Trim Kit and 752BTK Base
Trim Kit where additional height is required. See separate instructions and spec sheets for details.
Kit Contents
Choice of Exposures
4000247-04
© Copyright Miles Industries Ltd., 2020
Advertisement
Related Manuals for Valor G3 Series
Summary of Contents for Valor G3 Series
- Page 1 Oversize Closure Plates 750OCP / 750OVI Used with 746 / 747 Contour 3-Sided Trims on Valor 738/739 appliances The 750 Oversize Closure Plates consist of a set of flat sheet metal panels used to extend the perimeter size of the 746 or 747 extruded aluminum trims where necessary to cover larger fireplace openings.
- Page 2 Installation To assemble a 746 or a 747 trim, see instructions supplied with the trim. To install the 750 plate, align the side panels, top panels and top connector to the back of the trim and fix them with screws. Do not place screws in end holes at this time Flush at ends...
- Page 3 Série G3 Plaques d’extension 750OCP / 750OVI Utilisez avec Bordures à 3 côtés 746 ou 747 sur foyers Valor 738 et 739 La Plaque d’extension 750 consiste en un ensemble de panneaux de métal conçus pour augmenter le périmètre de couverture des bordures d’aluminium 746 ou 747 pour couvrir de très grands âtres.
- Page 4 Installation Pour assembler les bordures 746 ou 747, voir le guide d’installation fourni avec la bordure. Pour assembler la plaque d’extension 750, alignez les sections des côtés, du dessus et la plaque de connexion et fixez- les à l’arrière de la bordure. Ne pas mettre de vis dans Alignez aux ces trous pour le moment...
