INSTALLATION INSTRUCTIONS
Four-Sided Square Trim 757STB
Used only with Valor 738, 739 or RF24B appliances fi tted with RA24ZC
37-1/2"
757 Square Trim
The 757 Four-Sided Square Trim is
intended to be used on any Valor G3
models 738 or 739 appliances or on a
Retrofire RF24B installed in a RA24ZC
fitted with any inner front kit.
Installation of the Square Trim does not
affect clearances*, framing dimensions or
other specifications listed in the appliance
installation manual.
*However, mantel clearances in the
installation manuals are referenced
from the bottom of appliance, not
bottom of trim—see installation manual
packed with appliance.
4001901-07
© Copyright Miles Industries Ltd., 2022
G3 Series
4"
Overview
Bottom of
appliance
4"

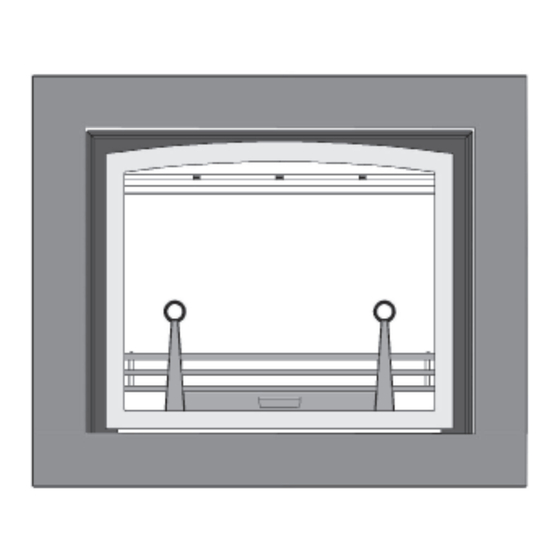

757 Square Trim shown with optional
2"
744FVI FenderFire Single Door Front
(Other fronts are available)
738 or 739 heater or
RF24B heater installed
in a RA24ZC
Advertisement
Related Manuals for Valor G3 Series
Summary of Contents for Valor G3 Series
- Page 1 INSTALLATION INSTRUCTIONS G3 Series Four-Sided Square Trim 757STB Used only with Valor 738, 739 or RF24B appliances fi tted with RA24ZC Bottom of 4” appliance 4” 37-1/2” 757 Square Trim shown with optional 2” 744FVI FenderFire Single Door Front 757 Square Trim...
- Page 2 Installation 1. Install 738 or 739 engine as per instructions supplied with engine. Install RF24B engine and RA24ZC zero clearance box as per instructions supplied with each. 2. Install 2 mounting brackets (supplied with heater or ZC kit) to the back of the square trim using the machine screws provided.
- Page 3 GUIDE D’INSTALLATION Série G3 Bordure angulaire à 4 côtés 757STB Utilisez seulement avec les foyers Valor 738, 739 ou RF24B lorsqu’installé dans la Caisse à dégagement zéro RA24ZC 4” Bas de [102 mm] l’appareil 4” [102 mm] 37-1/2” [953 mm] Bordure angulaire 757 montrée avec...
- Page 4 Installation 1. Installez le foyer 738 ou 739 selon le guide d’installation fourni avec le foyer. Installez le RF24B et RA24ZC selon les guides d’installation fournis avec le foyer et la Caisse à dégagement zéro. 2. Fixez les 2 supports de montage (fournis avec le foyer ou la caisse ZC) à...
