Valor G3 Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS

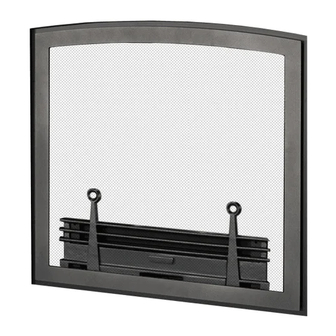

FenderFire Single Door Front 744FVI
Approved for use with Valor models 738/739 and
RF24B heaters fi tted with RA24ZC ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
The 744FVI FenderFire Single Door Front
is designed to be used along with an outer
surround trim (supplied separately).
The Single Door Front fits within the outer
surround trim and clips onto the standard
mounting brackets supplied with the 738/739
heaters or the RA24ZC Zero Clearance Kit.
The Single Door Front is compatible with all
outer surround trims and cast iron surrounds
available for use with the 738/739 heaters and
the RF24B heater fitted with the RA24ZC kit.
For the double door version of the FenderFire
front, refer to the 743FVI FenderFire install
instructions.
4000628-09
© Copyright Miles Industries Ltd., 2020
G3 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Clip-on window trim
Screen Door
(drop onto
hinge pins)
Overview (Heater and Outer Surround Trim sold separately)
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier.
These instructions are to be
used in conjunction with the
main installation instructions
for the above listed heater
model.
(clips on appliance below
draft hood) (discard for
Outer Surround Trim
supplied separately
(drops into place)
Magnet
Mounting Brackets
supplied with
Clearance Kit
(clips onto brackets)
