Valor G3 Series Installation Instructions Manual

INSTALLATION INSTRUCTIONS
FenderFire Double Door Front 743FVI
Approved for use with Valor models 738/739 and
RF24B heaters fi tted with RA24ZC ONLY
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.

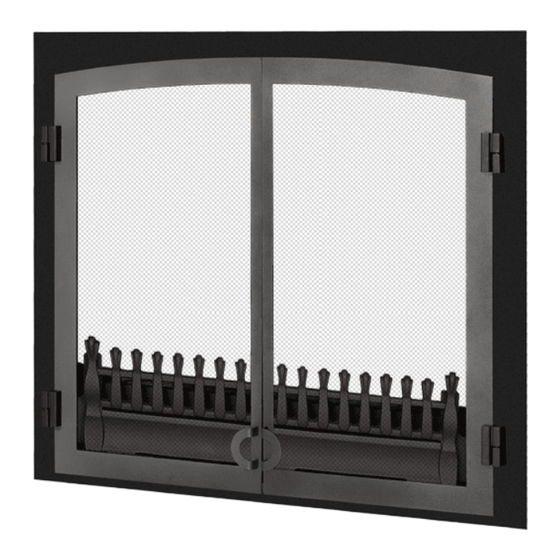

The 743FVI FenderFire Double Doors
Front is designed to be used along with
an outer surround trim (supplied sepa-
rately).
The Double Doors Front fits within the
outer surround trim and clips onto the
standard mounting brackets supplied
with the 738/739 heaters or the RA24ZC
Zero Clearance Kit.
The Double Doors Front is compatible
with all outer surround trims and cast
iron surrounds available for use with the
738/739 heaters and the RF24B heater
fitted with the RA24ZC kit.
For the single door version of the
FenderFire front, refer to the 744FVI
FenderFire Single Door Front install
instructions.
4000627-12
© Copyright Miles Industries Ltd., 2020
G3 Series
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
Extension Baffle - 738 BV Only
(clips on heater below draft hood)
Hinge Pin & Spacer (4)
(bolt onto frame)
Hinges (4) Bolt on
2-L/H
2-R/H
Overview (Heater and Outer Surround Trim sold separately)
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier.
These instructions are to be
used in conjunction with the
main installation instructions
for the above listed heater
model.
Outer Surround Trim
Supplied Separately
Bottom Frame, bolted on
Cast Iron Fender
(drops into place)
Screened Doors
(drop onto hinge pins)
FenderFire Frame
(clips onto heater brackets)
Magnet & Bracket
(bolts into place)
