Valor 751LTK Installation Instructions

Lift trim kit must be used with model 752btk base trim kit (sold separately)

Available languages

MUST be used with model 752BTK Base Trim Kit (sold separately)

Note: This kit must be installed or serviced by a qualified installer, service agency or gas supplier. These

instructions are to be used in conjunction with the main installation instructions for the above listed models.

Kit contents

Because our policy is one of constant development and improvement, details may vary slightly from those given in

this publication.

190 – 2255 Dollarton Highway, North Vancouver B.C., CANADA V7H 3B1

Tel. (604) 984-3496 Fax (604) 984-0246

4000250-03

#751LTK

Lift Trim Kit

INSTALLATION INSTRUCTIONS

Designed and Manufactured by / for Miles Industries Ltd.

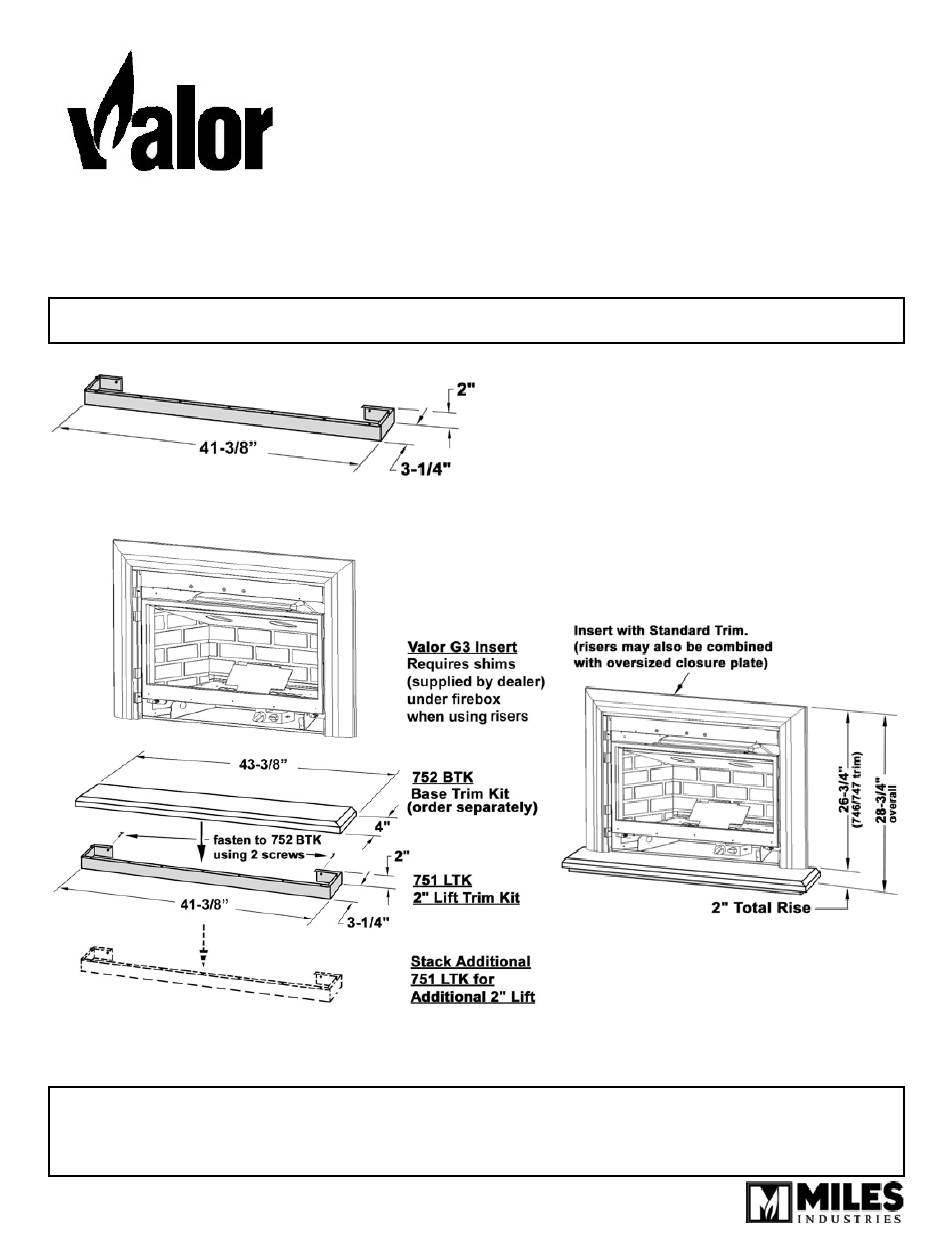

The Model 751LTK is a 2" high black sheet metal wrap

around riser that fits within the 752BTK Base Trim Kit

to make a finished riser with an overall height of 2". The

751LTK can not be installed on it's own and requires a

752BTK Base Trim to complete. Additional 751LTK's can

be fastened together in 2" increments to make higher

risers. The Riser and Base Trim may also be used with

the 750OCP Oversized Closure Plate. The recessed

portion of the insert firebox will require shimming

(supplied by dealer) to match the height of the riser.

(The G3 Insert is approved for shimming constructed of

combustible material.)

www.milesfireplaces.com

Table of Contents

Do you have a question about the 751LTK and is the answer not in the manual?

Page 1 Note: This kit must be installed or serviced by a qualified installer, service agency or gas supplier. These instructions are to be used in conjunction with the main installation instructions for the above listed models. The Model 751LTK is a 2” high black sheet metal wrap around riser that fits within the 752BTK Base Trim Kit to make a finished riser with an overall height of 2”.
Page 2 Note : Ce kit doit être installé et entretenu par un installateur qualifié, une agence de service certifiée ou un fournisseur de gaz. Le 751LTK est une pièce de métal noir qui s’attache à la base 752BTK pour la soulever de 2”. Le 751LTK ne peut être installé...
