WARNING
!
A barrier designed to reduce the risk of burns from the hot viewing
glass is provided with this appliance and shall be installed
for the protection of children and other at-risk individuals.
The 709 Floating trim is intended to be used on Valor heater model 700. Mounting of the 709 does not affect
clearances or other specifi cations listed in the heater installation manuals—see installation manual supplied with the
heater for more information.
Compatible with
•
710 Backing plate (37-3/4" w x 26-7/8" h)
•
714 Backing plate (42" w x 29" h)

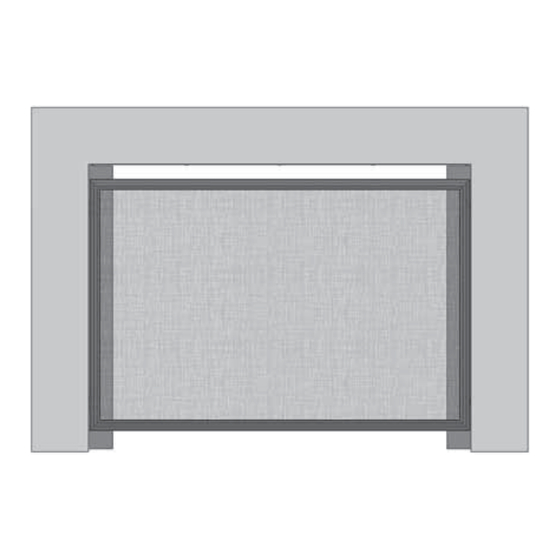

33-3/4" (857 mm)
coverage
Overall trim slightly larger
4003400-04
© Copyright Miles Industries Ltd., 2013
L
EGEND
709 Floating Trim Kit
Use with Valor 700 Models only
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
G3.5
Leave this manual
with the appliance.
Retain this manual
for future reference.
700 engine
Overview
I NSTALLER
CO N SU MER
Advertisement
Related Manuals for Valor LEGEND G3.5
Summary of Contents for Valor LEGEND G3.5
-
Page 1: Installation Instructions
Compatible with 700 engine • 710 Backing plate (37-3/4” w x 26-7/8” h) • 714 Backing plate (42” w x 29” h) 33-3/4” (857 mm) coverage Overview Overall trim slightly larger 4003400-04 © Copyright Miles Industries Ltd., 2013... -
Page 2: Installation
Installation 6. Hook the barrier screen to the back of the front. Orient the screen so its tabs are on the back. 1. Identify the left and right panels using the image Note: The barrier screen, when hooked to the below. -
Page 3: Maintenance
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. -
Page 4: Directives D'installation
C ON SO MMAT E U R : Conservez cette notice pour consultation ultérieure. La Bordure saillante 709 est conçue pour les foyers Valor Legend G3.5 700. L’installation de la bordure 709 n’affecte pas les dégagements et autres caractéristiques indiqués dans le guide d’installation du foyer—consultez le guide d’installation pour plus d’information. - Page 5 Installation 6. Accorchez la grille de protection sur l’arrière de la bordure. Orientez-la de façon à ce que ses 1. Identifi ez les panneaux d’accès gauche et droite à languettes de fi xation soient vers l’arrière. l’aide de l’image ci-dessous. Note : La grille de protection 2.
-
Page 6: Entretien
Parce que nous favorisons une politique de développement continu, certains détails de la présente publication peuvent varier. Conçue et fabriquée par / pour Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1 Tél. 604-984-3496 Téléc. 604-984-0246...
