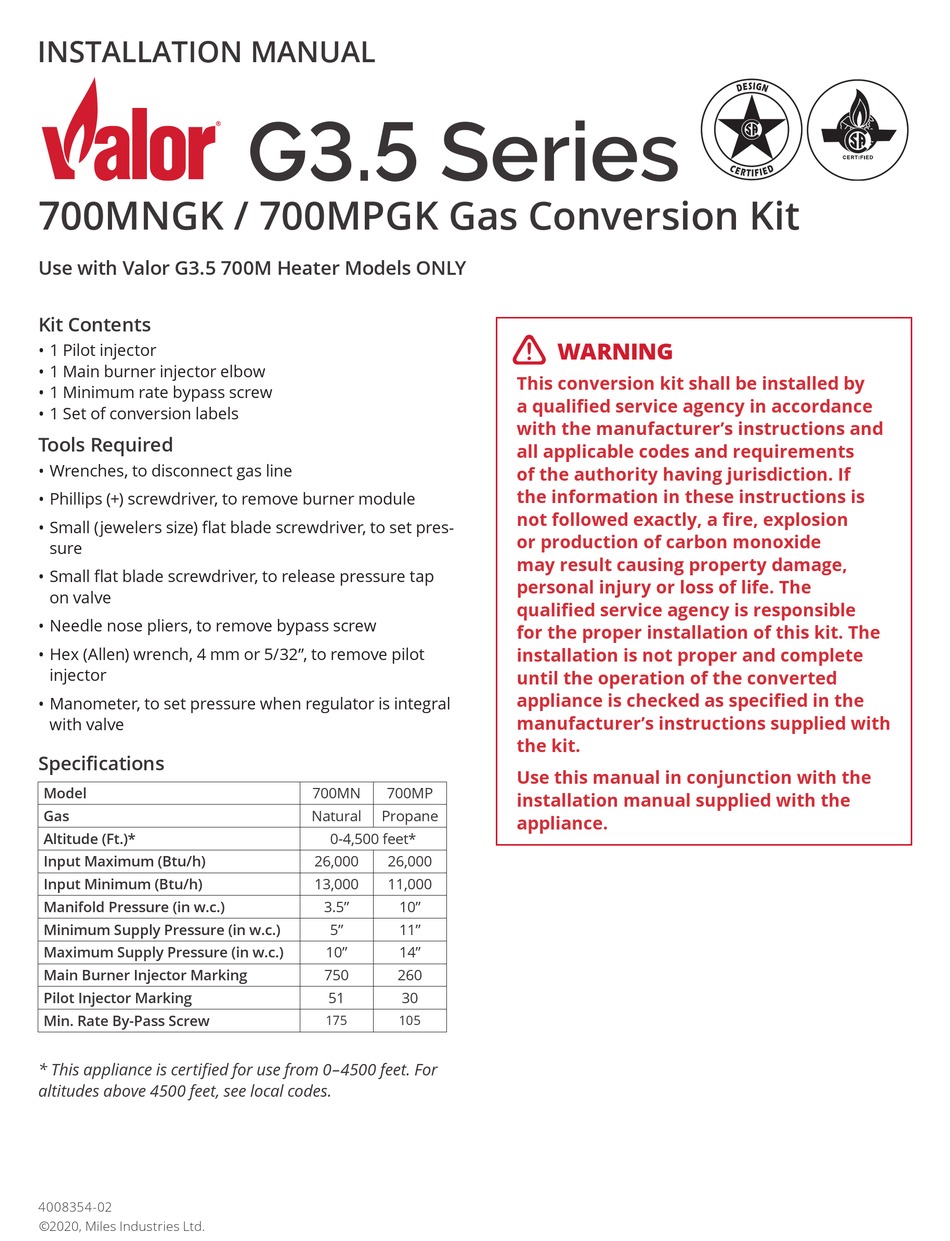

INSTALLATION MANUAL
700MNGK / 700MPGK Gas Conversion Kit
Use with Valor G3.5 700M Heater Models ONLY
Kit Contents
• 1 Pilot injector
• 1 Main burner injector elbow
• 1 Minimum rate bypass screw
• 1 Set of conversion labels
Tools Required
• Wrenches, to disconnect gas line
• Phillips (+) screwdriver, to remove burner module
• Small (jewelers size) fl at blade screwdriver, to set pres-
sure
• Small fl at blade screwdriver, to release pressure tap
on valve
• Needle nose pliers, to remove bypass screw
• Hex (Allen) wrench, 4 mm or 5/32", to remove pilot
injector
• Manometer, to set pressure when regulator is integral
with valve
Specifi cations
Model
Gas
Altitude (Ft.)*
Input Maximum (Btu/h)
Input Minimum (Btu/h)
Manifold Pressure (in w.c.)
Minimum Supply Pressure (in w.c.)
Maximum Supply Pressure (in w.c.)
Main Burner Injector Marking
Pilot Injector Marking
Min. Rate By-Pass Screw
* This appliance is certifi ed for use from 0–4500 feet. For
altitudes above 4500 feet, see local codes.
4008354-02
©2020, Miles Industries Ltd.
G3.5 Series
700MN
700MP
Natural
Propane
0-4,500 feet*
26,000
26,000
13,000
11,000
3.5"
10"
5"
11"
10"
14"
750
260
51
30
175
105
 WARNING
This conversion kit shall be installed by
a qualifi ed service agency in accordance
with the manufacturer's instructions and
all applicable codes and requirements
of the authority having jurisdiction. If
the information in these instructions is
not followed exactly, a fi re, explosion
or production of carbon monoxide
may result causing property damage,
personal injury or loss of life. The
qualifi ed service agency is responsible
for the proper installation of this kit. The
installation is not proper and complete
until the operation of the converted
appliance is checked as specifi ed in the
manufacturer's instructions supplied with
the kit.
Use this manual in conjunction with the
installation manual supplied with the
appliance.

Advertisement

loading

Summary of Contents for Valor G3.5 Series

  • Page 1 INSTALLATION MANUAL G3.5 Series 700MNGK / 700MPGK Gas Conversion Kit Use with Valor G3.5 700M Heater Models ONLY Kit Contents  WARNING • 1 Pilot injector • 1 Main burner injector elbow This conversion kit shall be installed by • 1 Minimum rate bypass screw a qualifi...
  • Page 2: Prepare The Appliance

    General Notes Regarding Conversion 5. Remove left shroud (2 screws). The conversion may be done before or after the appliance is installed into the cavity. However, if the unit has been installed, it must be removed from the cavity (see below). Also, the gas must be connected to set the manifold pressure.
  • Page 3 Replace Burner Injector 6. Replace the burner. The stem on the end of the air shutter must mate with the vertical slot in the link 1. Undo burner supports (4 screws). bracket. No nut is required. 7. Connect the fuel supply line and tighten the nut. The 2.
  • Page 4: Adjust The Air Shutter

    Adjust the Air Shutter 2. Unscrew the pilot injector using an Allen key. Dis- card the old pilot injector. The air shutter lever is located on the front left side of the fi replace, and is accessible from front once the 3.
  • Page 5 Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication. Designed and Manufactured by / for Miles Industries Ltd. 190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1 Tel. 604-984-3496 Fax 604-984-0246 www.valorfi replaces.com...
  • Page 6: Guide D'installation

    GUIDE D’INSTALLATION Série G3.5 Trousse de conversion de gaz 700MNGK / 700MPGK Utilisez avec les foyers Valor G3.5 700M SEULEMENT Cet appareil est homologué pour utilisation de 0 à  AVERTISSEMENT 4 500 pieds. Pour altitudes au-dessus de 4 500 pieds, consultez la règlementation locale.
  • Page 7 À propos de la conversion 5. Enlevez le support de devanture/bordure gauche (2 vis). La conversion d’un gaz à l’autre peut être faite avant ou après l’installation de l’appareil dans la cavité. Cependant, si l’appareil a déjà été installé, il devra être sorti de la cavité...
  • Page 8 Remplacez l’injecteur du brûleur 6. Replacez le brûleur. La tige sur l’obturateur doit être insérée dans la fente du support de liaison.. 1. Enlevez les vis retenant le brûleur à sa plaque (4 vis). 7. Rebranchez l’injecteur à la conduite de gaz. Serrez l’écrou.
  • Page 9 Ajustez l’obturateur d’air Remplacez l’injecteur de veilleuse Le levier de l’obturateur est situé en bas à gauche, 1. Écartez légèrement le fi l en U puis tirez vers le haut à l’extérieur de la boîte de foyer. Il est accessible de sur le capuchon de la veilleuse pour l’enlever.
  • Page 10 2. Insérez la vis de remplacement fournie avec le kit 3. Réglez la vis d’ajustement de pression sur la sou- et serrez-la à la main avec un tournevis. Consultez pape à l’aide d’un petit tournevis à lame—tel les Spécifi cations à la page 6. Le numéro de la vis est qu’indiqué...
