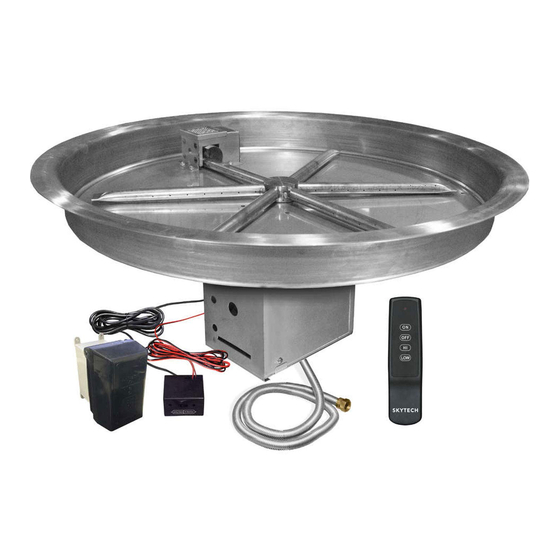

- Page 1 MH#60069 MODELS Natural Gas Description Propane FPB-19RBSTFS-N FPB-19RBSTFS-P 19” Round Stainless Pan & Spur Kit FPB-25RBSTFS-N 25” Round Stainless Pan & Spur Kit FPB-25RBSTFS-P FPB-29RBSTFS-N FPB-29RBSTFS-P 29” Round Stainless Pan & Spur Kit FPB-33RBSTFS-N FPB-33RBSTFS-P 33” Round Stainless Pan & Spur Kit...
- Page 2 CARBON MONOXIDE HAZZARD DANGER This appliance can produce carbon monoxide which has no odor. Using it in an enclosed area can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home. DANGER WARNING Do not store our use gasoline or other If you smell gas:...
-
Page 3: Table Of Contents
CALIFORNIA PROPOSITION 65 WARNING This product is designed to operate with one of the following fuel sources: Liquid Propane or Natural Gas. The fuel used to operate this product, and the products of combustion of such fuel, can expose you to chemicals including Benzene which is known to the State of California to cause cancer, birth defects and other reproductive harm and Carbon Monoxide which is known to the State of California to cause birth defects or other reproductive harm. - Page 4 Level Wall Install Opening Ceiling ¾ ¼” ” FPB-19RBSTFS-N FPB-19RBSTFS-P 19” 18” 16” 54” 18” ” - 21 ¾ ¼”- ” FPB-25RBSTFS-N FPB-25RBSTFS-P 25” 18” 19” 69” 18” ” ¾ ¼ ¼” FPB-29RBSTFS-N FPB-29RBSTFS-P 29” 18” 19” 69” 18” ”...
-
Page 5: Gas Pipe Sizing Chart
REFERENCE GAS PIPE SIZING CHART GAS PIPE SIZING NATURAL GAS : PIPE SIZING CHART Length of Pipe in Feet 1/2” 3/4” 1” 1 - 1/4” 1 - 1/2” 2” 2 - 2 1/2” 3” 4” • Natural Gas (NG) flow is given in 1237 2259 3640... -
Page 6: Preparation For Non-Combustible Structure
Examples of Cross Ventilation rain, snow, wind, heat or cold. A minimum of 18 square inches of cross ventilation (2 sides) is required to keep the 2- Firegear 6 x12 vents components in good working order. Use figure 3 as guide Fire Pit... -
Page 7: Installation Into An Approved Enclosure
INSTALLATION OF FIRE PIT INTO AN APPROVED ENCLOSURE REQUIREMENTS Only non-combustible materials should come in direct contact with any part of the fire pit. Underneath area should be non- combustible or a flat level combustible surface according to the clearances specified in this manual. Refer to the NFPA54 (National Fuel Gas Code) for proper pipe sizing (See Table 4, page 5). -
Page 8: Typical Installation Drawings
FINAL PREPARATIONS INSTALLATION OF BATTERY PACK It is important to locate the battery pack where it is easy to access for battery replacement and service. The best location is on the outside wall of the fire pit enclosure. A plastic junction box is provided for the installation of the battery pack and a weather-proof cover to protect it from the outside elements. -
Page 9: Installing Weatherproof Box
Weatherproof Cover/Lid Battery Pack Junction Box Cover Plate Battery Red Wire Pack Black Wire 4-PIN Connector Red Wire Black Wire Fig. 6 Weatherproof Cover/Lid Rubber Gasket Wires from Valve Box INSTALLING BATTERY PACK INTO WEATHERPROOF BOX After the weatherproof box location has been established and installed, run the black 4-PIN connector wire along with the red and black wires from the valve box into the weatherproof box. -
Page 10: Learning Remote Control To Module (Receiver)
(programmed) to the module inside the control box. Additional transmitters can be learned to this electronic module; up to a total of three transmitters are available. Contact Firegear to discuss additional transmitter options or see the accessory page of this instruction manual. -
Page 11: Gas Connection
CONNECTING GAS SUPPLY Connect the gas supply line to the bottom of the valve box with the supplied flex connector as shown in Fig. 12 below. If necessary remove the lid for greater access to the connection. Ensure you have enough flex line available to pull the fire pit out of the enclosure if needed for maintenance or service. -
Page 12: Operation
OPERATION CAUTION: Children and adults should be alerted to the hazards on high surface temperatures and should stay away to avoid burns or clothing ignition. Young children should be carefully supervised when they are in the area of the appliance. WARNING: Do not use this appliance if any part has been under water. -
Page 13: Expanded View Drawing
Expanded View of Thermocouple Flame Sense (TFS) Fire Pits Spur Burner Ignition Hood Orange ⁄ ” Washer Ignition Wire Brass Nut Flat Disc Pan OAS-NG# (1) ⁄ ” Washer (Burner Ori ce) Thermocouple & ½” Coupler Ground Wires Battery Pack Black Wire Valve Box: (Gas valve,control module... -
Page 14: Replacement Parts
FPB ROUND & SQUARE TFS REPLACEMENT PARTS PILOT ADJ PILOT MAIN POWER Drawings Are Not to Scale Requires 4-AA 1.5V alkaline batteries Slide Switch to Latching Solenoid Round & Square TFS Fire Pits REV. 1-10-19 Page 14... -
Page 15: Replacement Parts List
FPB ROUND & SQUARE TFS REPLACEMENT PARTS Qty. Item Description Part Number 19-inch Round Stainless Pan PAN-SS19R 25-inch Round Stainless Pan PAN-SS25R 29-inch Round Stainless Pan PAN-SS29R 33-inch Round Stainless Pan PAN-SS33R 20-inch Square Stainless Pan PAN-SS20S 26-inch Square Stainless Pan PAN-SS26S 32-inch Square Stainless Pan PAN-SS32S... -
Page 16: Fire Pit Maintenance
FIRE PIT MAINTENANCE 1. The fire pit should be inspected and cleaned before initial use at least annually by a qualified field service person. 2. Any component that is found faulty must be replaced with an approved component. 3. Any tampering or modifying with the fire pit is dangerous and voids all warranties. 4. - Page 17 Thermal Safety (Overheat Protection): Error Code: 4 Beeps every 2 seconds. Description of Fault: Warn users that the modules internal temperature exceeds 170°F. How to Clear: Module’s internal temperature must cool to below 160°F and then press ON button. What to Check: Ensure that there is proper ventilation to the control module.
-
Page 18: Optional Accessories
4. Ensure thermocouple is clean and free of any debris. Excessive soot can be an issue. OPTIONAL ACCESSORIES The following accessories are available from your local Firegear dealer/distributor. Each accessory comes with a separate installation manual. Read each instruction thoroughly before installing. - Page 19 L-BF (Beach Fire) 8pc (20lbs) Model: AF4000HAT L-Sedona (Sedona) 19pc (200lbs) Model: FLEXFRAME-SS 326-930 Twigs 6pc (20lbs) NOTE: See the Firegear Outdoors catalogue for a variety of fittings and flex connectors also available. (855) 498-8324 FOR TECHNICAL SERVICE, CALL: Firegear Outdoors 9230 Conservation Way...
- Page 20 Lava Rock and Lava Stones are not covered by warranty For Commercial applications, the liability of Firegear Outdoors End User must provide a bill of sale, canceled check, or payment is limited to the express terms of this warranty. We expressly...
- Page 21 NOTES Round & Square TFS Fire Pits REV. 1-10-19 Page 21...
- Page 22 Having problems getting the fire pit to operate? Don’t leave the job site! We want to help! Call 855.498.8324 for Technical Support between the hours of 8:00AM to 5:00PM EST. Text photos to 260.255.5750 or e-mail photos to support@skytechpg.com. BEFORE YOU CALL WE WILL NEED THIS INFORMATION Model Number: ___________________________ Serial Number: ___________________________ How long is the gas line run? Nat Gas ____ LP Gas ____...
