Nifty, Spiffy Diagram (Back) - Blizzard Lighting snokontrol User Manual

Number Button/Fader/Connection
1 Scanner Select Buttons
2
Scanner Indicator LEDs
3
Scene Select Buttons
4 Channel Faders
5 Program Button
6 Music/Bank Copy Button
7 LED Display
8
Mode Indicator LEDs
9 Bank Up Button
10 Bank Down Button
11 Tap Display Button
12 Blackout Button
13
Midi/ADD Button
14
Auto/Del Button
15
Chaser Buttons
16 Speed Fader
17 Fade Time Fader
18
Page Select Button
19 MIDI Input Jack
20 DMX Output Jack
21
DC Input Jack
22 USB Lamp Jack ONLY
23 Power Switch

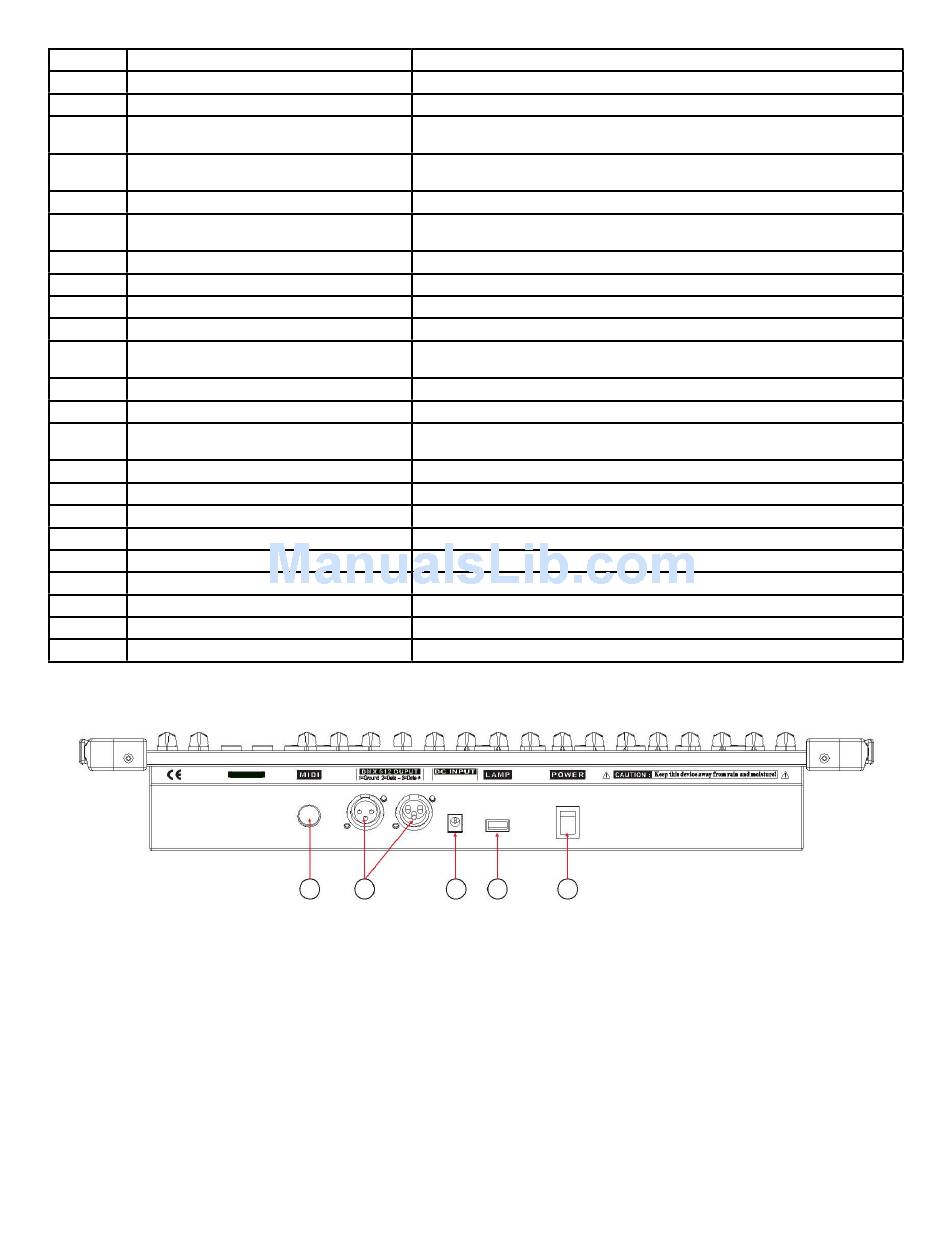

2.4 Nifty, Spiffy Diagram (back)

Does...
Fixture selection
Indicates the fixture(s) currently selected
Universal bump buttons representing scene location for storage and selec-
tion
Adjusts DMX values - Channel 1-16 may be adjusted after pressing the
respective scanner select button
Enters programming mode
Activates Music mode -or- functions as the command copy button during
programming
Displays pertinent operating data
Provides operating mode status - (manual, music or auto)
Increments scene/step in bank/chase
Decrements scene/step in bank/chase
Sets the chase speed by tapping the button -or- toggles between DMX
value and percentage
Sets the shutter/dimmer value of all fixtures to ZERO
Activates MIDI external control -or- confirms the record/save process
Activates Auto mode -or- functions as the delete button during program-
ming
Activates/accesses chase 1-6
Adjusts scene hold time or step speed within a chase
Sets the fade time between two scenes in a chase (crossfade)
Toggles between fader page A and B while in manual mode
For external triggering of banks & chases using a MIDI device
DMX signal output
Power input, DC9V @2.0A
ONLY for use with the included USB LED lamp
Turns the unit On/Off
19 20 21 22 23
SNOKONTROL Manual Rev B.
Page 7
