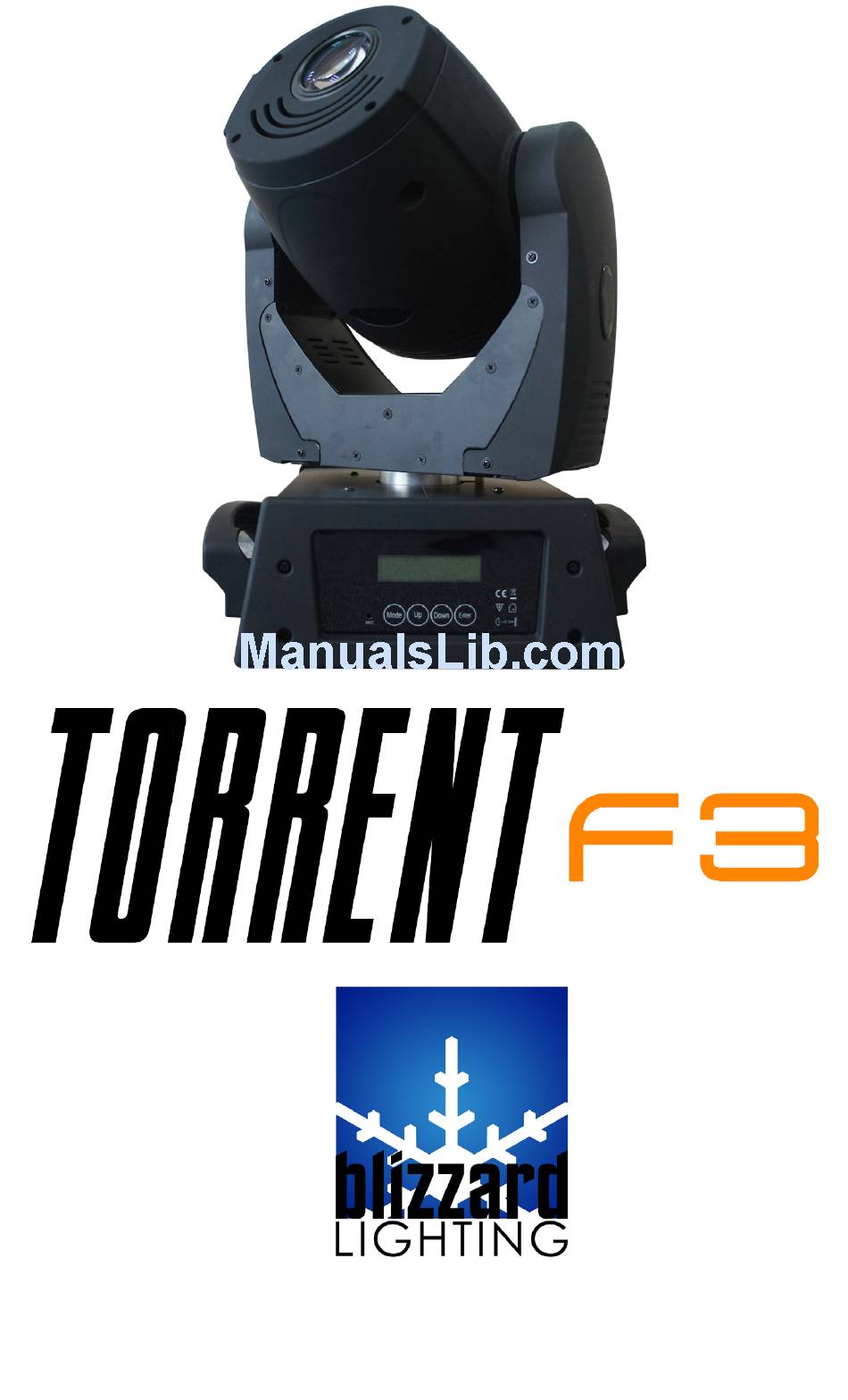

Page 1: Torrent F3™ 50W Led Moving Head Spot
Blizzard Lighting, LLC www.blizzardlighting.com Wisconsin, USA Copyright (c) 2012-13... -
Page 2: Table Of Contents
Gobo Replacement DMX Channel Values In-Depth Photometric Data Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Torrent F3 Spot As Good As New Returns (Gasp!) Shipping Issues Tech Specs Page 2 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 3: Getting Started
F3. On the Fujita Scale, it is the fastest, most dangerous of all storms... and the fast- est and brightest LED profile spot on the market today. Your research has paid off and you have been handsomely rewarded! Now that you’ve got your Torrent F3, you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)
• Never disconnect the power cord by pulling or tugging on the cord. • Avoid direct eye exposure to the light source while it is on. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact Blizzard Lighting at sup- port@blizzardlighting.com. Page 4 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 5: Meet The Torrent F3™ Spot
2. MEET THE TORRENT F3™ SPOT CONTROL FEATURES • 14-channel DMX LED moving yoke • Pan: 540º/630º/ Tilt: 270º • Color wheel: 7 colors + white, rainbow color spin at variable speeds • 7 interchangeable, rotating slot-n-lock gobos + open (1 glass installed) •... -

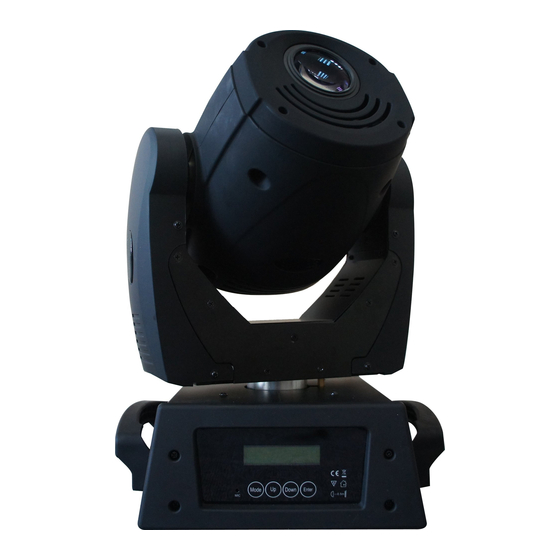

Page 6: The Torrent F3 Pin-Up Picture
Figure 1: The Torrent F3 Pin-Up Picture Head/Arms Lens Carry Handle LCD Readout Control Panel Figure 2: The Rear Connections DMX Out DMX In Power Switch Fuse Cover Power In Power Out Page 6 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 7: Setup
Insert the fuse holder back in its place and reconnect power. Connecting A Bunch of Torrent F3’s™ You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas- ter/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fix- tures the data link can support. -
Page 8: Cable Connectors
(input). Note: It doesn’t matter which fixture address is the first one connected. We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 9: Fixture Linking (Master/Slave Mode)
Do not mount to surfaces with unknown strength, and ensure properly “rated” rigging is used when mounting fixtures overhead. Adjust the angle of the fixture by loosening both knobs and tilting the fixture. After finding the desired position, retighten both knobs. • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 10: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the Torrent F3™ are accessed by using the control panel on the front of the fixture. There are 4 control buttons below the LCD display which allow you to navi- gate through the various control panel menus. Button Function <MODE>... -
Page 11: Control Panel Menu Structure & Adjustments
Color Wheel Allows you to manually set the fixture to a fixed setting using the DMX values for each Gobo Wheel channel. For more information on DMX values available for each channel, see pages 14-15. Gobo Rotation Gobo Wheel 2 Strobe Dimmer Focus Prism Page 11 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 12: Custom Programming
DMX channel #15. Gobo Rotation For more information on DMX values available for each channel, see pages 14-15. Gobo Wheel 2 Strobe Dimmer Prism Scene Time Page 12 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 13: Gobo Replacement
3) Using a small tool, pry the tension ring from the gobo holder. 4) Remove the old gobo. 5) Insert the new gobo, and replace in the reverse steps of removal. Page 13 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 14: Dmx Channel Values In-Depth
096 <-> 127 Open 128 <-> 159 Pulse Strobe (Slow <-> Fast) 160 <-> 191 Open 192 <-> 223 Random Strobe (Slow <-> Fast) 224 <-> 255 Open Page 14 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 15: Photometric Data
Ø 0.66 m / Ø 2.17 ft Ø 1.32 m / Ø 4.33 ft Ø 1.98 m / Ø 6.50 ft • Lux: 32,300 @ 1m, 6,450 @ 2m Page 15 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 16: Troubleshooting
Verify remote is correct type (CA-9 or other as applicable.) Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please contact support: support@blizzardlighting.com. Page 16 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 17: Appendix
In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 17 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... -
Page 18: Keeping Your Torrent F3 Spot As Good As New
Keeping Your Torrent F3 As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 19: Tech Specs
Neutrik AG, Neutrik USA, or any related entity. Neutrik® and powerCON® are registered trade- marks of Neutrik AG. Page 19 Torrent F3™ Manual Rev. C © 2012-13 Blizzard Lighting, LLC... - Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
