Summary of Contents for Blizzard Lighting Stiletto Z7

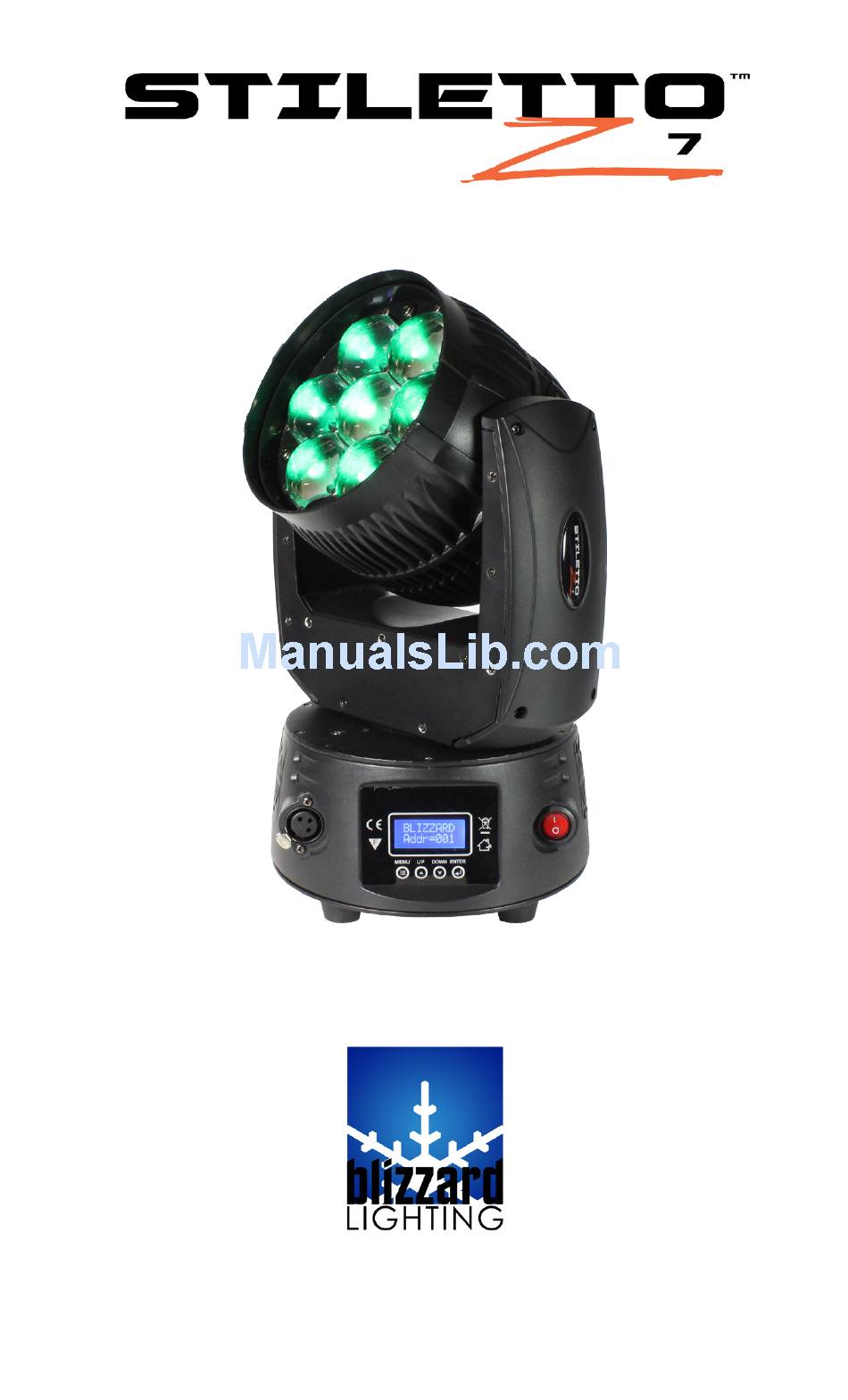

  • Page 1 Blizzard Lighting, LLC www.blizzardlighting.com Waukesha, WI USA Copyright (c) 2015...
  • Page 2: Table Of Contents

    Manual Settings System Reset Troubleshooting 5. Appendix A Quick DMX Lesson Keeping Your Stiletto™ Z7 As Good As New Returns (Gasp!) Shipping Issues Tech Specs Dimensional Drawings Page 2 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 3: Stiletto™ Z7 Moving Head

    414-395-8365 Disclaimer: The information and specifications contained in this document are subject to change without notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions that may appear in this user manual. Blizzard Lighting™ reserves the right toe update the existing document or to create a new document to correct any errors or omissions at any time.
  • Page 4: Safety Instructions (Don't Stick Your Hand In The Toaster!)

    SAFETY INSTRUCTIONS Stiletto Z7 fixtures are fitted with 7 plano-convex lenses in a highly efficient col- limator cluster. This type of lens can act as a strong magnifying glass. If the rays from a strong light source (such as the sun or another lighting fixture) are directed towards the front of this fixture, internal damage is possible. In a worst case scenario...
  • Page 5: Meet The Stiletto™ Z7 Moving Head

    Green Intensity Auto Mode + Sound Active Blue Intensity Auto Mode Speed White Intensity Reset (125-149) Auto Mode + Sound Active Auto Mode Speed Reset (125-149) Page 5 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...

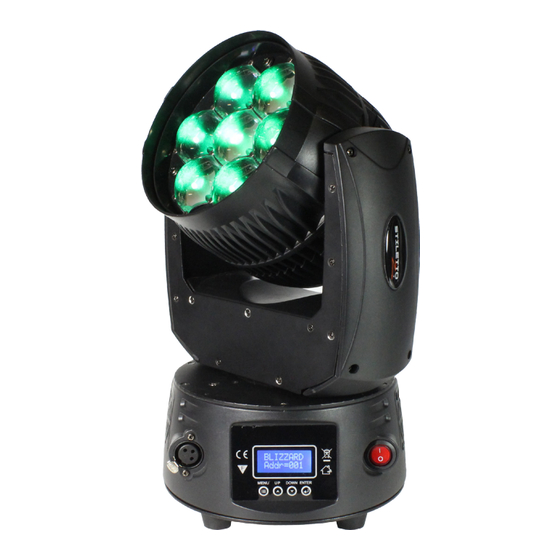

  • Page 6: The Stiletto™ Z7 Pin-Up Picture

    RGBW LEDs Head/Arm LCD Display Menu Power Buttons Switch Output Figure 2: The Rear Connections Power Input Fuse Holder Input (fixed cable) (5A 250V) Air Vent Fan Vent Page 6 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 7: Setup

    Remove the damaged fuse from its holder and replace with exact same type which is a 5A, 250V micro-fuse. Reattach the fuse holder, and then reconnect power. Connecting A Bunch of Stiletto Z7 Fixtures™ You will need a serial data link to run light shows using a DMX-512 controller or to run shows on two or more fixtures set to sync in mas- ter/slave operating mode.
  • Page 8: Cable Connectors

    We recommend connecting the fixtures in terms of their proximity to the controller, rather than connecting the lowest fixture number first, and so on. Step 3: Connect other fixtures in the chain from output to input as above. Place a DMX terminator on the output of the final fixture to ensure best communication. Page 8 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 9: Fixture Linking (Master/Slave Mode)

    • When selecting installation location, take into consideration lamp replacement access (if applicable) and routine maintenance. • Safety cables MUST ALWAYS be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. Page 9 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 10: Mounting Points

    Better safe than sorry! Be sure to complete all rigging and installation procedures before connecting the main power cord to the appropriate wall outlet. Page 10 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 11: Clamp Mounting

    Attach the safety wire through safety eyelet provided on the base of the fixture and connect it to the primary support structure. Pay attention to a safe and proper fastening. The safety cable must be capable of bearing a suspended load that is ten times the weight of the fixture and all installed accessories. Page 11 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 12: Operating Adjustments

    Press the <ENTER> button to access the menu function currently displayed or to enable a menu option. To return to the previous option or menu without changing the value, press the <MENU> button. Page 12 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 13: Control Panel Menu Structure

    Puts fixture into Slave Mode Slave Mode = Music Sets fixture in single music operation mode Music Alone Music Sets fixture as master music operation to be used Master with slave units Mode = Auto Sets fixture in single auto operation mode Auto Alone Auto Sets fixture as master auto operation to be used Master with slave units Page 13 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 14: Manual Settings

    000 <--> 255 Reset (125-149) 000 <--> 250 Auto Mode 251 <--> 255 Sound Active Mode 000 <--> 255 Auto Mode Speed 000 <--> 255 Reset (125-149) Page 14 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 15: Troubleshooting

    Relamp, lamp may have reached end of life. Fixture Moving Verify proper mode of operation. Is the fixture in “Auto” On Its Own mode? If your problem isn’t listed, or if problems persist, please open a support ticket at www.blizzardlighting.com/tickets. Page 15 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 16: Appendix

    In summary, since its design and evolution in the 1980’s DMX has become the standard for lighting control. It is flexible, robust, and scalable, and its ability to control everything from dimmer packs to moving lights to foggers to lasers makes it an indispensable tool for any lighting designer or lighting performer. Page 16 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 17: Keeping Your Stiletto Z7 As Good As New

    Keeping Your Stiletto Z7 As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed.
  • Page 18: Tech Specs

    Other Information I take the “L” and “R” on my headphones way too seriously. 2-year limited warranty, does not cover malfunction Warranty caused by damage to LEDs. Page 18 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 19: Dimensional Drawings

    Dimensional Drawings 8.9 inches (226.3mm) ø5.9 inches (148.5mm) ø7.5 inches (190mm) 3 x M10 Max. Length = 11mm Page 19 Stiletto™ Z7 Moving Head - Rev. A (c) 2015 Blizzard Lighting, LLC...
  • Page 20 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
