Summary of Contents for Blizzard Lighting SnowBlind
- Page 1 Blizzard Lighting, LLC http://www.blizzardpro.com Waukesha, WI USA Copyright (c) 2021...
-
Page 2: Table Of Contents
Mounting & Rigging 4. Operating Adjustments The Control Panel Control Panel Menu Structure DMX Values In-Depth Troubleshooting Keeping Your Snowblind As Good As New Returns (Gasp!) Shipping Issues Tech Specs! Page 2 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 3: Getting Started
Getting It Out Of the Box Congratulations on purchasing one way cool, way flexible, way original LED strobe light! Now that you’ve got your SnowBlind™ (or hopefully, Snow Blind’s!), you should carefully unpack the box and check the contents to ensure that all parts are present and in good condition. -
Page 4: Safety Instructions
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please open a support ticket at www.blizzardpro.com/support. Page 4 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 5: Meet The Snowblind
• Operating modes: DMX-512, M/S, and Sound Active DMX Quick Reference (3-Channel Modes) What It Does Dimmer (Low <--> High) Flash Speed (Slow <--> Fast) Microphone Sensitivity Adjustment (Low <--> High) Page 5 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 6: Snowblind Pin-Up Picture

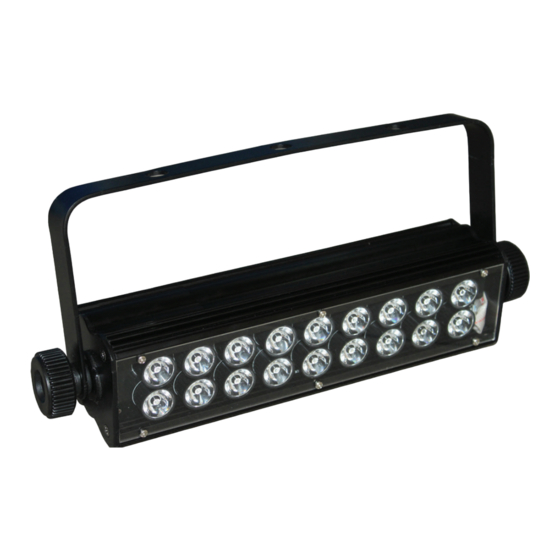

Figure 1: SnowBlind™ Pin-Up Picture Aluminum Housing Mounting Bracket Locking Knobs 18x 1-Watt Cool White LEDs Figure 2: The Rear Connections Mic Sensitivity Control Panel AC Power In + Fuse Holder Page 6 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 7: Setup
• Maximum capacitance between conductors – 30 pF/ft. • Maximum capacitance between conductor & shield – 55 pF/ft. • Maximum resistance of 20 ohms / 1000 ft. • Nominal impedance 100 – 140 ohms Page 7 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 8: Using This Fixture With The Wicicle® Wireless Dmx System
® UNDER NO CIRCUMSTANCES IS BLIZZARD LIGHTING RESPON- SIBLE FOR ANY DAMAGE FROM SUCH OPERATION. • Fixtures bearing the above logo MUST only use cable and connectors which separate chassis/case ground from cable shielding. Cabling with the shield connected to the connector’s case/chassis may cause malfunc-... - Page 9 NOTE: The color of the LED DURING opera- tion does not indicate channel group, instead it indicates whether the unit is transmitting or receiving. That’s It! Page 9 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC...
-
Page 10: Cable Connectors
Place a DMX Next terminator on the output of the final fixture to Fixture in Chain ensure best communication. DMX IN DMX OUT Page 10 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 11: Fixture Linking (M/S Mode)
Overhead mounting requires extensive experience, which includes calculating working load limits, knowledge of the installation material being used, and periodic safety inspections. If you lack these qualifications, do not attempt the installation yourself. Page 11 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 12: Operating Adjustments
4. OPERATING ADJUSTMENTS The Control Panel All the goodies and different modes possible with the SnowBlind™ are accessed by using the control panel on the side of the fixture. There are 4 control buttons below the LED display which allow you to navigate through the various control panel menus. -
Page 13: Dmx Values In-Depth
Use Only DMX Cables and/or check cables for defects Responding Er- Install a Terminator. raticly Reset fixture(s). Intermittant Check lamp for properly installation. Lamp Relamp, lamp may have reached end of life. Page 13 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... -
Page 14: Keeping Your Snowblind As Good As New
Keeping Your SnowBlind™ As Good As New The fixture you’ve received is a rugged, tough piece of pro lighting equip- ment, and as long as you take care of it, it will take care of you. That said, like anything, you’ll need to take care of it if you want it to operate as designed. -
Page 15: Tech Specs
3 Channel Input 3-pin XLR Male Output 3-pin XLR Female Operating Modes Sound Active, Master/Slave, DMX 2-year limited warranty, does not cover malfunction caused by Warranty damage to LEDs. Page 15 Snowblind User Manual Rev. C © 2021 Blizzard Lighting, LLC... - Page 16 Enjoy your product! Our sincerest thanks for your purchase! --The team @ Blizzard Lighting...
