Page 1: User Manual

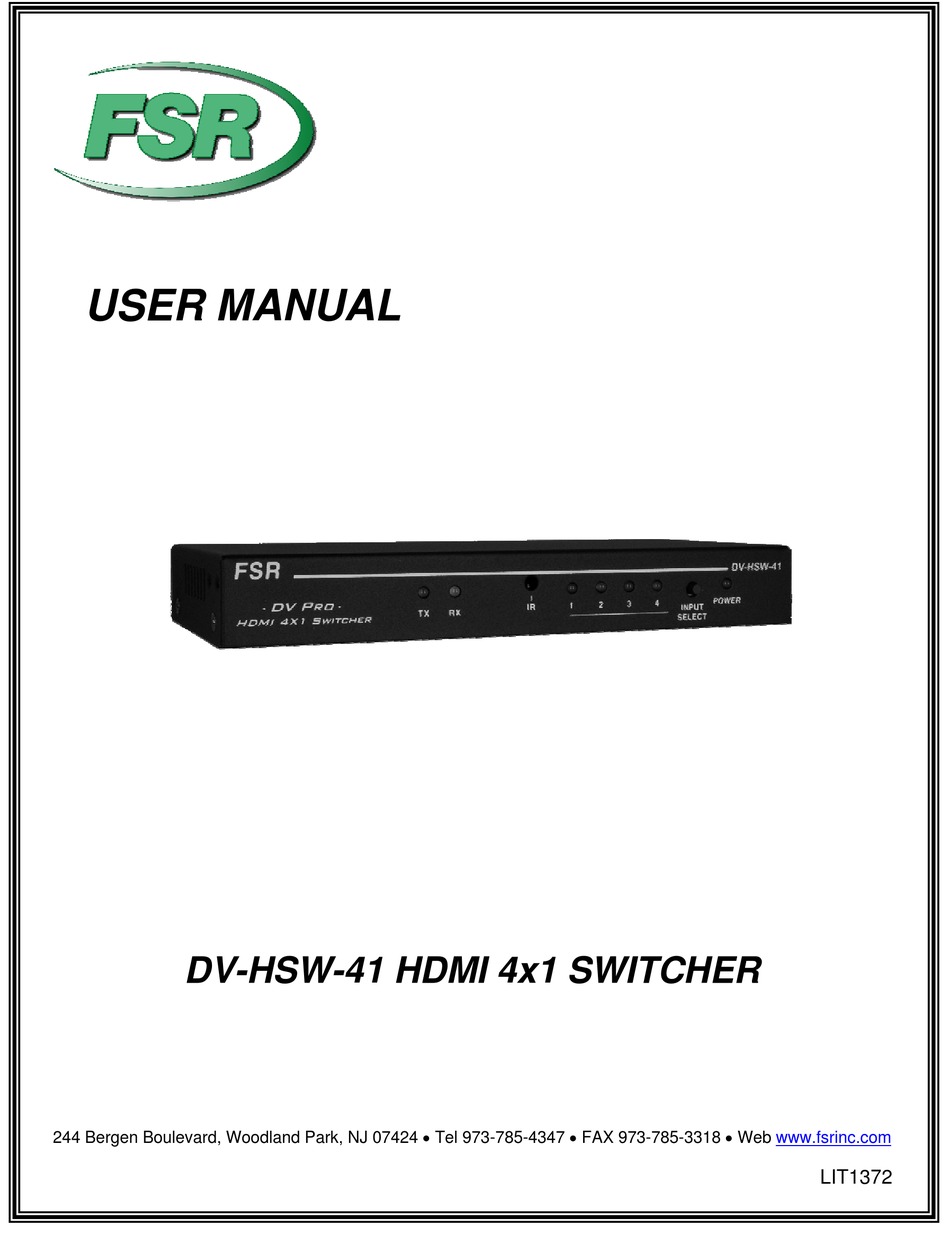

USER MANUAL DV-HSW-41 HDMI 4x1 SWITCHER 244 Bergen Boulevard, Woodland Park, NJ 07424 Tel 973-785-4347 FAX 973-785-3318 Web www.fsrinc.com LIT1372... -
Page 2: Proprietary Information
PROPRIETARY INFORMATION All information in this manual is proprietary to and the property of FSR Inc. This publication is protected by the Federal Copyright Law, with all rights reserved. No part of this document may be reproduced, transcribed, or transmitted, in any form or by any means, without prior explicit written permission from FSR Inc. -
Page 3: Table Of Contents
TABLE OF CONTENTS PROPRIETARY INFORMATION................2 UNPACKING......................2 SAFETY........................4 DESCRIPTION ......................5 ENVIRONMENTAL AND RELIABILITY SPECIFICATIONS ........6 FEATURES ......................7 FRONT PANEL ......................8 BACK PANEL......................8 VIDEO CONNECTIONS ..................9 RS232 CONTROL CONNECTIONS ..............10 RS232C CONTROL COMMAND ................10 SPECIFICATIONS ....................11 HDMI CONNECTOR PIN ASSIGNMENT ..............12 TROUBLESHOOTING...................13 LIMITED WARRANTY ...................15... -
Page 4: Safety
SAFETY All the safety and user manual should be read before the appliance is operated. The safety and operating instructions should be retained for future reference. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. -
Page 5: Description
DESCRIPTION The DV-HSW-41 HDMI 4x1 SWITCHER allows four digital video and digital audio sources to share one video display. Our unique switch allows easy switching between different digital video and digital audio sources via the remote control unit or with the manual switching button place on the front panel. -
Page 6: Environmental And Reliability Specifications
ENVIRONMENTAL AND RELIABILITY SPECIFICATIONS Recommended environmental conditions for the operation are temperature range of 10°C~40°C, non-condensing humidity levels of 10%-80%, and altitude ceiling of 9,840 feet (3,000 meters). Environmental limits for transportation are temperature range of -25°C~60°C, non- condensing humidity levels of 5%~95%, and altitude ceiling of 49,200 feet (15,000 meters). Environmental limits for storage are established at temperature range of -20°C~45°C, non-condensing humidity levels of 5%~95%, and altitude ceiling of 9,840 feet (3,000 meters). -
Page 7: Features
FEATURES High Quality Picture - No Signal Loss and Digital Noise Free Our switchers are built to deliver the highest quality picture preserving the native resolutions of the video sources without any signal loss. At the same time, the digital noises that may affect the picture quality will be eliminated. -
Page 8: Front Panel

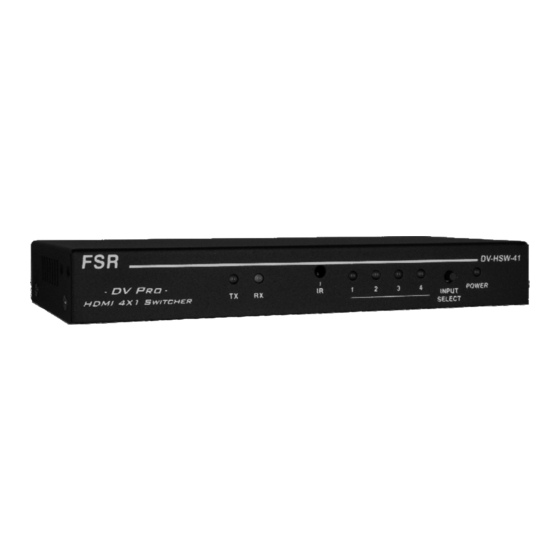

FRONT PANEL LED CH1~4 Selected Channel Indication IR INPUT IR Remote Sensor Window SELECT Manual Channel Select POWER Power indicator LED TX/RX RS-232 Activity LEDs BACK PANEL DC 5V DC Power 5V Input jack HDMI IN CH 1-4 : HDMI Input Connectors RS-232 DB-9 Com Port For Switch Function Control HDMI OUT... -
Page 9: Video Connections
VIDEO CONNECTIONS Connect your video source’s HDMI output port to the DV-HSW-41 HDMI input port using standard HDMI cables(not included). Make sure that all your HDMI sources and the display is turned off before connecting the cables) Connect your HDMI display’s HDMI input port to the DV-HSW-41’s HDMI output port. Make sure your HDMI display is turned off before connecting the cables) Plug the 5V power supply into the DV-HSW-41 power input port. -
Page 10: Rs232 Control Connections
RS232 CONTROL CONNECTIONS RS232 connection allows the user to interface the DV-HSW-41 with a serial port on a computer or other control device. The computer or other control device may require additional software for various control functions. (Control software not included) -
Page 11: Specifications
SPECIFICATIONS Frequency bandwidth: 2.25 Gbps (Single Link) Supporting Graphic Resolution: UXGA (1600 X 1200 at up to 75Hz) 1080p (1920 X 1080 at up to 60Hz) Inputs: 4 HDMI Female Output: 1 HDMI Female port Power supply: DC 5V, 1.2A Adapter included. Infrared Remote Control: Included HDCP:... -
Page 12: Hdmi Connector Pin Assignment
HDMI CONNECTOR PIN ASSIGNMENT HDMI Input , Output Part No. Pin No. Description Remarks TMDS DATA 2P TMDS DATA 2 Shield TMDS DATA 2M TMDS DATA 1P TMDS DATA 1 Shield TMDS DATA 1M TMDS DATA 0P TMDS DATA 0 Shield TMDS DATA 0M TMDS Clock P HDMI 19pin... -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Solution Switch will not operate Make sure the 5V power supply is plugged into the back of the unit. Check to see if the power LED light is on. No picture(or signal) 1.In case your video source is HDCP enabled, make sure your video display(HDTV) is HDCP or Poor picture compliant. -
Page 15: Limited Warranty
FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR. FSR’s liability under this warranty is limited to repair or replacement of the defective unit.
