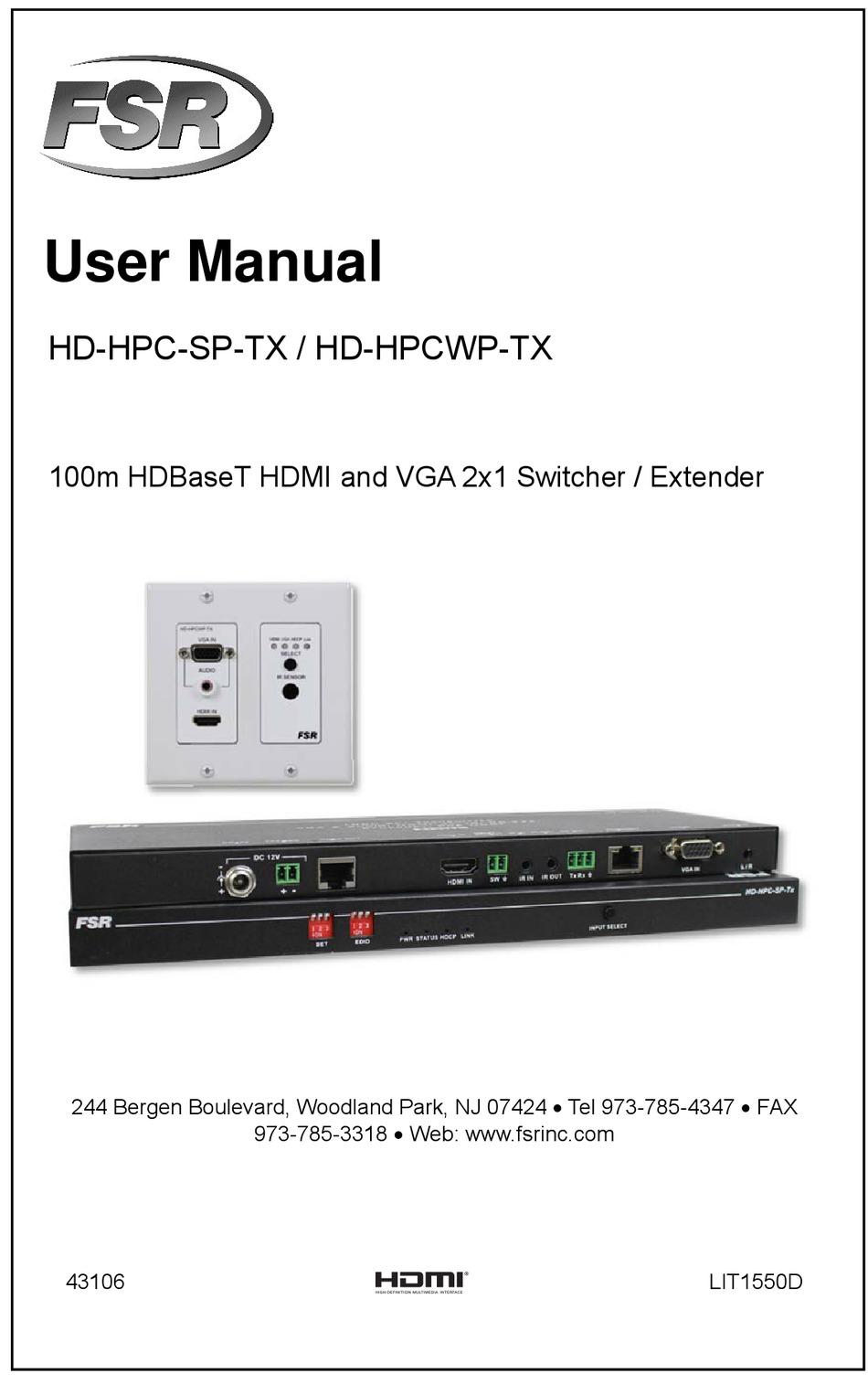

User Manual

HD-HPC-SP-TX / HD-HPCWP-TX
100m HDBaseT HDMI and VGA 2x1 Switcher / Extender
244 Bergen Boulevard, Woodland Park, NJ 07424  Tel 973-785-4347  FAX
973-785-3318  Web: www.fsrinc.com
43106
LIT1550D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-HPC-SP-TX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FSR HD-HPC-SP-TX

  • Page 1: User Manual

    User Manual HD-HPC-SP-TX / HD-HPCWP-TX 100m HDBaseT HDMI and VGA 2x1 Switcher / Extender 244 Bergen Boulevard, Woodland Park, NJ 07424  Tel 973-785-4347  FAX 973-785-3318  Web: www.fsrinc.com 43106 LIT1550D...
  • Page 2 4. Do not install near any heat 9. Only use sources such as radiators, heat attachments/accessories registers, stoves, or other device specified by FSR. (including amplifiers) that produce heat. 5. Do not place sources of open 10. Refer all servicing to...
  • Page 3: Table Of Contents

    Table of Contents   Overview ....................4 Features ....................5   Package Contents ..................6   HD-HPC-SP-Tx and HD-HPCWP-Tx sold separately ......6   HD-HPC-SP-Tx ..................6   Typical Application ..................7   Typical Application ..................8     Dimensions ....................9 HD-HPCWP-Tx .................
  • Page 4: Overview

    Power via 1 CAT-6A shielded cable up to 100 Meters. The HD-HPC-SP-Tx works with any of FSR’s 100 Meter HDBaseT Receivers and can be powered from either end (Tx to Rx or Rx to Tx). The HD-HPC-SP-Tx’s switcher has both HDMI and VGA with Audio.
  • Page 5: Features

    Supports VGA input (with L/R audio) and HDMI input  Switches the input source simply by pressing the button on the front panel or contact closure via pluggable screw terminal connector (HD-HPC-SP-Tx only) on the rear panel Automatically switches to an active source ...
  • Page 6: Package Contents

    PACKAGE CONTENTS HD-HPC-SP-TX AND HD-HPCWP-TX SOLD SEPARATELY HD-HPC-SP-TX One HD-HPC-SP-Tx Transmitter Two 2-pin screw-down terminals One 3-pin screw-down terminal One IR Emitter One IR Receiver (30kHz ~ 50kHz) Two Under Table Mounting Brackets User's manual HD-HPCWP-TX One HD-HPCWP-TX Transmitter One 9-pin screw-down terminal...
  • Page 7: Typical Application

    HD-HPC-SP-Tx shown NOTE: It is only necessary to power one side (Tx or Rx) Transmitters do not include a Power Supply. An FSR 17762 Power Supply is included with any of the FSR HDBaseT Receivers. Only one power supply is needed to power the Transmitter and Receiver set.
  • Page 8: Typical Application

    FSR's 100m HDBaseT receivers. The HD-HPCWP-Tx transmitter can be powered locally but it cannot send power to the receiver. Transmitters do not include a Power Supply. An FSR 17762 Power Supply is included with any of the FSR HDBaseT Receivers. FSR 17762 Power Supplies...
  • Page 9: Dimensions

    DIMENSIONS HD-HPCWP-Tx HD-HPC-SP-Tx...
  • Page 10: Hd-Hpc-Sp-Tx Front Panel

    HD-HPC-SP-TX FRONT PANEL Name Description RS-232 Settings (See table) EDID VGA resolution settings (See table) On: Unit is powered on. Power LED Off: Unit is powered off. Intermittent: Normal operating condition Status LED Off: Fault On: HDCP video is being transmitted.
  • Page 11: Hd-Hpcwp-Tx Front Panel

    HD-HPCWP-TX FRONT PANEL Name Description VGA IN HD-15 VGA input EDID VGA resolution settings (See table) AUDIO Stereo audio input HDMI LED Indicates HDMI input is selected VGA LED Indicates VGA input is selected On: HDCP video is being transmitted. HDCP LED Off/Intermittent: No HDCP video is being transmitted ON: Receiver and Transmitter are linked to each other...
  • Page 12: Hd-Hpc-Sp-Tx Rear Panel

    Connects to HDBT IN port of receiver HDMI IN Connects to an HDMI source Pluggable screw terminal connector connecting to an external control pad (HD-HPC-SP-Tx only). Input Select See "Select Button and switching behavior" IR IN Connects to IR receiver...
  • Page 13: Hd-Hpcwp-Tx Rear Panel

    HD-HPCWP-TX REAR PANEL Name Description POWER IN 12V 2A DC power supply input (power supply sold separately. (See note under "Typical Application") POWER OUT 12VDC 250mA max RS-232 Serial port IR OUT Connects to IR transmitter ETHERNET Connects to an Ethernet device HDBT OUT Connects to HDBT IN port of receiver...
  • Page 14: Hardware Installation

    HARDWARE INSTALLATION Warnings  Before the installation, disconnect the power supply from all the devices.  Do not connect or disconnect cables from the Transmitter and Receiver while they are powered ON. To connect or disconnect cables from the units, power them OFF first. ...
  • Page 15: Input Select Button And Switching Behavior

    The auto switcher will select an active input or the first-come first-served if both inputs are active. The input select switch or the contact closure (HD-HPC-SP-Tx only) can select the input type only if both inputs are active. Key function description: 1.
  • Page 16: Dip Switch Description

    1024 x 768 60Hz 800 x 600 60Hz Reserved Reserved 0 = OFF and 1 = ON Note: Power cycle the extender after you change the switch position. HDMI EDID HD-HPC-SP-Tx: Pass-through or 1080p 60Hz if a sink is not detected. HD-HPCWP-Tx: Pass-through...
  • Page 17: Set (Hd-Hpc-Sp-Tx Only)

    SET (HD-HPC-SP-Tx only) 1 2 3 Position Position Position Settings RS-232 pass-through enabled (Default) Valens IC update RS-232 pass-through disabled MCU update and control RS-232 pass-through disabled 0 = OFF (UP) and 1 = ON (DOWN)
  • Page 18: Ir And Rs-232 Operation

    IR AND RS-232 OPERATION (HD-HPC-SP-Tx shown) IR Control The IR pass-through feature on the Transmitter and Receiver allows you to control the Source from the Display’s location or vice versa. Scenario 1 The TV can be controlled from the Transmitter’s location with the TV remote.
  • Page 19 Scenario 2 The DVD Player can be controlled from the Receiver’s location with the DVD Player Remote. The IR emitter is connected to the IR OUT on the Transmitter and the IR receiver is connected to the IR IN on the Receiver. BLUE-RAY IR EMITTER CABLE...
  • Page 20: Rs-232 Control And Firmware Updates

    Transmitter from the Receiver or vice versa. In addition, the RS-232 port on the Transmitter can be connected to a computer to update the firmware. (See Dip switch settings) Scenario 1: Firmware Update (HD-HPC-SP-Tx only) DC 12V LOCAL OUT HDMI IN...
  • Page 21: Specifications

    RS-232 via 3.81mm 3 Pin pluggable screw terminal Connector Switch closure via 3.81mm 3 Pin pluggable screw terminal Connector (HD-HPC-SP-Tx only) Front Panel pushbutton switch IR input and output via 1/8" jack (DV-HPC-SP-Tx) IR output via 3.81mm pluggable screw terminal...
  • Page 22 1080p 60Hz (36 bpp) 1080p 60Hz (48 bpp) 1080p 60Hz 3D 4K 2160p (3840x2160 30Hz) General Shipping HD-HPCWP-Tx: 1.45 lbs. (0.66 kg) Weight HD-HPC-SP-Tx: 2.45 lbs. (1.12 kg) Dimension See dimension drawings for specific model information (W x H x D)
  • Page 23: Limited Warranty

    FSR factory or Authorized Repair Stations. This warranty shall be cancelable by FSR at its sole discretion if the unit has been subjected to physical abuse or has been modified in any way without written authorization from FSR.
