Zephyr AK7536ASX Use, Care And Installation Manual page 17

4

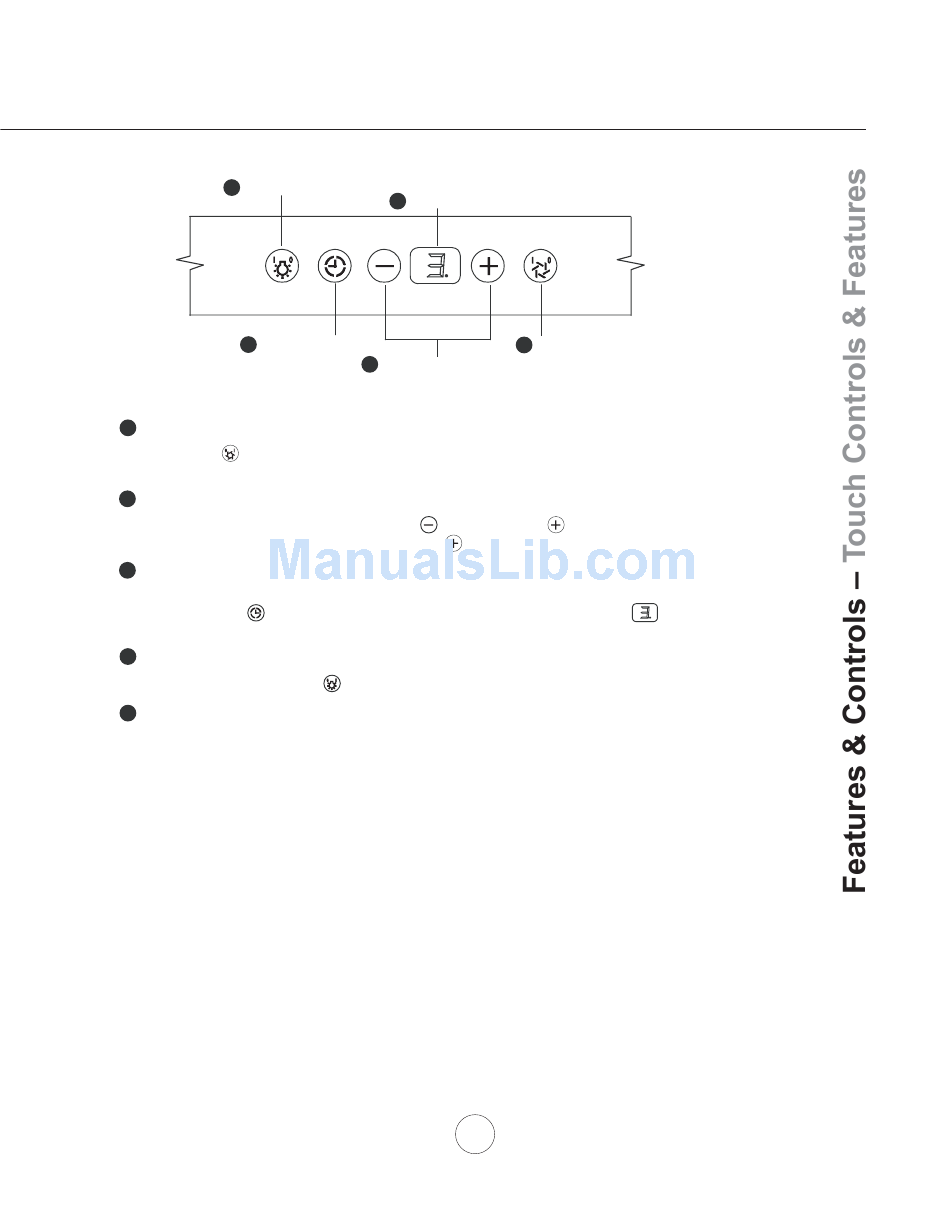

Lights On/Dim/Off
3
5 Min Delay Off
Blower On/Off
1
By pressing , the blower is switched On and Off. When switched on, the blower turns on at the same
speed it was switched off at. When switched off the entire hood powers off, including the lights.
Speed Selection
2
The 3 speed levels are selected by pressing
display indicates speed level selected. Pressing
Delay Off
3
This is used for programmed shut down of blower and lights 5 minutes after the function is
activated. Press once, a dot displays in the lower right hand side of display
the function is on. The hood will change to speed 1 and shut down after 5 minutes.
Lights On/Dim/Off
4
Switch lights On by pressing
Display
5
Displays blower speed level and delay off status.
Manual On/Off
Located behind the right side light panel is a manual power on/off toggle switch. This switch is used
to manually cut power to the hood to perform a hard reset for troubleshooting purposes. Toggle
between I (on) or 0 (off).
Heat Lamps On/Off
Located on the right and left side light panel are manual power on/off toggle switches. These
switches are used to turn the heat lamps on/off. Toggle between I (on) or 0 (off).
5
Display
(Speed level, Delay Off Indicator)
1
2
Adjust 3 Speed Levels
to decrease and
when the hood is off will also turn it on.
once, again to dim and again to switch Off.
