PBI-1100A DUAL INTERNAL BLOWER WILL ACCOMODATE VERTICAL DUCTING ONLY
Please turn to page 12 for instructions on installing CBI-600B in horizontal ducting mode.

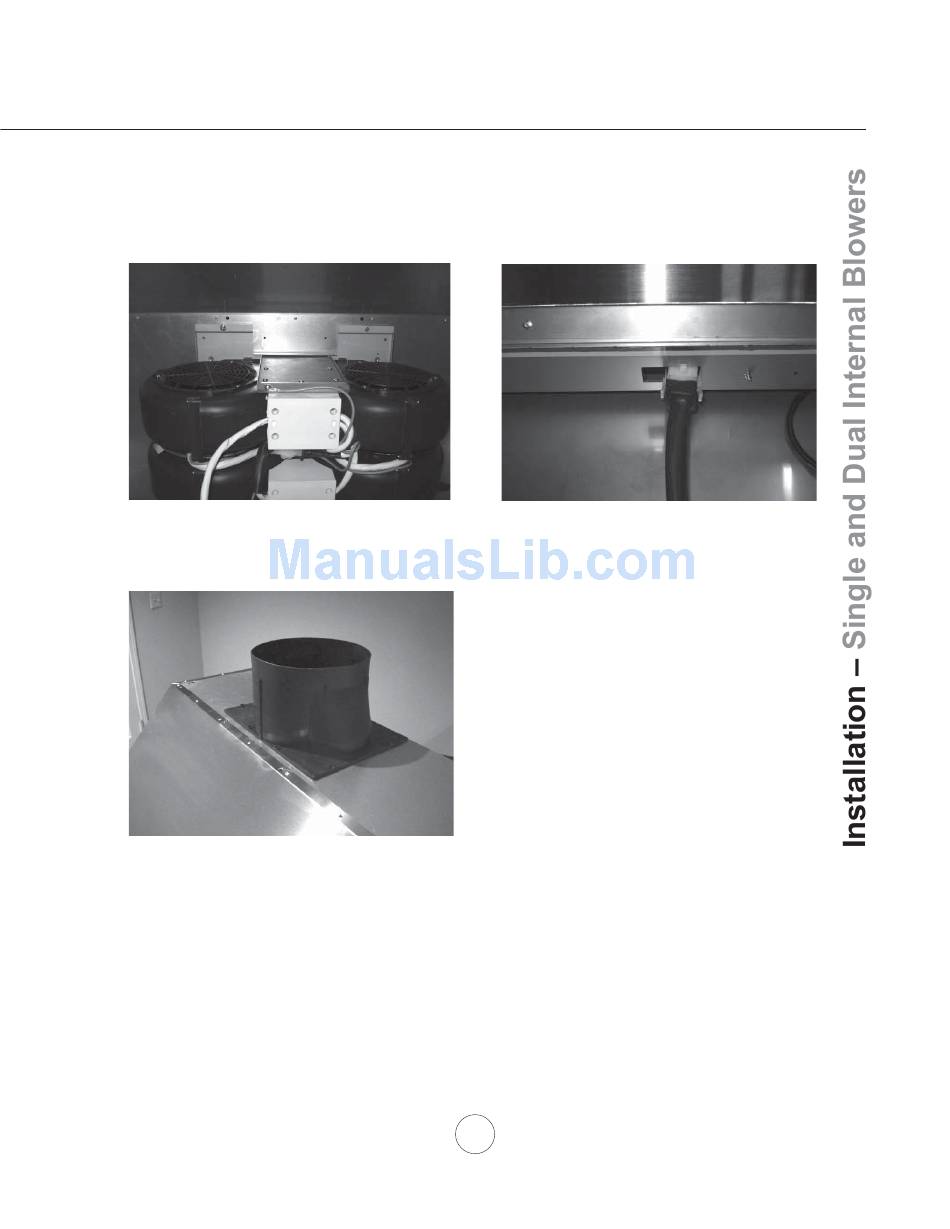

1. Position blower plate over bracket on inside
back of hood and pivot up. Secure plate to hood
with (2) 10x3/16" screws. (blower pictured is a
PBI-1100A)
3. Single Blower – Connect 6" round duct work to
blower collar.
Dual Blower – Place 10" round adapter on top of
hood and secure with (4) M4x8 screws.
Connect 10" round duct work to 10" round
adapter.
2. Connect male end of blower wire to female plug
in the hood. (plug is located inside the hood
behind the control panel)
