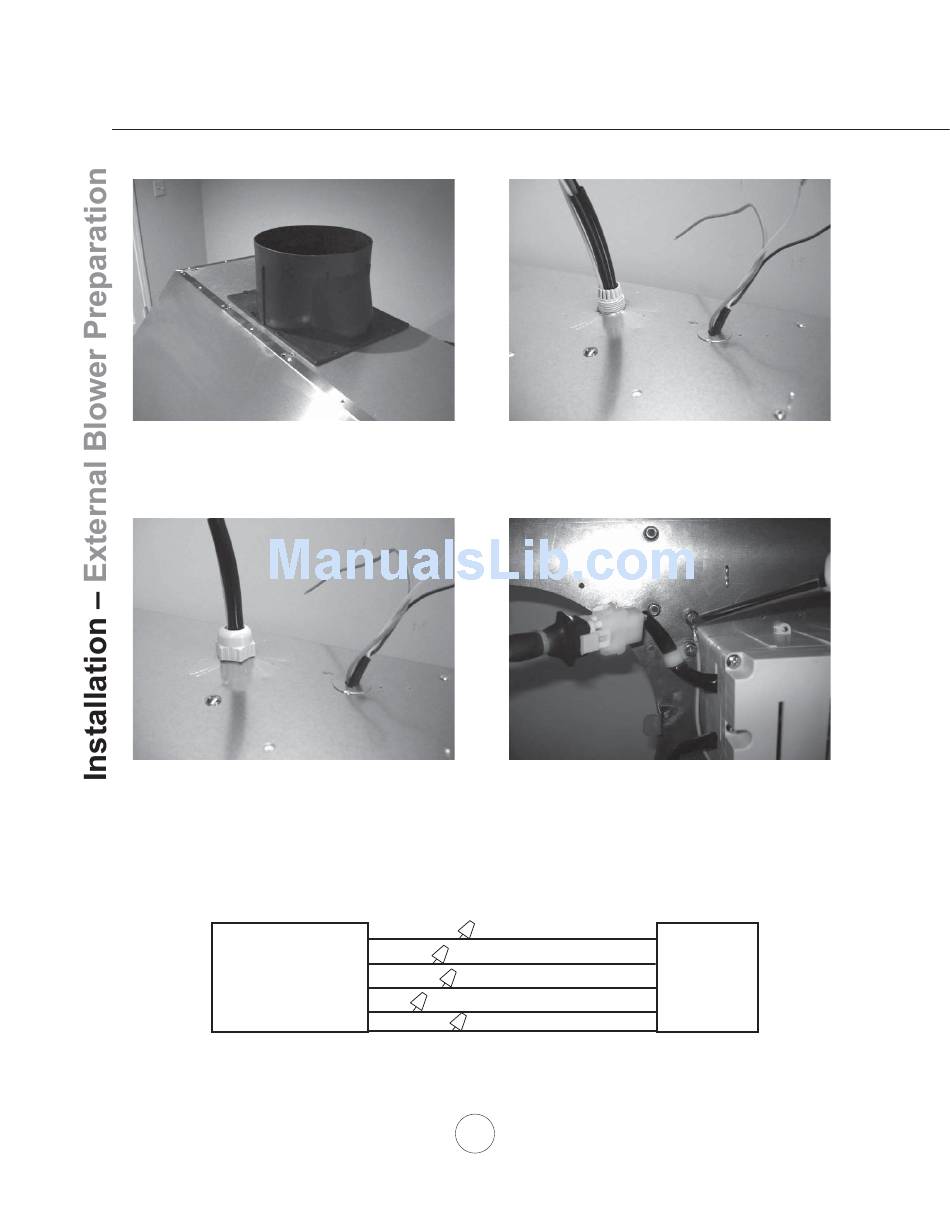

1. Place 10" round adapter on top of hood and
secure with (4) M4x8 screws. Connect 10"
round duct work to 10" round adapter.
3. Place cap over threaded end of external blower
wiring and secure by turning clockwise.
CBE-1000: WIRING DIAGRAM
External Blower
Wiring Box
(hood)
NOTE: For instructions on mounting the external blower, please refer to the CBE-1000 manual included
in the external blower packaging and on our website: www.zephyronline.com
2. Install threaded end of external blower wiring
through external blower wiring knock out
located inside the hood.
4. Connect 6 pin male connector from external
blower wiring to 6 pin female connector on
control board wire inside hood. Secure green
ground wire from external blower wiring to
ground screw on hood.
White (common)
Black (high)
Blue (med)
Red (low)
Green (ground)
14
www.zephyronline.com
Junction Box
(CBE-1000)
