HORIZONTAL DUCTING IS ONLY AVAILABLE IF USING THE
CBI-600B SINGLE INTERNAL BLOWER.

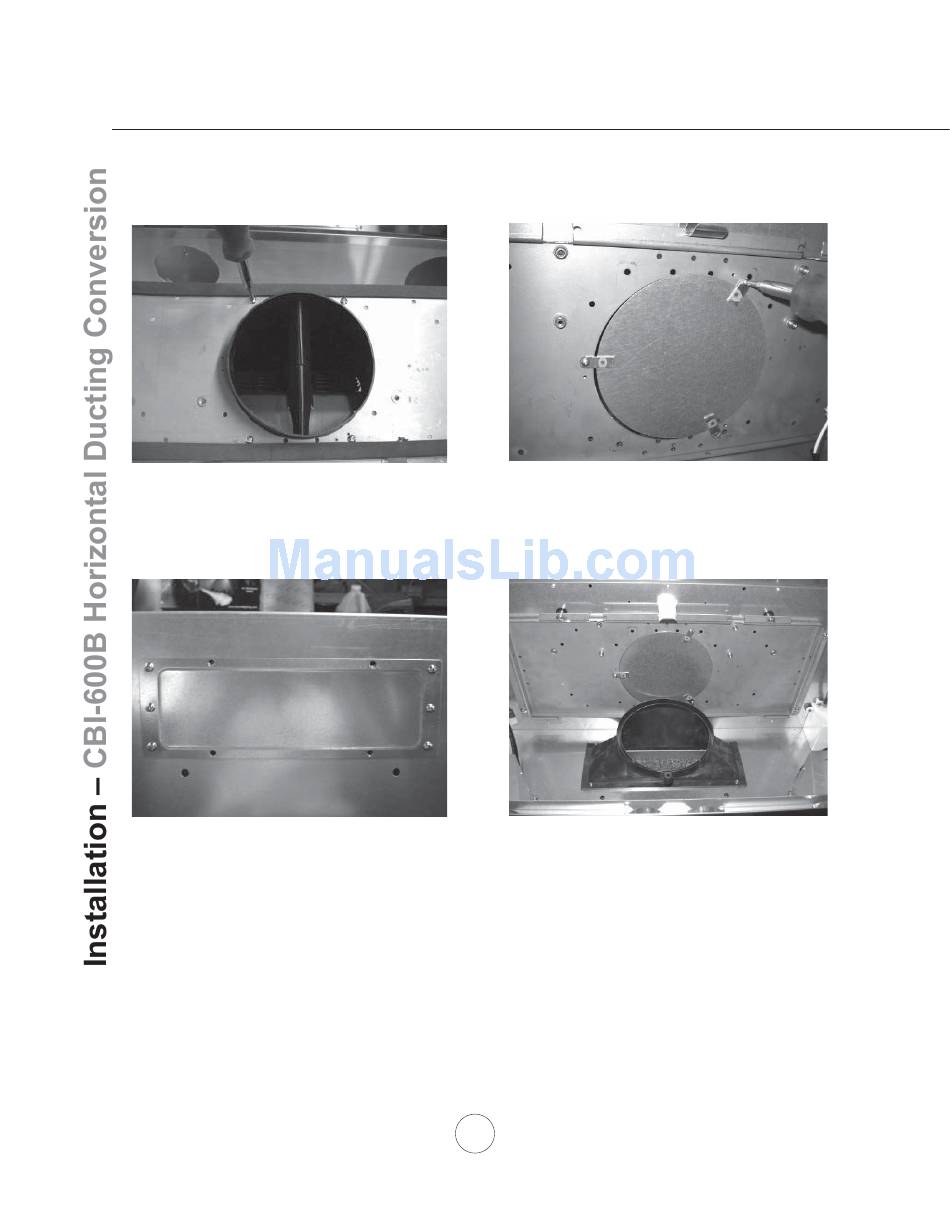

1. Unscrew (4) screws holding blower to plate and
remove blower.
3. Follow instructions on previous page and install
blower plate into hood.
4. On the back of the hood, remove the (6) screws
holding the rectangular cap to the hood.
2. Cover round blower opening on blower plate
with 6" round metal cap included with the
CBI-600B. Secure with (3) 3.5x8 screws.
5. Place round to rectangular transition adapter
inside hood.
