- Page 1 CWHDI-TxRx HDMI Wireless Transmitter & Receiver Set OPERATION MANUAL...
- Page 2 Precautions Failure to follow the precautions described below may cause damage to this HDMI device and void the warranty. • DO NOT open the case. This will void the warranty, if you find a problem with this product, please return it to your retailer or seller who will assist you or provide you with a solution.
-
Page 3: Table Of Contents
Table of Contents Introduction Features Package Contents Operation Controls and Functions Transmitter 4.1.1. Front Panel 4.1.2. Rear Panel Receiver 4.2.1. Front Panel 4.2.2. Rear Panel Remote Control Connection Diagram Specifications Troubleshooting Finden Sie ab Seite 9. -
Page 4: Introduction
1. Introduction This wireless HDMI transmitter and receiver set uses baseband technology with a Wireless High Definition Interface (WHDI) to deliver uncompressed HD video and audio up to 15~30 metres open field, while maintaining superb, wire-equivalent quality and robustness with no latency. The transmitter and receiver both come with embedded antennas. -
Page 5: Package Contents
3. Package Contents • Wireless HDMI Transmitter unit. • Wireless HDMI Receiver unit. • 2 x 5V/2.6A DC power supply adaptors. • Operation Manual. • CR-67 Transmitter Remote • CR-68 Receiver Remote • Device Stand x 2 Page 2... -
Page 6: Operation Controls And Functions

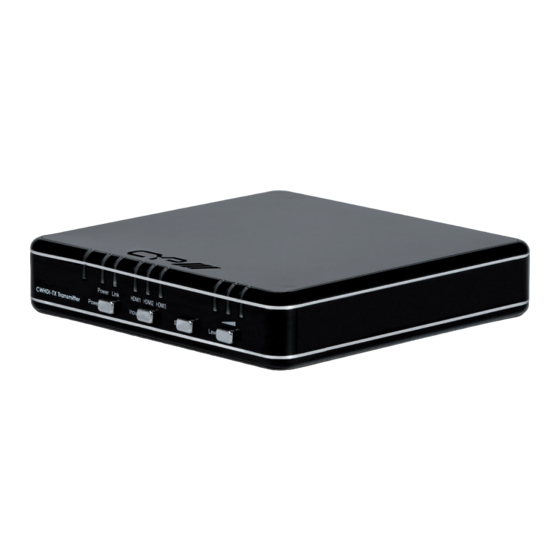

4.1 Transmitter 4.1.1 Front Panel PowerL ink HDMI1 HDMI2 HDMI3 CWHDI-TX Transmitter Power Input 1. Power button: Press to turn the system ON/OFF - paired units will both turn on/ off together when this button is pressed on either unit. -
Page 7: Rear Panel
• CEC and EDID repeater functionalities cannot be supported. • Multicast mode is not HDCP compliant. IR sensor. Power LED: The LED will illuminate when power is ON. Link LED: The LED flashes quickly during initial link procedure, flashes slowly during signal confirmation & remains solid when the link is established. -
Page 8: Receiver
4. Operation Controls and Functions 4.2 Receiver 4.2.1 Front Panel Power Link CWHDI-RX Receiver Power 1. Power button: Press to turn the system ON/OFF - paired units will both turn on/ off together when this button is pressed on either unit. 2. -
Page 9: Rear Panel
4.2.2 Rear Panel HDMI OUT DC 5V 1. HDMI output: Connect this HDMI output to the HDMI input of your display with a HDMI cable. 2. Power: Plug the 5V DC power supply into this unit and connect the adaptor to an AC wall outlet. -
Page 10: Remote Control
5. Remote Control 1. Power: Press to turn the device ON/ POWE R OFF. INPU T 2. ID: Press transmitter remote’s “ID” button for 2 seconds and then receiver remote’s “ID” for 2 seconds and wait for the system to pair. These systems are already paired before Transmitter CR-67... -
Page 11: Connection Diagram
6. Connection Diagram Page 8... -
Page 12: Specifications
7. Specifications Radio Power Transmit power is configurable up to 63mW (+18dBm) 480i/p, 576i/p, 720p, 1080i and 1080p(24fps/30fps), Video Resolutuions VGA@60/72, SVGA@60/72, XGA@60/70 Frequencies Supported 4.9 ~ 5.9 GHz Modulation OFDM MIMO with WHDITH video-modem Technology Bandwidth 20MHz Wireless Range 15 ~ 30 metres open field Antenna Transmitter: 4 transmit antennas and 1 recieve antenna... -
Page 13: Troubleshooting
8. Troubleshooting Situation Check Point/s Power LED does not illuminate when power is 1. Check the right adaptor is being used - 5V/2.6 A is the correct adaptor. 2. Check all power connectors are plugged in correctly. 3. Press the power buttons to turn on the devices After powering up Tx &... - Page 14 www.cypeurope.com...
