Summary of Contents for CYP CA-USBAT

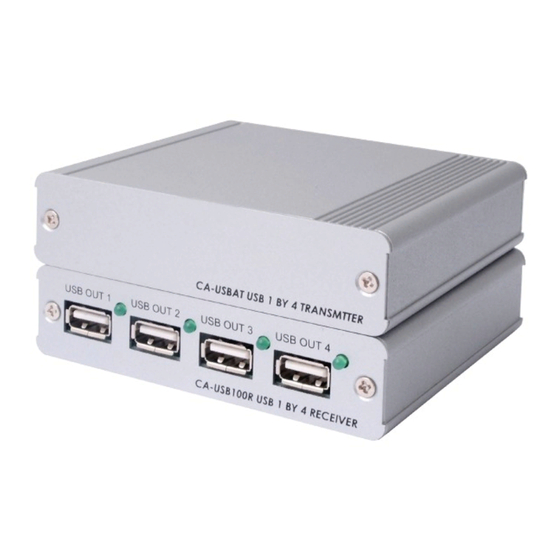

- Page 1 CA-USBAT & CA-USB100R USB over CAT5 Transmitter and Receiver Box Operation Manual CA-USBAT & CA-USB100R...
-
Page 2: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 7.1 Transmitter’s Panel ............3 Receiver’s Front Panel .......... -
Page 4: Introduction
• USB Extension over CAT5/6 100m • Control devices from far away • Host device information sharing and control 3. Package Contents • CA-USBAT x 1 • CA-USB100R x 1 • USB Cable x 1 • Adaptor x 2 •... -
Page 5: Specifications
6. Specifications Transmitter Input Port 1 x USB (B type) Output Port 1 x RJ45 Receiver Input Port 1 x RJ45 Output Ports 4 x USB (A type) ESD Protection Human body model: ± 10kV (air-gap discharge) ± 6kV (contact discharge) Power Supply 5V / 3.2A (US/EU standards, CE/FCC/UL certified) Dimensions(mm) -
Page 6: Operation Controls And Functions
7. Operation Controls and Functions 7.1 Transmitter’s Panel POWER DC 5V USB IN RJ45 OUT Power DC 5V Jack: Plug 5V 3.2A DC power supply into the unit and ① connect the adaptor to an AC outlet. USB IN: This slot is where you connect your PC or laptop with a USB A to B ②... -
Page 7: Receiver's Rear Panel
7.3 Receiver’s Rear Panel POWER DC 5V RJ45 IN Power DC 5V Jack: Plug the 5V DC power supply into the unit and ① connect the adaptor to an AC outlet. RJ45: This slot is where you connect a CAT5/6 cable, with the transmitter ②... -
Page 8: Connection And Installation
8. Connection and Installation CA-USBAT CAT5/6 150m CA-USB100R Flash Keyboard Mouse hard drive Monitor Scanner Printer... - Page 9 Acronyms Acronym Complete Term CAT5/6 Category 5 / 6 Cable Electrostatic Discharge Light-emitting Diode RJ45 Registered Jack 45 Universal Serial Bus...
