- Page 1 HDMI Over CAT5 Receiver at 150 Meters Operation Manual CA-HDMI150R...
- Page 2 TABLE OF CONTENTS 1. Introduction................1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions........... 2 4.1 Front Panel................2 4.2 Rear Panel................2 5. Specifications................3 6. Connection and Installation............ 4...
-
Page 3: Package Contents

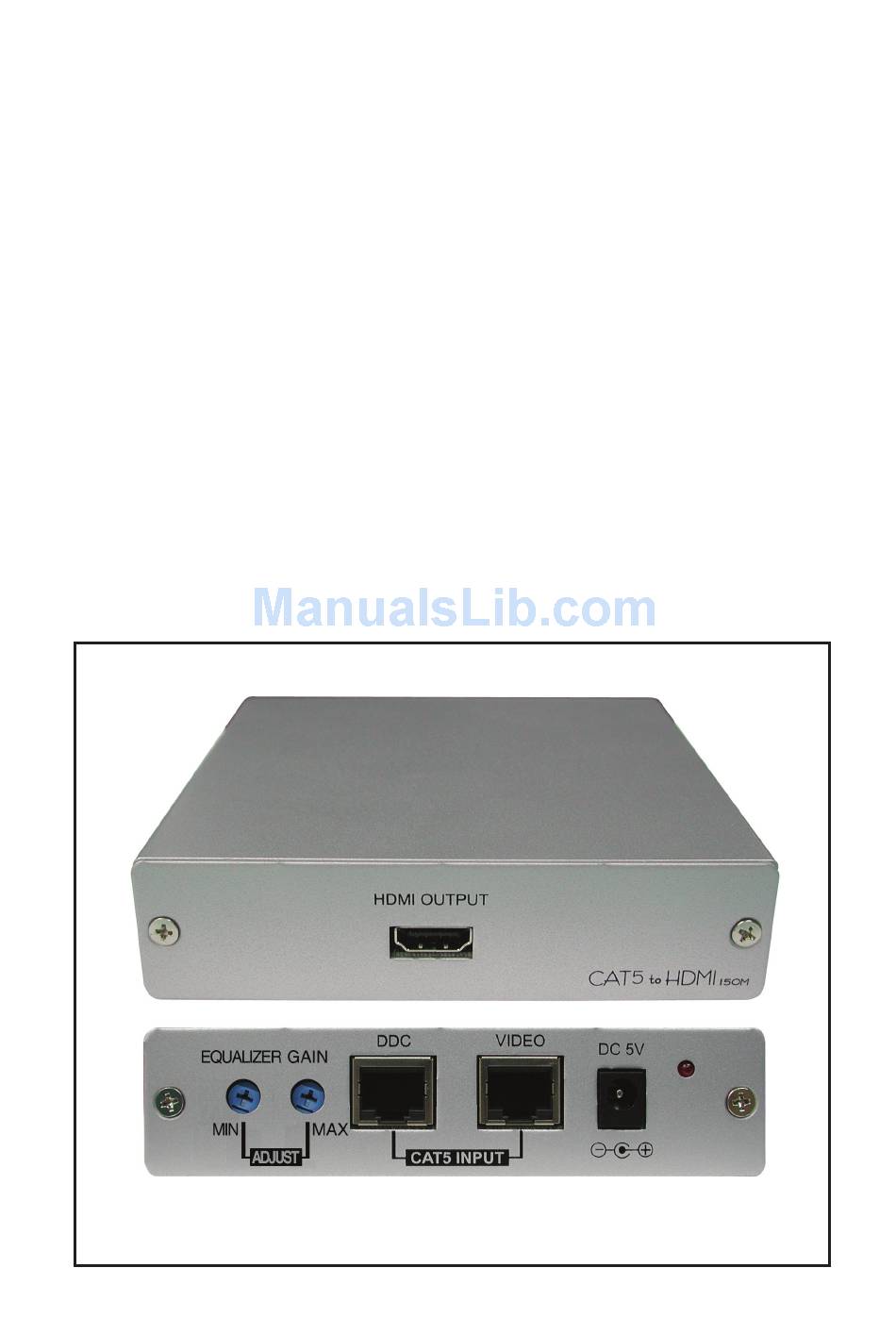

CAT-5 cables for a distance up to 150 meters. The installation of Cypress HDMI Over CAT5 is easy and quick, simply place CA-HDMIAT next to your HDTV source such as a DVD player, then place CA-HDMI150R next to your display, and get all necessary cables connected to complete and enjoy. - Page 4 4. Operation Controls and Functions 4.1 Front Panel HDMI OUTPUT to HDMI 150 1. HDMI OUTPUT: Connect the HDMI output port to the HDMI input of your display. 4.2 Rear Panel VIDEO DC 5V EQUALIZER GAIN ADJUST CAT5 INPUT 1. EQUALIZER: Use this switch to adjust signal enhancement over long distance.
-
Page 5: Specifications
5. Specifications 1. Supported resolutions: HDMI - 480i/480p, 576i/576p, 720P@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz 2. Input: 1 CAT-5 input for VIDEO, 1 CAT-5 input for DDC 3. Output: 1 HDMI female port 4. Power: 5V DC power supply 5. Dimensions: 123(W) x 125(D) x 30(H)mm 6. -
Page 6: Connection And Installation
DDC (CAT-5 Cable) VIDEO DC 5V HDMI INPUT HDMI to CAT CAT5 OUTPUT CA-HDMIAT CA-HDMIAT Front Rear 150 Meters VIDEO DC 5V EQUALIZER GAIN HDMI OUTPUT to HDMI 250 ADJUST CAT5 INPUT CA-HDMI150R CA-HDMI150R Rear Front HDMI Cable HDMI Display... - Page 7 Cypress HDMI Over CAT5 Series: Description Product HDMI Over CAT5 Transmitter CA-HDMIAT HDMI Over CAT5 Receiver at 50 meters CA-HDMI 50R HDMI Over CAT5 Receiver at 100 meters CA-HDMI 100R HDMI Over CAT5 Receiver at 150 meters CA-HDMI 150R HDMI Over CAT5 Receiver at 250 meters CA-HDMI 250R CYPRESS TECHNOLOGY CO., LTD.
