Summary of Contents for Black Box LB3104A series

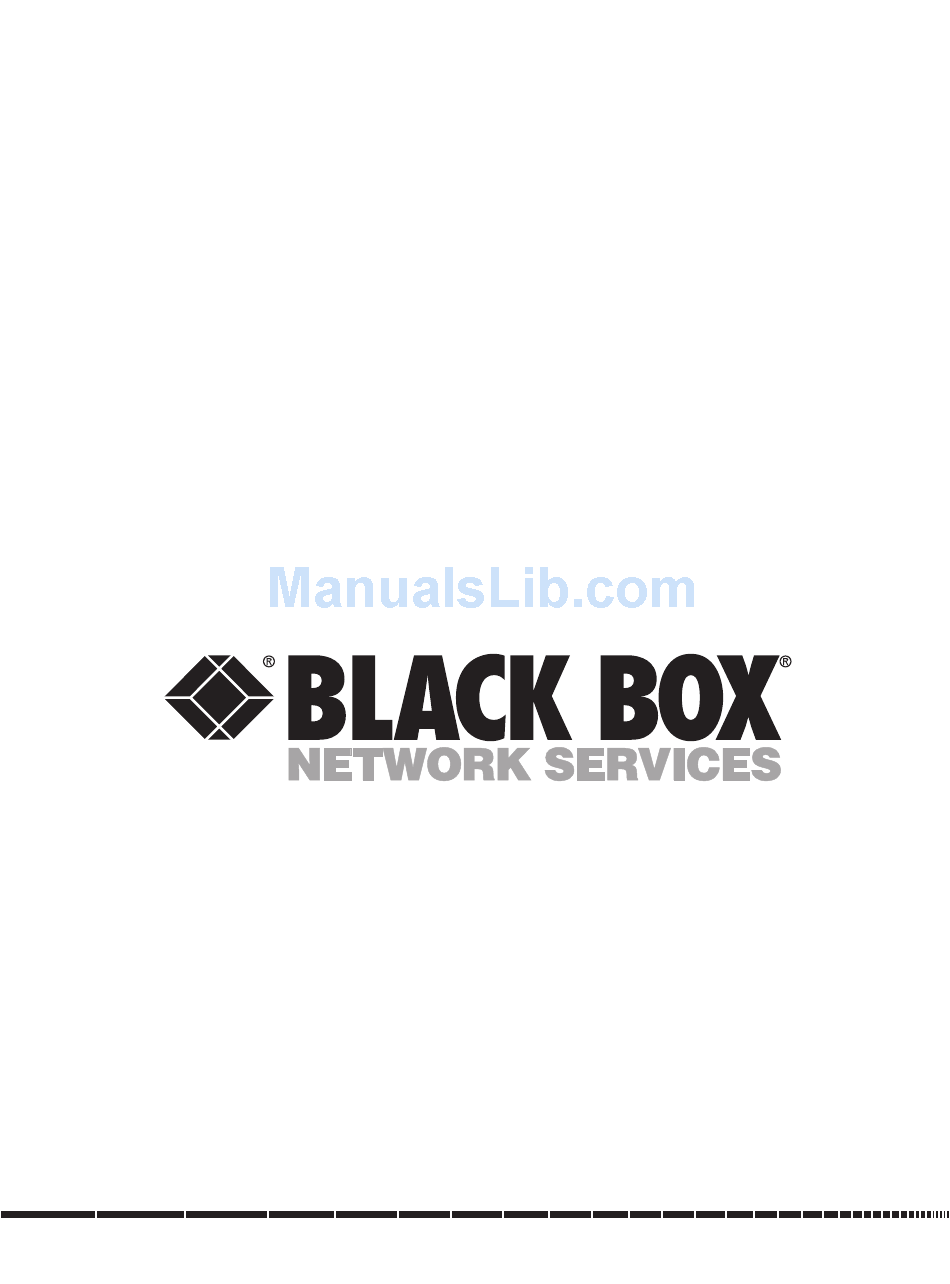

  • Page 1 © Copyright 1998. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
  • Page 2 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 SUPPORT Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 INFORMATION Web site: www.blackbox.com • E-mail: info@blackbox.com...
  • Page 4 FCC INFORMATION FEDERAL COMMUNICATIONS COMMISSION INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS This equipment generates, uses, and can radiate radio-frequency energy, and if not installed and used properly, that is, in strict accordance with the manufacturer’s instructions, may cause interference to radio communication.
  • Page 5 ETHERNET EXTENDERS—CONFIGURATION GUIDE INSTRUCCIONES DE SEGURIDAD (Normas Oficiales Mexicanas Electrical Safety Statement) 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura. 3.
  • Page 6 TRADEMARKS USED AND TELECOMMUNICATION SAFETY TRADEMARKS USED IN THIS MANUAL Any trademarks mentioned in this manual are acknowledged to be the property of the trademark owners. Telecommunication Safety The safety status of each of the ports on the Ethernet Extender is declared according to EN 41003 and is detailed in the table below: Safety Status Ports...

  • Page 7: Table Of Contents

    ETHERNET EXTENDERS—CONFIGURATION GUIDE Contents Chapter Page 1. Introduction ................................6 A General Description ..........................6 How “Single IP” Address Translation Works ..................7 1.2.1 What Single IP Does ..........................7 1.2.2 The Benefits of Single IP........................8 Solid Firewall ............................9 Ethernet Extender Features ........................9 Ethernet Extender Applications ......................11 1.5.1 Bridging ............................11 1.5.2 4-Wire Modem ..........................11 1.5.3 Single IP ............................12...

  • Page 8: Chapter Page

    CONTENTS Chapter Page 4. Security Setup Menu..............................25 Enabling TELNET Access........................26 Enabling SNMP Access ..........................27 Enabling/Disabling the Solid Firewall ....................28 5. Advanced Setup Menu ............................30 Advanced Menu and Setup Menu ......................30 Device Control Menu ..........................79 List of Operations ..........................85 Appendix A: Important ISDN Issues (For U.S. Users Only) ..................89 Which ISDN Service Should You Order? ....................89 Ordering ISDN ............................89 Provisioning ISDN..........................89...

  • Page 9: Introduction

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 1. Introduction Ethernet Extenders can be used for various bridging and routing functions, and can connect an Ethernet or Token Ring LAN to the Internet or Intranet via ISDN, Frame Relay, asynchronous or synchronous dialup, or Digital Data Service (DDS) links operating at data rates up to 1.5 Mbps. This manual gives a general introduction to the Ethernet Extender and describes how to configure it.

  • Page 10: How "Single Ip" Address Translation Works

    CHAPTER 1: Introduction 1.2 How “Single IP” Address Translation Works Single IP allows users in a small-office LAN to connect to the Internet/Intranet quickly and transparently with just one assigned IP address. 1.2.1 W IP D INGLE Single IP is an Ethernet Extender feature that translates multiple IP addresses on a small-office LAN to one single IP address on the Internet.

  • Page 11: The Benefits Of Single Ip

    ETHERNET EXTENDERS—CONFIGURATION GUIDE Configure the Ethernet Extender to dial an Internet/Intranet Access Router and to supply a user name and password over PPP. The Internet/Intranet Access Router automatically supplies the Ethernet Extender with a single temporary IP address using the IPCP protocol—the same way that a single PC would connect directly to the ISP.

  • Page 12: Solid Firewall

    CHAPTER 1: Introduction IP Applications: Web Browsing, FTP, Telnet, E-mail, News and Others Single IP allows the use of any Web browser, such as Netscape or Internet Explorer, to access the World-Wide Web. Refer to the list below for some of the types of Internet and Intranet access supported by Single IP: •...
  • Page 13 ETHERNET EXTENDERS—CONFIGURATION GUIDE • Supports backup links for bridge and router links. • Supports TELNET, allowing configuration and control of the device over WAN and LAN. Refer to Chapter 3. • Supports RADIUS. Refer to Chapter 5. • Fast configuration can be performed from a terminal emulator, and via TELNET. Refer to Chapter 3. •...

  • Page 14: Ethernet Extender Applications

    CHAPTER 1: Introduction 1.5 Ethernet Extender Applications The Ethernet Extender can be used in a large variety of applications. Some examples follow. 1.5.1 B RIDGING Two Ethernet Extenders can be used opposite each other in a standard bridging application. The Ethernet Extender connected to the larger network or to a network with connections to other networks, is the Main Ethernet Extender.

  • Page 15: Single Ip

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 1.5.3 S INGLE The Ethernet Extender can be used as a point of presence on the Internet. A home user can dial in to the Ethernet Extender, and use the Ethernet Extender Single IP feature to access the Internet. Refer to Figure 1-6. Internet Home User Solid Firewall...

  • Page 16: Configuration Introduction

    CHAPTER 2: Configuration Introduction 2. Configuration Introduction 2.1 How to Start Configuring the Ethernet Extender The Ethernet Extender can be configured as either a bridge or a router. By default, it’s configured in bridge mode. Decide whether the Ethernet Extender will be used as a bridge or a router before you start the configuration.

  • Page 17: Connecting To The Internet/Intranet As A Private Ip Net (Using Single Ip)

    ETHERNET EXTENDERS—CONFIGURATION GUIDE Preparing Your PCs • Make sure your PCs have a correctly installed TCP/IP stack such as WinSock or Chameleon. • Assign an IP address from the static IP subnet to each PC. • Make sure that each PC has the correct subnet mask. •...

  • Page 18: Initial Setup

    CHAPTER 2: Configuration Introduction 2.2 Initial Setup The Ethernet Extender features a setup program that is invoked and run from an ASCII terminal or a PC terminal emulator. The terminal/terminal-emulator is connected to the CONTROL port on the Ethernet Extender’s front panel. This section describes the procedures necessary to connect to the terminal and to access the setup program’s Main menu.

  • Page 19: Setting A Password

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 2.2.2 S ETTING A ASSWORD For first-time operation, or if no configuration password has been specified, the following message appears: WARNING: No configuration password exists. Define configuration password? (Y/N): To set a password: 1. Type Y to set a configuration password. A message appears, prompting you to enter a new configuration password.

  • Page 20: The Quick Setup Menu

    CHAPTER 2: Configuration Introduction 2.3 The Quick Setup Menu The Quick Setup menu is used to define the basic parameters for your Ethernet Extender. The Quick Setup menu allows you to adjust setup and link configuration parameters while the Ethernet Extender is in operation. The line-by-line prompting guides you throughout the procedure.

  • Page 21: Advanced Menu

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 2.4.4 A DVANCED The Advanced menu lists Ethernet Extender configuration parameters and their current values. You can change these parameters and perform advanced configuration operations not available through the Quick Setup menu. Resetting the device and software downloads are also performed via the Advanced menu. 2.4.5 V Use the options in the View menu to view configuration screens and information on interface connections, routing tables, and statistics.

  • Page 22: Quick Setup Menu

    CHAPTER 3: Quick Setup Menu 3. Quick Setup Menu The Quick Setup menu allows you to enter the minimum number of parameters needed to operate your Ethernet Extender. You can access the Quick Setup menu via: • ASCII terminal. • Telnet. For more extensive control of your Ethernet Extender, refer to Chapters 4 and 5.
  • Page 23 ETHERNET EXTENDERS—CONFIGURATION GUIDE QUICK SETUP —————- WARNING: This device automatically exits to Operational Messages 10 minutes after last keyboard action without saving parameters ‘ENTER’ - Accept parameter , ‘SPACE’ - Change parameter . WAN interface #1 - V.35 Connection type: [Uplink Link mode: [Synchronous Routing: [BRIDGE ], Protocol: [PROPRIETARY]...

  • Page 24: Link Mode

    CHAPTER 3: Quick Setup Menu The fields in the Quick Setup example are described below: 3.1.1 L Select this parameter to determine how data is transmitted across the link. There are three modes: 1. When the mode is synchronous, data bits are transmitted at a fixed rate. The sender and the receiver are synchronized.

  • Page 25: Host Ip Setup

    ETHERNET EXTENDERS—CONFIGURATION GUIDE V.24 baud rate Public Access Service Ethernet Extender Modem 28.8 kbps Figure 3-2. Setting Baud Rate. 3.1.8 H IP S ETUP LAN IP Address Select this parameter to enter the IP address. Every device on a TCP/IP network must have an address to identify it.

  • Page 26: Security Setup

    CHAPTER 3: Quick Setup Menu LAN IP Mask Select this parameter to enter the IP mask. The mask is configured automatically from the IP address class. If you want to change the default mask, enter a new mask. For example, the IP mask is usually 225.225.225.0. A mask of this sort would allow 254 hosts on the LAN.

  • Page 27: Where To Go From Here

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 3.2 Where To Go From Here If you want to.. Refer to.. Prevent management of the Ethernet Extender and entry to your Chapter 4, Security Setup Menu LAN by unauthorized users. Change the Ethernet Extender configuration parameters and Chapter 5, Advanced Setup Menu perform advanced configuration operations not available through the Quick Setup menu, reset the device, or download software.

  • Page 28: Security Setup Menu

    CHAPTER 4: Security Setup Menu 4. Security Setup Menu Quick Setup Security Setup Advanced Setup View Diagnostic Tools TELENET access SNMP access FIREWALL options Figure 4-1. Security Setup Menu Outline. The Security Setup menu allows you to control access to the Ethernet Extender and the LAN. The Ethernet Extender is protected against access by unauthorized users by disabling access via SNMP, TELNET, and Web browsers.

  • Page 29: Enabling Telnet Access

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 4.1 Enabling TELNET Access The Ethernet Extender supports TELNET. This allows the Ethernet Extender to be configured and controlled over the WAN and LAN using TCP/IP. Access to TELNET requires authentication by the device, using username and password. By default, TELNET access to the Ethernet Extender is disabled, to prevent changes being made to the unit’s configuration parameters.

  • Page 30: Enabling Snmp Access

    CHAPTER 4: Security Setup Menu 4.2 Enabling SNMP Access By default, access to the Ethernet Extender via SNMP is disabled. Blocking SNMP access prevents changes being made to the unit’s configuration parameters. Enabling SNMP access prompts the user to define SNMP management parameters.

  • Page 31: Enabling/Disabling The Solid Firewall

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 4.3 Enabling/Disabling the Solid Firewall Solid Firewall, when enabled, prevents all access from the WAN or Internet/Intranet into the small-office LAN. Outgoing traffic from the LAN will be forwarded to the WAN. Incoming traffic from the WAN will be blocked from entering the LAN.
  • Page 32 CHAPTER 4: Security Setup Menu To enable a specific application to enter the Solid Firewall (both in regular router and Single IP modes) 1. In the Firewall Forward Application List screen, press A to add an application. FIREWALL FORWARD APPLICATION LIST ( Device name - Name ) List of applications which may pass the FIREWALL.

  • Page 33: Advanced Setup Menu

    ETHERNET EXTENDERS—CONFIGURATION GUIDE 5. Advanced Setup Menu The Advanced menu contains the majority of Ethernet Extender configuration parameters. These parameters can be used to configure the Ethernet Extender in great detail. You can change these parameters and perform advanced configuration operations not available through the Quick Setup menu. You can also reset the Ethernet Extender and download software.
  • Page 34 CHAPTER 5: Advanced Setup Menu Advanced Menu Setup Device Control Host Interface Access Factory Routing/Bridging Parameters Parameters Control (Security) Economy Default Options Figure 5-3. Setup Menu Outline. To access the Setup menu: In the Advanced menu, press 1. The Setup menu appears. SETUP (Device name —...
  • Page 35 ETHERNET EXTENDERS—CONFIGURATION GUIDE WAN E CONOMY Select this option to reduce traffic over the WAN and to keep the link up only when necessary. ACTORY EFAULT PTIONS Select this option to return settings to the factory default. Advanced Menu Setup Device Control SNMP Device Control...
  • Page 36 CHAPTER 5: Advanced Setup Menu The options in the Host Parameters menu are described below. EVICE Select this option to view and/or modify the following arbitrary parameters. Device Name Select this parameter to assign an arbitrary name to Ethernet Extender for identification by the system manager;...
  • Page 37 ETHERNET EXTENDERS—CONFIGURATION GUIDE IP addresses are assigned by the Internet Network Information Center (InterNIC). InterNIC assigns the network ID. Host IDs are assigned by the network administrator. IP Mask A subnet is a portion of a network that shares a common address component. On TCP/IP networks, subnets are defined as all devices whose IP addresses have the same prefix.
  • Page 38 CHAPTER 5: Advanced Setup Menu NOTE It is very important to obtain the correct parameters from the system administrator or ISP. The most common problem when establishing an IP connection is incorrect configuration of the IP parameters and default gateway. Do not try to guess these parameters.
  • Page 39 ETHERNET EXTENDERS—CONFIGURATION GUIDE TFTP Server IP Address: 192.168.10.11 Holds file at C:\booting\boot.exe File Transfer Ethernet Extender Figure 5-6. File Transfer to and from TFTP Server. RADIUS A UTHENTICATION AND ILLING The Remote Authentication Dial-In User Service (RADIUS) is a client/server security protocol. Security information is stored in a central location, known as the RADIUS server.
  • Page 40 CHAPTER 5: Advanced Setup Menu RADIUS Server IP Address Select this parameter to enter the IP address of the RADIUS server; for example, 192.168.1.9. In addition, select this parameter to enable/disable accounting. RADIUS Authenticator Select this parameter to enter the shared secret. The shared secret is a password used by RADIUS to authenticate the client.
  • Page 41 ETHERNET EXTENDERS—CONFIGURATION GUIDE To access the Routing menu: In the Advanced menu, press 1. The Setup menu appears. In the Setup menu, press 2. The Routing menu appears. ROUTING (Device name — Name) Link 1 - IP & IPX ROUTER PPP Link 2 - IP ROUTER SLIP Setup Menu 1.
  • Page 42 CHAPTER 5: Advanced Setup Menu Link Protocol Select this parameter to assign the link protocol. Link protocols available for asynchronous link are: SLIP, CSLIP, or PPP. • SLIP — SLIP stands for Serial Line Internet Protocol. It is a simple form of encapsulation for IP datagrams on serial lines.
  • Page 43 ETHERNET EXTENDERS—CONFIGURATION GUIDE Each frame begins and ends with a flag byte whose value is 0x7e. The flag byte is followed by an address byte whose value is Oxff. The address byte is followed by a control byte whose value is 0x03. The control byte is followed by the protocol field.
  • Page 44 CHAPTER 5: Advanced Setup Menu PPP Settings This option is only available for PPP link protocol. The PPP Setting screen has the following options: • Header and Control Field Compression—This parameter is used for troubleshooting only. Do not change the entry unless there is a problem. •...
  • Page 45 ETHERNET EXTENDERS—CONFIGURATION GUIDE In Figure 6-10, the Ethernet Extender data compression is set at LCB. In the remote unit the data compression is set to Extended. Messages are sent between the 2 units, until a common data compression mode is found. •...
  • Page 46 CHAPTER 5: Advanced Setup Menu TATIC TATIONS AND STATIC STATIONS AND NETS (IP, IPX) (Device name — Name) 1. IP - 194.090.182.056 mask-255.255.255.248 interface-2/16 cost-1 2. IPX - 19490182 interface-3 cost-1 A - Add, C - Clear all, D - Delete Esc - Return to previous menu.
  • Page 47 ETHERNET EXTENDERS—CONFIGURATION GUIDE IP R OUTING ETTINGS IP ROUTING SETTINGS (Device name — Name) 1. Interface address 2. RIP mode 3. Maximum transmit unit 4. PC remote access Interface Address Select this parameter to enter an IP address for the WAN interface and one or more IP addresses for the LAN interface.
  • Page 48 CHAPTER 5: Advanced Setup Menu By sending requests for information, RIP both builds the table and updates the entries. RIP updates the table using the responses received every 30 seconds. If a router is not functioning, the packets must be redirected and sent to a second router. The routing table contains the address of a backup router.
  • Page 49 aETHERNET EXTENDERS—CONFIGURATION GUIDENAME Primary Domain Name Server (DNS)—Select this parameter to enter a primary DNS to be obtained by the remote PC during the IPCP negotiations. Secondary Domain Name Server (DNS)—Select this parameter to enter a secondary DNS to be obtained by the remote PC during the IPCP negotiations.
  • Page 50 CHAPTER 5: Advanced Setup Menu • LAN IPX Net for Frame Type—Each of these parameters specifies the IPX Nets associated with a particular frame type. Each frame type is supported by the LAN. The Ethernet Extender supplies default values for these frame types.
  • Page 51 NAME Interface Parameters Advanced Menu Setup Device Control Interface Parameters ISDN Frame Relay X.25 Module Link Setting Protocol Setting DLCI Setting Setting 1. ISDN Protocol 1. Status & SPID 2. Type 3. Connection Type 4. Connection 1. Modem Name 1. Asynchronous Timeout (sec) 2.
  • Page 52 CHAPTER 5: Advanced Setup Menu The options in the Interface Parameters menu are described below. ETTING Ethernet Extender Link Figure 5-19. Link Settings. Status Select this parameter to specify the status of a link: enabled or disabled. An enabled link transmits frames. Normally you would want all links enabled.
  • Page 53 ETHERNET EXTENDERS—CONFIGURATION GUIDE Within the designated time, the Ethernet Extender will send frames <N> times. For example, if the time is configured to 120 and the number is configured to 6, every 20 seconds a frame is sent. If there is no response, the Ethernet Extender assumes that the remote unit has failed.
  • Page 54 CHAPTER 5: Advanced Setup Menu The parity must be configured with the sending party. The parity setting of both the sender and receiver must be the same. For example if the parity was odd, and a group of bits whose total number was 6 arrived, this group would be erroneous and would be erased.
  • Page 55 ETHERNET EXTENDERS—CONFIGURATION GUIDE ISDN Features • ISDN BRI. • Standard S/T interface. • Optional U-interface eliminates the need for an external NT1 device. • Connection rate from 64 to 128 Kbps. • Protocols supported: ETSI (Europe), NTT (Japan), NI-I (U.S.), 5ESS (U.S.), DMS-100 (U.S.), V1 and Leased ISDN (I.430).
  • Page 56 CHAPTER 5: Advanced Setup Menu Main Menu Advanced Setup Device View Setup Control Reset Interface Configuration Options Parameters Reset ISDN Link Interface Protocol Setting Module Setting Answering Local Number Dialing Mode Mode Parameters Parameters Dial Back View ISDN Reset ISDN Choose the Enter Dial-Out Answer to...
  • Page 57 ETHERNET EXTENDERS—CONFIGURATION GUIDE Destination Sub-Number Select this parameter to enter the extension number of the destination phone number. Source Phone Number Select this parameter to enter the phone number of the person dialing out. This parameter is used by the destination station to identify the caller.
  • Page 58 CHAPTER 5: Advanced Setup Menu RAME ELAY Frame Relay is a form of WAN which is designed to maximize throughput and minimize cost by simplifying network processing. Ethernet Extender Frame Relay Internet Figure 5-28. Connection to the Internet over Frame Relay. Frame Relay Features •...
  • Page 59 ETHERNET EXTENDERS—CONFIGURATION GUIDE Implementing Frame Relay The diagram below maps the options in the Advanced menu that are used to configure the Ethernet Extender for operation over a Frame Relay network. Main Menu Advanced Menu Device View Setup Control Frame Relay Interface Reset DLCIs’...
  • Page 60 CHAPTER 5: Advanced Setup Menu Full Enquiry Interval Select this parameter to specify the number of polling intervals after which a full status request frame is transmitted. Polling Interval = 10 Full Inquiry Interval = 4 Ethernet Extender Frame Relay Network Status Enquiry Status Enquiry Reply 10 seconds...
  • Page 61 ETHERNET EXTENDERS—CONFIGURATION GUIDE Error Threshold Monitored Events = 5 Sliding Monitored Events Window S.E. S.E. S.E. S.E. F.S.E. S.E. S.E. Frame Frame Frame Frame Frame Frame Frame Acknowledged. Monitored Events Frame (status enquiring frames and full status enquiry frame = 5) Unacknowledged.
  • Page 62 CHAPTER 5: Advanced Setup Menu DLCI P RAME ELAY ARAMETERS The parameters in the Frame Relay DLCI Parameters menu are described below. DLCI Select this parameter to specify the DLCI number. State Select this parameter to specify whether the DLCI is Enabled or Disabled (for receive/transmit). Select this parameter to specify the maximum amount of data in bits which the network guarantees to transfer during the measurement interval (the measurement interval is usually one second).
  • Page 63 ETHERNET EXTENDERS—CONFIGURATION GUIDE To access the Access Control menu: In the Advanced menu, press 1. The Setup menu appears. In the Setup menu, press 4. The Access Control menu appears. ACCESS CONTROL (Device name — Name) External access security Device security identity Security Host/Guest Advanced PC to LAN Bridge link security Script setup...
  • Page 64 CHAPTER 5: Advanced Setup Menu • PAP (Password Authentication Protocol)—PAP is the most basic form of authentication, in which a user’s name and password are transmitted over a network and compared to a table of name-password pairs. Typically, the passwords stored in the table are encrypted. The main weakness of PAP is that both the username and password are transmitted in an unencrypted form.
  • Page 65 ETHERNET EXTENDERS—CONFIGURATION GUIDE Command Code The command codes are described below. waitcase pattern Waits until the specified case-sensitive pattern is received from the remote host. Then, forwards the next command. The maximum pattern length is 24 characters. Or, waits until timeout (default = 15 seconds). The link then disconnects and the Ethernet Extender performs the same actions as required during authentication failure.
  • Page 66 CHAPTER 5: Advanced Setup Menu WAN Economy Menu Advanced Menu Setup Device Control WAN Economy Fast Connection IP/IPX Filters Retransmission On Demand Spoofing Frame Limit 1. Block and 1. Start 1. Keep Alive Forwarding Connection Mode 2. RIP/SAP 2. Link to Link 2.
  • Page 67 ETHERNET EXTENDERS—CONFIGURATION GUIDE WAN ECONOMY (Device name — Name) Use these features: - to reduce traffic over the WAN to a minimum and increase throughput - to keep the link up only when it is required Filters Connection on demand Spoofing Fast retransmission frame limit: 2 ESC - Return to previous menu...
  • Page 68 CHAPTER 5: Advanced Setup Menu Advanced Filters are used to regulate traffic in both directions. (Refer to Figure 5-36). • From LAN to the Link. Using filters here will forward or block traffic from the LAN outwards. • From Link to the LAN. Using filters here will forward or block traffic from the link inwards. Using a variety of parameters, Advanced Filters can be used to regulate different protocols, to totally or partially block traffic, and to control traffic between links.
  • Page 69 ETHERNET EXTENDERS—CONFIGURATION GUIDE Multiple Filters Up to 18 filters can be defined. If there are 2 filters which have contradictory operations, forwarding takes precedence over blocking. Example: You want to allow only one particular user on the small-office LAN to access the Internet for FTP purposes. To ensure that no one else is able to access the Internet, create a blocking filter for all traffic going to the link.
  • Page 70 CHAPTER 5: Advanced Setup Menu UICK ILTERS There are 4 steps in defining a Quick Filter: 1. From the Advanced Setup menu, choose Set up→WAN Economy→Filters. 2. Configure the operation. 3. Configure the broadcast control. 4. Configure the Quick Filter parameters. FILTERS (Device name - Name) 1.
  • Page 71 ETHERNET EXTENDERS—CONFIGURATION GUIDE To configure the Quick Filter parameters: Quick Filters are defined per protocol. Configure each protocol that you want to block or forward. 1. From the Filters menu, choose Quick Filters. 2. To toggle between No Filters/Forward/Block, press the number of the protocol that you want to filter. QUICK FILTERS (Device name - Name) Choose the protocols you want to block or forward!!:...
  • Page 72 CHAPTER 5: Advanced Setup Menu ADD FILTERS (Device name - Name) ENTER Enter data Toggle (parameters inside [] ) Next line (skip this one) SPACE Move right BACKSPACE - Move left Return to previous menu Filter ID - • Protocol—The protocol on which the filter operates. •...
  • Page 73 ETHERNET EXTENDERS—CONFIGURATION GUIDE NOTE Connect and disconnect are only relevant to Connection on Demand. When accessed through the Filter menu, only they appear disabled. Refer to Connection on Demand on page 72 for more information. • Interface—The area where the filters will act. If you want to filter traffic going to the LAN, choose LAN. If you want to filter traffic going to the link, choose Link.
  • Page 74 CHAPTER 5: Advanced Setup Menu • Mask—A mask is a test pattern that is used to allow certain frame patterns only. You define a code against which the frame is compared. To create a mask, toggle to “Yes.” 3 pairs of codes and offsets must be created. The offset defines the point in the frame at which the comparison is made.
  • Page 75 ETHERNET EXTENDERS—CONFIGURATION GUIDE ONNECTION ON EMAND In order to save money, you may want to limit the time that a link is kept open. COD allows you to determine the traffic conditions that open and close the link. Using COD, a line is opened only when traffic conditions fulfill specified conditions.
  • Page 76 CHAPTER 5: Advanced Setup Menu Terminate Connection Terminate Connection is used to determine under which conditions a link terminates. Termination takes place only after a physical connection is made. Terminate Connection has 4 options: • Never—The line is never terminated. Never is usually used only when Upon Power Up is used. •...
  • Page 77 ETHERNET EXTENDERS—CONFIGURATION GUIDE Example 1: A company needs their Ethernet Extender to be connected to the Internet 24 hours a day. Therefore the following must be defined: • Start Connection is Upon Power Up. • Terminate Connection is Never. The connection is permanent ISDN Internet Ethernet Extender...
  • Page 78 CHAPTER 5: Advanced Setup Menu Example 3: The company management wants to allow only the PC with the IP address 1.2.3.4 access to the Internet. In addition, the connection to the Internet is to be terminated if 3 frames every 60 seconds are not transmitted from Using the Specific Frame to Forward option ensures that only the specified PC has access this PC.
  • Page 79 ETHERNET EXTENDERS—CONFIGURATION GUIDE The connection is manual Internet Ethernet Extender Modem Connection is terminated if no frame passes within 30 seconds Figure 5-40. Manual Connection. IP/IPX Spoofing Spoofing is a technique used to reduce network overhead, especially in wide-area networks (WANs). Some network protocols send frequent packets for management purposes.
  • Page 80 CHAPTER 5: Advanced Setup Menu The parameters in the Spoofing menu are described below: Keep Alive (IPX) Keep Alive Mode Select this parameter to enable or disable the Keep Alive mode. Keep Alive mode allows the remote user to remain on the local server station list for a specified period of time during link disconnection. Timeout The amount of time inactive PC to LAN links are kept open when the Ethernet Extender is configured as a bridge.
  • Page 81 ETHERNET EXTENDERS—CONFIGURATION GUIDE RANSMISSION RAME IMIT This option allows you to insert the maximum number of acknowledge frames in the buffer to prevent unnecessary retransmissions on the WAN. ACTORY EFAULT The Factory Default menu allows you to change all configuration parameters back to their factory defaults. To access the Factory Default menu: 1.

  • Page 82: Device Control Menu

    CHAPTER 5: Advanced Setup Menu 5.2 Device Control Menu Advanced Menu Setup Device Control Upload Download Software Reset Control Terminal Device Device Download Options Other Device Type Parameters Parameters from to TFTP Server TFTP Server 1. VT-100, 1.Download from UT-200, VT-220 1.
  • Page 83 ETHERNET EXTENDERS—CONFIGURATION GUIDE Software Download SOFTWARE PARAMETERS IN THE DOWNLOAD (Device name - Name) The parameters in the download from TFTP Server The parameters in the XMODEM via control port (BOOT Manager) The parameters in the download software to ISDN module ESC - Return to previous menu Choose one of the above : Select this option to download a new software version.
  • Page 84 CHAPTER 5: Advanced Setup Menu The options in the Software Download menu are described below: TFTP S OWNLOAD FROM ERVER TFTP is a IP/UDP client-server application. The unit is a TFTP client. Operating opposite the client, you need a TFTP server connected to the LAN or WAN interface via an IP network. TFTP Server IP Address: 192.168.10.11 Holds file at C:\booting\boot.exe...
  • Page 85 ETHERNET EXTENDERS—CONFIGURATION GUIDE During the process, the new program code is downloaded to the FLASH backup partition, thus erasing its previous contents. Upon completion, the newly downloaded FLASH partition becomes active, while the old version’s partition becomes backup. The device automatically resets, running the new program stored in the active partition. During the download process, a counter shows the number of packets that have passed.
  • Page 86 CHAPTER 5: Advanced Setup Menu DOWNLOAD TO ISDN MODULE (Device name - Name) ISDN Module 2 ISDN Module 3 ISDN Module 4 Choose one of the above: 1 You have chosen ISDN Module 2. The device will be STOPPED now, the existing ISDN software will be ERASED, and you will be able to download new software to the ISDN module using XMODEM protocol.
  • Page 87 ETHERNET EXTENDERS—CONFIGURATION GUIDE Device Configuration Parameters Upload/Download This option allows you to save the device configuration in a file or load a saved configuration to the device, using the TFTP protocol. TFTP is an UDP/IP client-server application. The unit is a client TFTP. Operating opposite the client, you need to connect a TFTP server to the LAN or WAN interface via an IP network.

  • Page 88: List Of Operations

    CHAPTER 5: Advanced Setup Menu NOTE Upon completion of the download process, the unit performs reset. The new parameters only come into effect after resetting. Reset Options Select this option to reset the device, link, or interface module. The interface module reset relates to ISDN options only.
  • Page 89 ETHERNET EXTENDERS—CONFIGURATION GUIDE To… You Press… Routing Change link protocol to SLIP 1.2.1.1.1 Change link protocol to CSLIP 1.2.1.1.2 Change link protocol to PPP 1.2.1.1.3 Change link cost/metric 1.2.1.3 Set header and control field compression 1.2.1.4.1 Set protocol field compression 1.2.1.4.2 Set IP compression 1.2.1.4.3...
  • Page 90 CHAPTER 5: Advanced Setup Menu To… You Press… Define a link as a host or guest 1.4.3.1 Work with scripting tool 1.4.4 WAN Economy Block/forward filters 1.5.1.1 IP broadcast control 1.5.1.2 Quick filters—IP 1.5.1.3.1 Advanced filters 1.5.1.4 Set connection start condition to always 1.5.2.1.1 Set connection start condition to never 1.5.2.1.2...
  • Page 91 ETHERNET EXTENDERS—CONFIGURATION GUIDE To… You Press… DEVICE CONTROL Download new software Upload device parameters to TFTP server Download device parameters from TFTP server Reset device 3.3.1 Reset link 3.3.2 Reset interface module 3.3.3 Set terminal type to VT-100, UT-200, VT-220, ANSI terminals 3.4.1 Set terminal type to VT-52, IBM 3101 terminals 3.4.2...

  • Page 92: Appendix A: Important Isdn Issues (For U.s. Users Only)

    APPENDIX A: Important ISDN Issues Appendix A: Important ISDN Issues (For U.S. Users Only) A.1 Which ISDN Service Should You Order? Your telephone company can offer one or more of the following ISDN switch protocols: • National ISDN-1 (NI-1) • AT&T Multipoint (5ESS) •...

  • Page 93: A.3 Provisioning Isdn

    ETHERNET EXTENDERS—CONFIGURATION GUIDE A.3 Provisioning ISDN The Ethernet Extender passed the interoperability and ISDN Ordering Codes (IOC) tests at Bellcore with all three North American switches (AT&T, Northern Telecom, and Siemens). The IOC program is designed to simplify ordering an ISDN line for National ISDN. The Ethernet Extender is registered at Bellcore under packages R and EZ1.
  • Page 94 APPENDIX A: Important ISDN Issues An inconsistency exists between the ISDN protocols used on different types of switches. National ISDN-1 standard does not allow access to both B channels with only one SPID. If you use National ISDN-1 or AT&T Multipoint protocols on a 5ESS switch, it is possible that you will receive only 1 SPID for both B channels.

  • Page 95: Appendix B: Boot Manager

    ETHERNET EXTENDERS—CONFIGURATION GUIDE Appendix B: BOOT Manager B.1 Preface The Ethernet Extender includes a Dual Image Flash, capable of storing two different versions of software in two different partitions. Upon reset, the Ethernet Extender automatically runs the program stored in the primary (active) partition. New software versions are loaded into the secondary (backup) partition.

  • Page 96: Rescue

    APPENDIX B: BOOT Manager 2. Press 1. The Software Download menu appears. SOFTWARE DOWNLOAD (Device name - Name) Download from TFTP Server XMODEM via control port (BOOT Manager) Download software to ISDN module 3. Press 2 to display the BOOT Manager menu. B.2.2 R ESCUE If the Ethernet Extender does not respond properly, try the Rescue option:...

  • Page 97: Load New Software

    ETHERNET EXTENDERS—CONFIGURATION GUIDE B.3.1 L OFTWARE Select this option to download new software via the control port using the XMODEM protocol. During the process, the new program code is downloaded to the FLASH secondary partition, thus erasing its previous contents. Upon completion, the newly downloaded FLASH partition becomes the primary partition, while the old version’s partition becomes the secondary partition.

  • Page 98: Reactivate Second Partition

    APPENDIX B: BOOT Manager B.3.4 R EACTIVATE ECOND ARTITION Select this option to turn the secondary partition into the primary partition (and vice versa). In this way you can return to the previous software version permanently. This command may be executed up to 16 times, after which downloading of the new software will be required. Therefore avoid using this option for a one-time run of the old version (use the Run Second Partition option for that purpose).

  • Page 99: Exit

    ETHERNET EXTENDERS—CONFIGURATION GUIDE Change your terminal baud rate and press Enter 2 or 3 times to ensure that the device identifies the new value. NOTE The terminal emulator of Windows 95—HyperTerminal—has a bug: After changing baud rate the status line presents the new value, but this value will not come into effect unless you perform the disconnect and connect commands immediately after performing the change.
