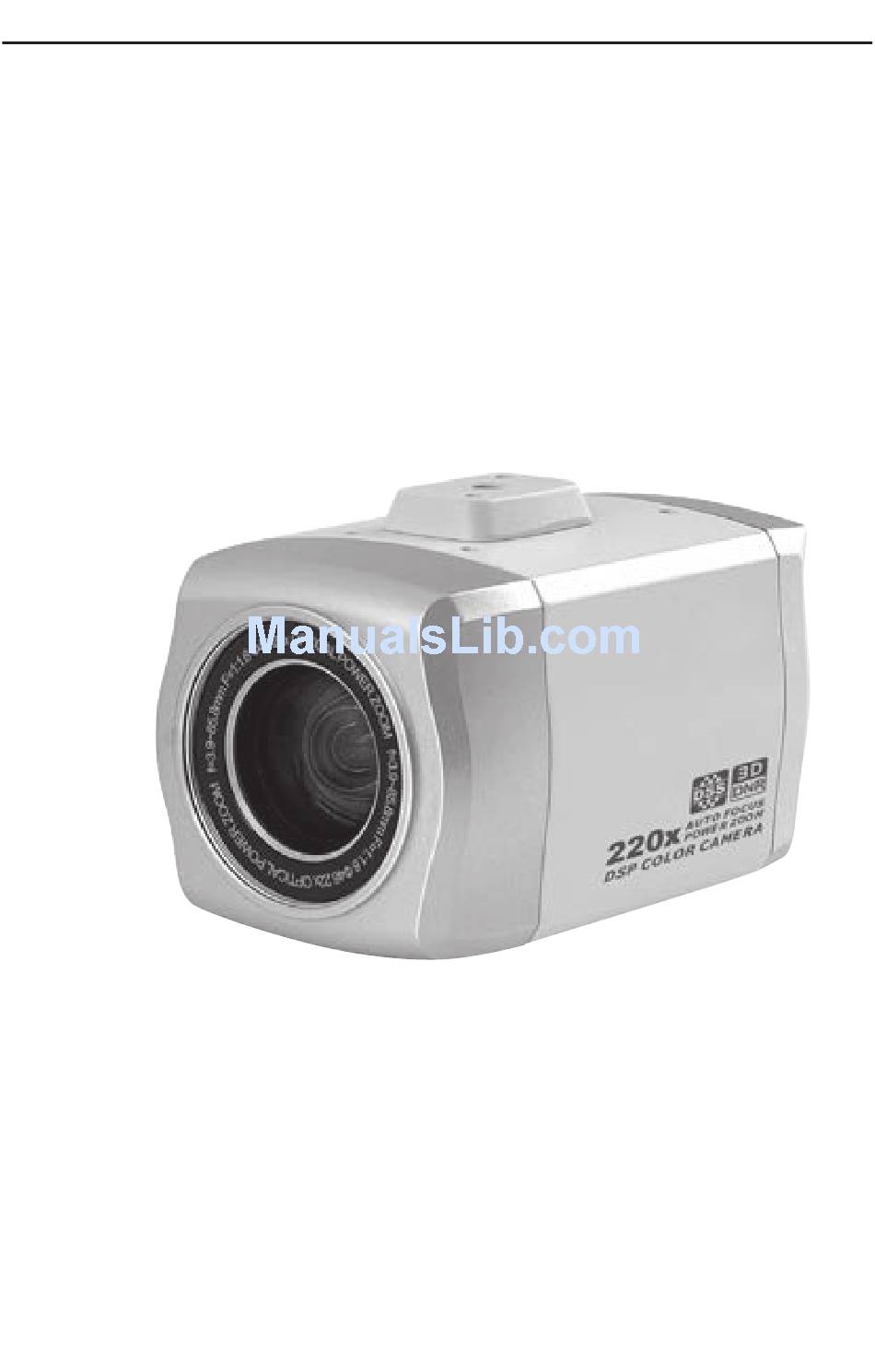

220X AUTO FOCUS
ZOOM COLOR CAMERA
Operation Manual
High Resolution WDR - Color Camera
with 22x Optical and 10x Digital - Zoom Lens
Than k you f or ch o o si n g o u r hi g h q u a lit y c a m e r a .
B e f o r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e , p l e a s e r e a d a n d
follow th es e in str u cti o n s.
M148-ZAK220-001
Advertisement
Table of Contents
Related Manuals for KT&C KPC-ZAK220
Summary of Contents for KT&C KPC-ZAK220
- Page 1 M148-ZAK220-001 220X AUTO FOCUS ZOOM COLOR CAMERA Operation Manual High Resolution WDR - Color Camera with 22x Optical and 10x Digital - Zoom Lens Than k you f or ch o o si n g o u r hi g h q u a lit y c a m e r a . B e f o r e a t t e m p t i n g t o c o n n e c t o r o p e r a t e , p l e a s e r e a d a n d follow th es e in str u cti o n s.
-
Page 3: Cautions
Cautions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note - This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 4 Cautions Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.
-
Page 5: Table Of Contents
Contents Cautions ··························································· 3 1 General··························································· 6 1.1 Product Overview·········································· 6 1.2 Features····················································· 6 1.3 Specifications··············································· 6 1.4 Dimensions·················································· 7 1.5 Back panel controls and connectors····················· 8 2 Installation························································ 9 2.1 Power························································ 9 2.2 Video························································· 9 2.3 Remote Control············································ 10 2.3.1 RS-485················································... -
Page 6: General
1 GENERAL 1.1 PRODUCT OVERVIEW The is a high resolution color camera equipped with a 22x auto-focus zoom lens and 10 x digital zoom. Many advanced features allow utilizing the in a wide range of CCTV - applications. 1.2 FEATURES •... -
Page 7: Dimensions
1 GENERAL 1.4 DIMENSIONS 66.0 110.8... -
Page 8: Back Panel Controls And Connectors
1 GENERAL 1.5 BACK PANEL CONTROLS AND CONNECTORS MENU key Arrow keys 12V / GND T / W / N / F Control inputs Video output BNC Arrow keys T / W Buttons for zoom control, in OSD menu row selection up/down Arrow keys N / F Buttons for focus control, in OSD menu change of... -
Page 9: Installation
2 INSTALLATION 2.1 POWER Connect a stabilized 12 VDC power supply (500mA or higher) to the power terminal. 2.2 VIDEO INTERMEDIATE END MONITOR VIDEO VIDEO Connect the video output (BNC) with 75 Ohm video coax cable with DVR, monitor or other equipment with video input. Please take care for correct 75 Ohm termination. -
Page 10: Remote Control
2 INSTALLATION 2.3 REMOTE CONTROL The camera provides an input for RS-485 control with Pelco-D/ P protocol. Further on the lens can be controlled by control devices with 5 VDC voltage (PTZ-receiver, control keyboards with DC output). The day / Night mode can be switched by an external contact. 2.3.1 RS-485 Connect the RS-485 input with twisted pair cable to the control device. -
Page 11: Dc-Lens Control
2 INSTALLATION 2.3.3 DC-Lens control The lens can be controlled by control devices with 5 VDC voltage (PTZ-receiver, control keyboards with DC output). Please check the control device to correct output voltage (+/- 5VDC max). 2.3.3 Day- / Night switching The day/night switching can be controlled by an external dry contact. -
Page 12: Camera Setup
3 CAMERA SETUP Zoom tele Focus near Focus far MENU Zoom wide 3.1 ZOOM The key T is used for zoom in, W for zoom out. 3.2 FOCUS The key N focuses the lens in near distance, F key focuses in far distance. -
Page 13: Osd Setup Menu
3 CAMERA SETUP 3.3 OSD SETUP MENU 3.3.1 OSD display Function Format Description Function Format Description Auto Focus Normal ② Motion Interval AF Motion Detected Focus Optical Zoom Zoom Trigger AF Zoom ③ Ration Digital Zoom Manual Focus ④ ID:000 ~ ID:255 Camera ID ⑤... -
Page 14: Menu Structure
3 CAMERA SETUP 3.3.2 Menu Structure SETUP ┛ 1. FOCUS ┛ 2. EXPOSURE 3. WHITE BAL 4. D-WDR/BLC 5. DAY&NIGHT AUTO ┛ 6. IMAGE ┛ 7. SPECIAL 8. RESET ┛ 9. EXIT FOCUS AF INTERVAL FOCUS MODE ZOOM TRIG ZOOM START .|.. - Page 15 3 CAMERA SETUP D&N VIDEO D&N AUTO DAY & NIGHT VIDEO ┛ D->N LEVEL ….|..176 DETECT MODE D<- N LEVEL ….|..76 DWELL TIME ..|…… 5 ┛ RETURN BURST ┛ RETURN SMART IR AREA SMART IR H. START IMAGE V.
-
Page 16: Setup - Menu Operation
3 CAMERA SETUP 3.3.3 Setup - Menu Operation MENU Press the key MENU for opening the OSD setup menu. The screen shows the main setup menu. NEAR / FAR SETUP 1. FOCUS 」 2. EXPOSURE 」 3. WHITE BAL ATW / AWB / PWB」/ MWB」 / IWB / OWB 4. -
Page 17: Focus
3 CAMERA SETUP 3.3.3.1 FOCUS FOCUS FOCUS MODE AUTO/INTERVAL」/ZOOM TRIG/MANUAL ZOOM START ...l... 1 ~ 22 ZOOM STOP ...l... 1 ~ 220 ZOOM SPEED SLOW / NORMAL / FAST / V.FAST D-ZOOM OFF / ON MIN. DIST 1CM/10CM/50CM/1M/2M/3M/5M/10M/INF RETURN 」 FOCUS MODE Focus operation mode AUTO... -
Page 18: Exposure
3 CAMERA SETUP 3.3.3.2 EXPOSURE EXPOSURE SHUTTER 256FLD / ... / 2FLD / AUTO / OFF / FLK / ... / 1 / 100000 IRIS AUTO / MANUAL」 AUTO / MANUAL」 MAX. AGC OFF / LOW / MIDDLE / HIGH / SUPER MAX. -
Page 19: White Balance
3 CAMERA SETUP 3.3.3.3 White Balance WHITE BAL MODE PUSH BLUE RETURN 」 MODE Operation mode of white balance ATW: Automatic White Balance in temperature range 2400°K to 12000°K AWB: Temperature range is broader than ATW. INDOOR: Preset setting for indoor applications OUTDOOR: Preset setting for outdoor applications PUSH: One-time, manual started white adjustment, start in line PUSH... -
Page 20: D-Wdr/Blc
3 CAMERA SETUP 3.3.3.4 D-WDR/BLC D-WDR / BLC MODE D-WDR LEVEL ···l··· 9 AREA DISP. MODE RETURN 」 Mode: D-WDR Digital Wide Dynamic Range for balancing strong light differences in scenery Level Adjustment of WDR level D-WDR / BLC BLC AREA MODE LEVEL MIDDLE... - Page 21 3 CAMERA SETUP D-WDR / BLC MODE HSBLC LEVEL ···l··· 4 AREA 」 DISP. MODE ALL DAY RETURN 」 Mode: HSBLC Highlight suppression, strong light sources (e.g. car lamps) will be blacked out in image Level Sensitivity trigger level in 9 steps Area Adjustment of monitored area for HSBLC in a grid 8x8 H.START: Position of 1.
-
Page 22: Day& Night
3 CAMERA SETUP 3.3.3.5 DAY& NIGHT D&N AUTO MODE AUTO DETECT MODE VIDEO DWELL TIME ···l······ 5 D>N LEVEL ······l··· 176 D<N LEVEL ····l····· 76 BURST RETURN 」 MODE AUTO: Automatic day/night switching COLOR: day / color mode BW: night / b/w mode EXTERNAL: Switching by external contact DETECT MODE VIDEO: In mode AUTO the D/N switching is controlled by... -
Page 23: Image
3 CAMERA SETUP 3.3.3.6 IMAGE IMAGE SMART IR 」 3 DNR 」 FREEZE ROTATE SHARPNESS ······l··· 15 NEGATIVE RETURN 」 SMART IR Mode not supported 3DNR Digital Noise Reduction MODE: ON : Noise reduction deactivated LEVEL: Level adjustment for noise reduction, range 0~100 FREEZE ON: Freeze of current image ROTATE... -
Page 24: Special
3 CAMERA SETUP 3.3.3.7 SPECIAL SPECIAL CAM ID BAUDRATE 9600 LANGUAGE TITLE 」 PRIVACY 」 MOTION 」 OSD SET 」 RETURN 」 CAM ID RS-485 address of camera, range 0~255 BAUDRATE Baud rate of RS-485 transmission, 2400, 4800, 9600, 19200 or 38400. - Page 25 3 CAMERA SETUP PRIVACY Privacy zone adjustment, up to 8 areas can be masked. PRIVACY MASK NO DISP MODE INT.LOCK AREA 」 COLOR TRANSPARENT RETURN 」 MASK NO: Selection privacy zone 1~8 for setup. DISP MODE: OFF: Privacy zone not active. NON.LOCK / INT.LOCK: Privacy zone active.
-
Page 26: Reset
3 CAMERA SETUP OSD SET Display options OSD SET CAM ID ZOOM MAG FUNC OSD OSD COLOR RETURN 」 CAM ID: The RS-485 address will be displayed. ZOOM MAG: In case of lens operation the zoom position appears for 5 s. FUNC OSD: In case of lens operation the status icons appear for 5 s.
