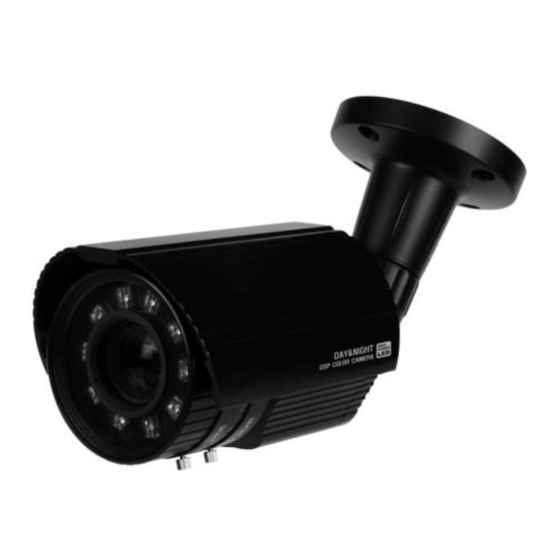

KT&C KPC-N751NUB Operation Manual

High performance super night vision camera
Hide thumbs

Advertisement

Quick Links

Download this manual

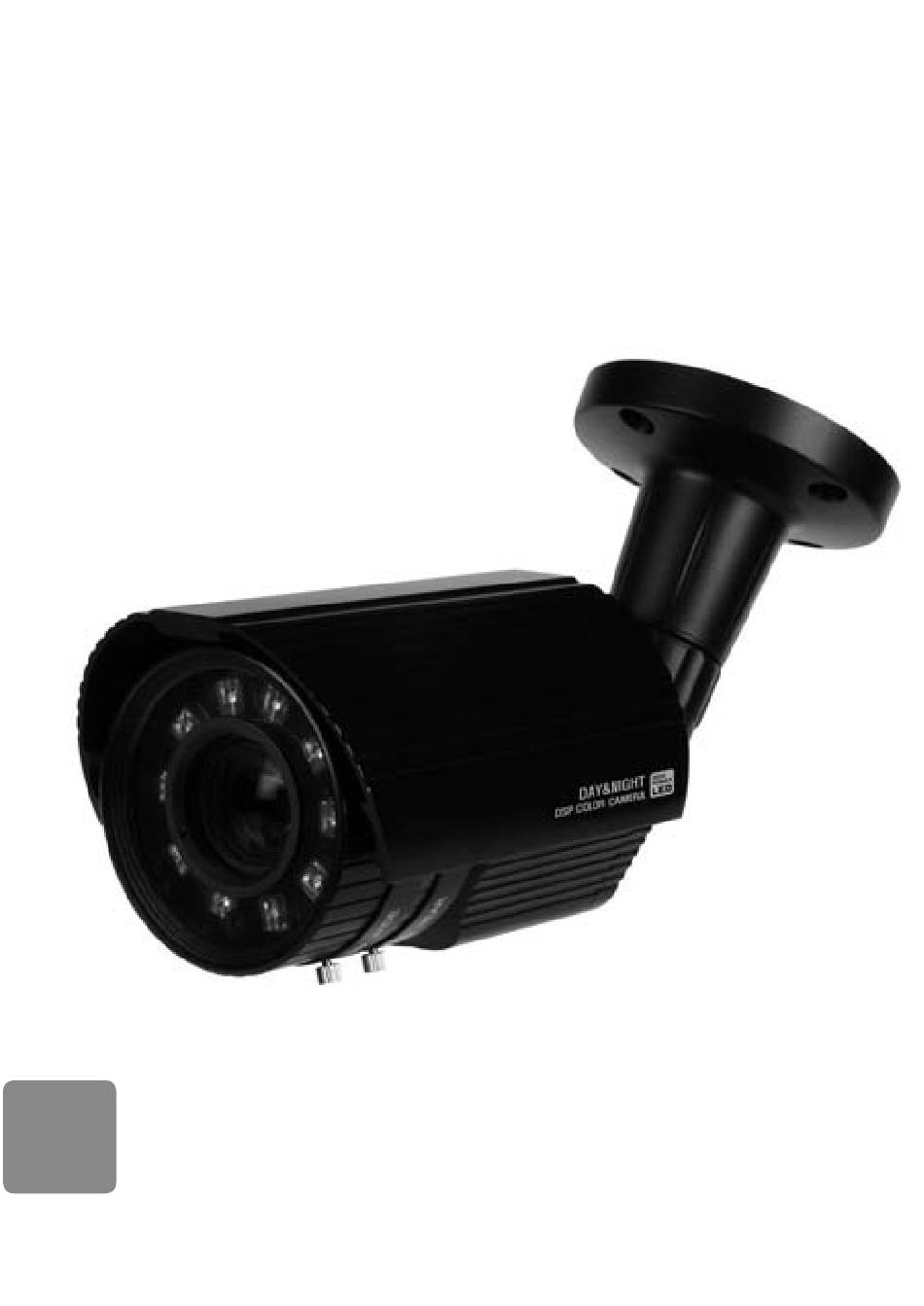

HIGH PERFORMANCE
Super Night Vision Camera
OPER ATI ON M ANUAL
HIGH
POWER
LED
Th ank you for ch o o sin g o u r h ig h q u a li ty c a m e r a . B e fo r e a tte m p t in g
to co nnect oper a te th is u n it, p le a se r e a d a n d fo l lo w th e se i n str u cti o n s.
M 1 4 5 - N7 5 1 - 0 0 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the KPC-N751NUB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KT&C KPC-N751NUB

Summary of Contents for KT&C KPC-N751NUB

  • Page 1 M 1 4 5 - N7 5 1 - 0 0 1 HIGH PERFORMANCE Super Night Vision Camera OPER ATI ON M ANUAL HIGH POWER Th ank you for ch o o sin g o u r h ig h q u a li ty c a m e r a . B e fo r e a tte m p t in g to co nnect oper a te th is u n it, p le a se r e a d a n d fo l lo w th e se i n str u cti o n s.
  • Page 2 CAU T ION These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Use Class 2 Power Supply Only...
  • Page 3 C O NT E NT S 1 . CA UTIO NS 2 . IMPORTA NT SAF E T Y I N STR U CTI ONS 3 . FEATURE S 4 . COMPONENT S 5 . NA ME AN D F UNCT I ON 6 .
  • Page 4 1 . C AUT IO N S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
  • Page 5 1 . C AUT IO N S Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.

  • Page 6: Important Safety Instruction

    2 . IMP O R TA NT S A FE T Y I NS T RU C T IO N 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth.
  • Page 7 3 . F E AT U R E S • 1/3  960H SONY EXview HAD CCD II • High Resolution of 700TV Lines • OSD Function • Multi Language (ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE) • 2DNR •...

  • Page 8: N Ame A N D Fu Nc T I O N

    5 . N AME A N D FU NC T I O N ② ① ① S uns hi eld ② C able C o nc eale d T hr u B r ac ke t ③ LE D : 1 0ea ④...
  • Page 9 5 . N AME A N D FU NC T I O N • Heater Heater Built in heater protects the camera from low temperature. (Operating temperature with Heater:-40℃) • External Zoom & Focus Adjustable External Zoom & Focus Adjustable...
  • Page 10 6 . INS T AL LA TI O N • MOUNTING POSITION 360 ˚PAN 90 ˚TLIT 90 ˚TLIT 360 ˚PAN...
  • Page 11 6 . INS T AL LA TI O N • MONITOR CONNECTION DUAL(DC12V/AC24V) DC 12V POWER SUPPLY or AC 24V POWER SUPPLY DC12V/AC24V VIDEO IN MONITOR DC 12V POWER SUPPLY or AC 24V POWER SUPPLY DC12V/AC24V VIDEO IN MONITOR BNC FEMALE DC12V RS485 DC 12V POWER SUPPLY...
  • Page 12 7 . D IM EN S I O N S Unit : mm 98.6 10 POWER LED c el l Photo 126.0 (256.5) M12XP1.25 (2EA) Ø95...

  • Page 13: Specification

    8 . SPE CIF I C A TI ON Signal Format NTSC Image Device 1/3˝ 960H SONY EXview HAD CCD II Scanning System 2 : 1 Interlace Scanning Frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50Hz(V) Total Pixels 1020(H) X 508(V) 1020(H) X 596(V) Effective Pixels 976(H) X 494(V) 976(H) X 582(V)

  • Page 14: Os D M An Ua L

    9 . OS D M AN UA L GENERAL STRUCTURE SETUP FOCUS ADJUST FOCUS VALUE: 28 >FOCUS ADJUST [┛] EXPOSURE [┛] WHITE BALANCE [┛] [┛] DAY&NIGHT [┛] >FOCUS WINDOW IMAGE [┛] RETURN SPECIAL [┛] FACTORY DEFAULT EXIT EXPOSURE ... 7 >BRIGHTNESS ...
  • Page 15 9 . OS D M AN UA L CAM TITLE [TITLE LOCATION] IMAGE 0123456789ABCDEFGHIJK LMNOPQRSTUVWXYZ!()<> TITLE SPA>> <<BAK >MIRROR TITLE SET DNR LEVEL LOCATION [┛] [U] [D] [L] [R] [M] < SHARPNESS RETURN INITIAL RETURN COMM ADJUST > CAM ID SPECIAL BAUDRATE 9600...
  • Page 16 9 . OS D M AN UA L MAIN MENU Sub Menu Sub MENU SETUP FOCUS WINDOW OFF, ON FOCUS ADJUST RETURN BRIGHTNESS 0~15 SHUTTER 1/60(50), 1/120(100),1/250, 1/500, 1/1k, 1/2k, 1/4k, 1/6k, 1/10k, 1/50k, 1/100k FLICKERLESS OFF, ON EXPOSURE AGC MAX 6dB, 9dB, 12dB, 15dB, 18dB, 21dB, 24dB, 27dB, 30dB, 33dB, 36dB, 39dB, 42dB INITIAL RETURN...
  • Page 17 9 . OS D M AN UA L MAIN MENU Sub Menu Sub MENU LANGUAGE ENGLISH, CHINESE, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE, JAPANESE CAM ID 1 ~ 255 COMM ADJUST BAUDRATE 2400, 4800, 9600, 19200 RETURN ZONE NO 0 ~ 3 MASK MODE OFF, ON V START...
  • Page 18 9 . OS D M AN UA L OSD FUNCTION DESCRIPTION 1. FOCUS ADJUST : According to the brightness of light to minimize the depth of focus, to be more accurate to focus. - FOCUS VALUE: The higher the number, the focus will be a good fit. - FOCUS WINDOW: AF detector frame display ON/OFF.
  • Page 19 9 . OS D M AN UA L 3. WHITE BALANCE : Enable user to represent the accurate white color by controlling the R,G,B level. Setting up LEFT, RIGHT KEY on each menu. - WB MODE WHITE BALANCE ① ATW : Enable user to trace the White Balance automatically in the range of 2,300K~10,000K.
  • Page 20 9 . OS D M AN UA L - BLC ZONE : Enable user to set the BLC area -> TOP, BOTTOM, CENTER, LEFT, RIGHT. - BLC LEVEL : Enable user to set BLC in selected LEFT CENTER RIGHT area(0~15 level). - INITIAL : Enable user to initialize the BLC setting.
  • Page 21 9 . OS D M AN UA L 6. IMAGE : MIRROR, DNR, SHARPNESS functions set up by pressing LEFT, RIGHT KEY. IMAGE >MIRROR DNR LEVEL SHARPNESS INITAL RETURN (OFF) (ON) - MIRROR: Enable user to reverse the image. This function reduces noise by undertaking spatial filtering for one image. - DNR : (Outline of DNR function) - DNR LEVEL :...
  • Page 22 9 . OS D M AN UA L - CAM TITLE : Enable user to choose any word in screen(Maximum 10 letter is available) ① A letter Choice from the screen using menu key. ② Enable user to move to next menu using LEFT, RIGHT KEY in LOCATION. ③...
  • Page 23 9 . OS D M AN UA L - MOTION DETECT : Motion detection function. ① MOTION MODE : Enable user to set up ON/OFF ② LEVEL : Enable user to setup a motion detect sensitivity (0~3) ③ V START : Motion area Vertical start position. ④...
  • Page 24 1 0. Co m m u ni c a t i o n P r o t o c o l Pelco “D” Protocol Commands • Most widely used Commands - TELE = UP KEY - WIDE = DOWN KEY - NEAR = LEFT KEY - FAR = RIGHT KEY - MENU = MENU KEY...
  • Page 25 MEM O...
  • Page 26 MEM O...
  • Page 27 M o unt Gu id e 4-ø6.0...
