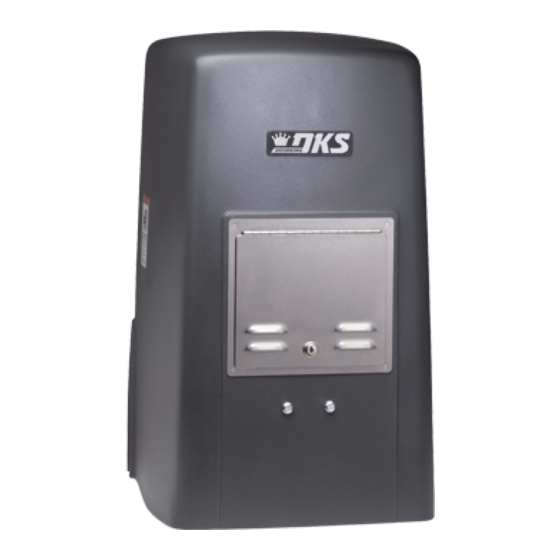

Installation/Owner's Manual
Use this manual for circuit board 4405-010 Revision D or higher.
Date Installed:
Installer/Company Name:
Phone Number:
Leave Manual with Owner
UL 325 Compliant
Circuit Board
Serial Number
and Revision Letter:
Copyright 2012 DoorKing, Inc. All rights reserved.
Series 9000
Series 9000
Series 9000
Vehicular Slide Gate Operator
Copyright 2009 DoorKing, Inc. All rights reserved.
9000-065-L-12-12
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9000-080 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DKS 9000-080

Summary of Contents for DKS 9000-080

  • Page 1 Series 9000 Series 9000 Series 9000 Installation/Owner’s Manual Vehicular Slide Gate Operator Use this manual for circuit board 4405-010 Revision D or higher. 9000-065-L-12-12 Date Installed: Installer/Company Name: Circuit Board Serial Number Phone Number: and Revision Letter: Leave Manual with Owner Copyright 2012 DoorKing, Inc.

  • Page 3: Specifications

    Max Gate Weight Max Gate Length Model # Horsepower - Volts - Phase Cycles Per Hour Speed Installed Level Installed Level 9000-080 1/2 HP - 115 VAC 1-Phase 1,000 Lbs. 35 Ft. 1 Ft/Sec Secondary Operator 9000-081 1,000 Lbs. 35 Ft.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS SPECIFICATIONS ASTM 2200 Standard for Gate Construction Important Safety Instructions Instructions regarding intended installation Important Notices UL325 Entrapment Protection Glossary Slide Gate Requirements Slide Gate Protection SECTION 1 - INSTALLATION 1.1 Hardware for the Gate 1.2 Underground Conduit Requirements 1.3 Gate Types 1.4 Operator Mounting Positions 12-14...
  • Page 5 TABLE OF CONTENTS SECTION 3 - ADJUSTMENTS 3.1 4405 Circuit Board Descriptions and Adjustments 3.2 DIP-Switch Settings for 4405 Circuit Board 22-23 3.3 Limit Switches 3.4 Inherent Reverse Sensor Adjustment 3.5 Secondary Current Sensor Adjustment (Dual Gates) SECTION 4 - ENTRAPMENT AND SAFETY PROTECTION 4.1 UL 325 Terminal Wiring 4.2 Secondary Entrapment Protection Device Locations 28-29...

  • Page 6: Astm 2200 Standard For Gate Construction

    ASTM F2200 Standard for Gate Construction Vehicular gates should be constructed and installed in accordance with ASTM F2200; Standard Specification for Automated Vehicular Gate Construction. For a copy of this standard, contact ASTM directly at 610-832-9585; service@astm.org; or www.astm.org. Important Safety Instructions WARNING - To reduce the risk of injury or death: 1.

  • Page 7: Important Notices

    • For gate operators utilizing contact sensors: 1. One or more contact sensors shall be located where the risk of entrapment or obstruction exist, such as at the leading edge, trailing edge, and post mounted both inside and outside of a vehicular horizontal slide gate. 2.

  • Page 8: Ul325 Entrapment Protection

    UL 325 Entrapment Protection Class I Class II A vehicular gate operator (or system) intended for use in a A vehicular gate operator (or system) intended for use in a home of one-to four single family dwelling, or a garage or commercial location or building such as a multi-family parking area associated therewith.

  • Page 9: Glossary

    Glossary GATE - A moving barrier such as a swinging, sliding, raising, lowering, or the like, barrier, that is a stand-alone passage barrier or is that portion of a wall or fence system that controls entrance and/or egress by persons or vehicles and completes the perimeter of a defined area.

  • Page 10: Slide Gate Requirements

    Slide Gate Requirements The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.

  • Page 11: Slide Gate Protection

    Slide Gate Protection Entrapment protection devices are required to reduce the risk of injury. Install sensors where the risk of entrapment or obstruction exists while gate is moving. Individual requirements will vary. Contact Sensor (Reversing Edges) Warning Signs Installed on the fence to help minimize the potential of Permanently mounted entrapment between the gate and fence.

  • Page 12: Section 1 - Installation

    SECTION 1 - INSTALLATION Prior to beginning the installation of the slide gate operator, we suggest that you become familiar with the instructions, illustrations, and wiring guide-lines in this manual. This will help insure that your installation is performed in an efficient and professional manner compliant with UL 325 safety and ASTM F2200 construction standards.

  • Page 13: Gate Types

    1.3 Typical Gate Types The Model 9000 operator is designed to be installed on any of these gate types. See the next 3 pages for specific operator mounting positions. • Steel or Aluminum. • 1,500 lb max. weight per gate (1 HP motor). •...

  • Page 14: Operator Mounting Positions

    1.4 Operator Mounting Positions The Model 9000 operator is designed to be installed in the front, rear and center mounting positions shown on this page and the next 2 pages. V-wheel V-rail ornamental gates are shown as examples but other gate types on the previous page can use the same mounting setups.
  • Page 15 Rear Position with Concrete Pad Idler Wheels and Chain Setup Hides the chain from outside the property looking in. • Set one chain Idler wheel at the top and one in the center position. A filler post or barrier may need to be installed between Top View the gate and wall area (See page 8 for more information).
  • Page 16 Center Position with Post Mount Kit Hides the chain from outside the property looking in. Allows the use of DoorKing’s chain tray kit to attach to gate. This is useful with long gates. It supports the chain’s weight and helps prevent chain “stretching”. Idler Wheels and Chain Setup •...

  • Page 17: Concrete Pad Setup Or Optional Post Mount Kit

    1.5 Concrete Pad Setup or Post Mounting Concrete Pad Setup Gate 4” Minimum Side View 8” 13” Conduit Concrete pad Area MUST be level. Concrete Pad 3.75” 2” 2” 2” 2.5” 3.75” Center 4.5” 3.5” 12” 12” 4” min. above ground. Concrete Pad 24”...

  • Page 18: Positioning Operator And Chain

    1.6 Positioning Operator and Chain Operator and chain are NOT Operator and chain Chain Chain parallel to gate. Bracket MUST be parallel to gate! Idler Wheels Lines up with Idler Wheels Chain bracket MUST line up with chain idler wheels! Chain bracket does NOT align with...

  • Page 19: Endless Idler Assembly ( On Select Installations )

    1.8 Endless Idler Assembly On Select Installations DoorKing offers an endless idler assembly with a protective cover designed for the Model 9000 installations (P/N 2600-818). Make sure the endless idler assembly is securely fastened to the wall or post (Depending on which type of installation will be used).

  • Page 20: Doorking's Chain Tray Kit

    1.9 DoorKing’s Chain Tray Kit A chain tray is recommended for gates longer than 20 ft. to support the weight of the chain. DoorKing offers a chain tray kit in 10 ft. sections to fit any length gate. (DoorKing P/N 2601-270 10 Ft. section) The Chain tray supporting brackets can be mounted facing up (as shown) Chain Tray...

  • Page 21: Section 2 - Ac Power To Operator(S)

    SECTION 2 - AC POWER TO OPERATOR(S) Before attempting to connect any wiring to the operator, be sure that the circuit breaker in the electrical panel is in the OFF position. Permanent wiring must be installed to the operator as required by local electrical codes. It is recommended that a licensed electrical contractor perform this work.

  • Page 22: Bi-Parting Gates Wiring - Dual Gate Operators

    2.2 Bi-Parting Gates Wiring - Dual Gate Operators Connect the Primary/Secondary operators together with DoorKing’s interconnection cable (P/N 2600-75x) as shown. High voltage power and low voltage communications are supplied to the secondary operator by DoorKing’s UL approved cable that is run in a single conduit.

  • Page 23: Section 3 - Adjustments

    SECTION 3 - ADJUSTMENTS The switch settings and adjustments in this chapter should be made after your installation and wiring to the operator(s) is complete. Whenever any of the programming DIP-switches on the circuit board are changed, power must be shut-off, and then turned back on for the new setting to take effect.

  • Page 24: Dip-Switch Settings For 4405 Circuit Board

    3.2 DIP-Switch Settings for 4405 Circuit Board The two DIP-switches located on the circuit board are used to program the operator to operate in various modes and to turn on or off various operating features. Whenever a switch setting is changed, power to the operator must be turned OFF and then turned back on for the new setting to take affect.
  • Page 25 3.2 Continued Switch Definitions SW 1 (Top 8 Switches) Typical Settings Must OPEN the primary operator’s gate upon initial AC power up and open command. If the first open command Switch 1 begins to close the gate, turn AC power off and reverse this switch. Must OPEN the secondary operator’s gate upon initial AC power up and open command.

  • Page 26: Limit Switches

    3.3 Limit Switches Full Open and Close Limits MUST be Set The operator normally stops a cycling gate using the open and close limits. If the limits have not been set, the gate could continue beyond its full open and close positions, damaging the gate and operator.

  • Page 27: Inherent Reverse Sensor Adjustment

    3.4 Inherent Reverse Sensors Adjustment This vehicular gate operator is equipped with an inherent adjustable reversing sensor (Type A) used as the primary entrapment protection system according to UL 325 standards. The gate will reverse direction after “physically” encountering an obstruction in either the opening or closing gate cycle.

  • Page 28: Secondary Current Sensor Adjustment (Dual Gates)

    3.5 Secondary Current Sensor Adjustment (Dual Gates ONLY) The PRIMARY gate operator’s “secondary reversing sensor” uses a secondary current sensing device (Located only in the primary operator) to detect any obstructions “physically” encountered in the SECONDARY gate path when using dual gates. The secondary current sensor uses a sensing coil with a given number of turns through it to monitor the current flow into the secondary operator.

  • Page 29: Section 4 - Entrapment And Safety Protection

    SECTION 4 - ENTRAPMENT AND SAFETY PROTECTION Secondary Entrapment Protection Devices: In addition to the inherent reversing sensor system, the Model 9000 has a 6-pin UL 325 terminal for the connection of photo sensors-Type B1 and reversing edges-Type B2 secondary entrapment protection devices required by UL 325 standards. Entrapment protection devices must be installed to reduce the risk of injury.

  • Page 30: Secondary Entrapment Protection Device Locations

    4.2 Secondary Entrapment Protection Device Locations Typical UL Photo Sensor mounting height If the distance between the gate and distance away from gate. and wall is greater than 2 1/4”. Filler Post or Barrier Non-Secure Side Secure Side Outside Property Inside Property 5”...
  • Page 31 Wireless Reverse Edge Sample Setup - Single Receiver Edge Normally Open 9 V battery operated transmitter mounted on gate. Transmitter Filler Post Note: Install reversing edges on all Normally Open the gate support posts or filler post in this area (e.g.

  • Page 32: Loop Detectors

    4.3 Loop Detector Wiring To help protect the operator from accidentally closing on vehicles in the gate’s path, DoorKing highly recommends that loops and loop detectors be installed. Loops are laid underneath, cut into asphalt or concrete driveways or buried beneath gravel and earth driveways.

  • Page 33: Section 5 - Main Terminal Wiring

    See Motor next page for wiring. It MUST be mounted in the Motor line-of-sight of the gate operator. (DKS P/N 1404-080) Circuit Board Power For dual operator applications 4405-010 Circuit Board Power ONLY. Allows the secondary...

  • Page 34: Control Wiring

    Remote Alarm Reset Station Note: All stand-alone (DKS P/N 1404-080) MUST be mounted and telephone entry devices must use a separate power source. in the line-of-sight of the gate operator. Gate Tracker DoorKing Access Control System (Model 1833, 1835, 1837 or 1838) tracker system can be connected.

  • Page 35: Section 6 - Operating Instructions

    SECTION 6 - OPERATING INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING - To reduce the risk of injury or death: 1. READ AND FOLLOW ALL INSTRUCTIONS. 2. Never let children operate or play with gate controls. Keep the remote control away from children. 3.

  • Page 36: Shutdown Conditions

    6.2 Shutdown Conditions Under various entrapment conditions the operator will assume either a soft or hard (alarm) shutdown. To determine what type of reset action is required, you will need to understand how the different entrapment conditions affect the gate operator. Soft Shutdown (NO Alarm will Sound) This occurs in various situations where the inherent or secondary entrapment protection devices have been activated.

  • Page 37: Manual Gate Operation

    6.3 Manual Gate Operation Caution: Never attempt to manually operate any gate until you have verified that power to the operator has been shut-off. Pull Manual Release Handle Pull straight OUT as far as possible and then UP. Release Handle With handle in UP position, slide back down to lock it in manual release position.

  • Page 38: Section 7 - Maintenance And Troubleshooting

    SECTION 7 - MAINTENANCE AND TROUBLESHOOTING Inspection and service of this gate operator by a qualified technician should be performed anytime a malfunction is observed or suspected. High cycle usage may require more frequent service checks. 7.1 Maintenance When servicing the gate operator, always check any secondary (external) reversing devices (loops, photocells, etc.) for proper operation. If external reversing devices cannot be made operable, do not place this operator in service until the malfunction can be identified and corrected.

  • Page 39: Troubleshooting

    7.3 Troubleshooting Have a good VOM meter with Min/ Max test button to check voltages and continuity. A Meg-Ohm meter capable of checking up to 500 meg-ohms of resistance is necessary to properly check the integrity of the ground loops. When a malfunction occurs, isolate the problem to one of three areas: 1) the operator, 2) the loop system, 3) the keying devices.
  • Page 40 Symptom Possible Solution(s) Secondary operator • Check that SW-1, switch 6 is ON. motor will not run. • Press secondary operator motor reset button firmly. • Remove circuit board. Momentarily jumper terminal 19 to the primary/secondary interconnection cable terminal 1, then to terminal 2 with a 14 AWG insulated jumper wire. CAUTION –...

  • Page 41: Accessory Items

    7.4 Accessory Items The following accessory items are available for the model 9000 slide gate operator. Contact Sensors - For use as a secondary entrapment protection device. Miller Edge, Inc., MGO20, MGR20, MGS20 Photo Cell - Non-contact (photocell) sensors for use as a secondary entrapment protection device. MMTC, Inc.

  • Page 42: Model 9000 115 Vac Wiring Diagram

    Model 9000 1/2 HP or 1 HP 115 VAC Single Phase Remote Radio Secondary Interface Receiver Terminal Limit Switch Partial Limit Switch Terminal Open White Sensor Gray Gray Brown Yellow Orange Orange Chassis Ground White Orange Yellow Brown Blue Gray Orange White Brown...
  • Page 43 9000-065-L-12-12...

  • Page 44: 9000-065

    Series 9000 Series 9000 Series 9000 Installation/Owner’s Manual Vehicular Slide Gate Operator Use this manual for circuit board 4405-010 Revision D or higher. 9000-065-L-12-12 www.doorking.com DoorKing, Inc. 120 Glasgow Avenue Inglewood, California 90301 U.S.A. Phone: 310-645-0023 Fax: 310-641-1586 Copyright 2009 DoorKing, Inc. All rights reserved.
