Installing the HPL lamp
Always replace the lamp if it becomes damaged or deformed. Use care installing the lamp. Improperly installed
lamps will cause premature lamp and socket failures.
Disconnect power before installing the lamp.
1.
Let the lamp cool before replacing.
2.
Loosen the captured screw on the back of the raceway and open the raceway lid.
3.
The raceway lid is designed to remain open using gravity. If lid swings shut, reposition the MultiPAR unit using
4.
the hanging irons or trunnions to lock the unit in position.
Remove lamp socket by loosening the gnurled knob and removing the socket assembly. Remove the HPL
5.
lamp from its box, holding it by the base.
Insert lamp base into pin holes in socket assembly.
6.
Push down on the lamp base until the lamp is firmly inserted. Make sure that the lamp is fully seated, with the
7.
bottom of the lamp heat sink flush to the socket assembly surface.
To reinstall the socket assembly, insert until the heat sink base rests flush against the reflector, then tighten the
8.
knurled bolt to secure the socket assembly in place. See (
N o t e :
To avoid premature lamp failure, do not touch the lamp glass with your fingers. If you touch the
lamp during installation, clean it carefully with rubbing alcohol and a clean, lint-free cloth before
operation.
HPL lamps
Lamp code Watts Volts
HPL 375/230X 375
HPL 375/240X 375
HPL 575/230 575
HPL 575/230X 575
HPL 575/240 575
HPL 575/240X 575
HPL 750/230 750
HPL 750/230X 750
HPL 750/240 750
HPL 750/240X 750
WARNING:
Use of other lamps may pose a safety risk, damage the fixture, and will void your warranty.

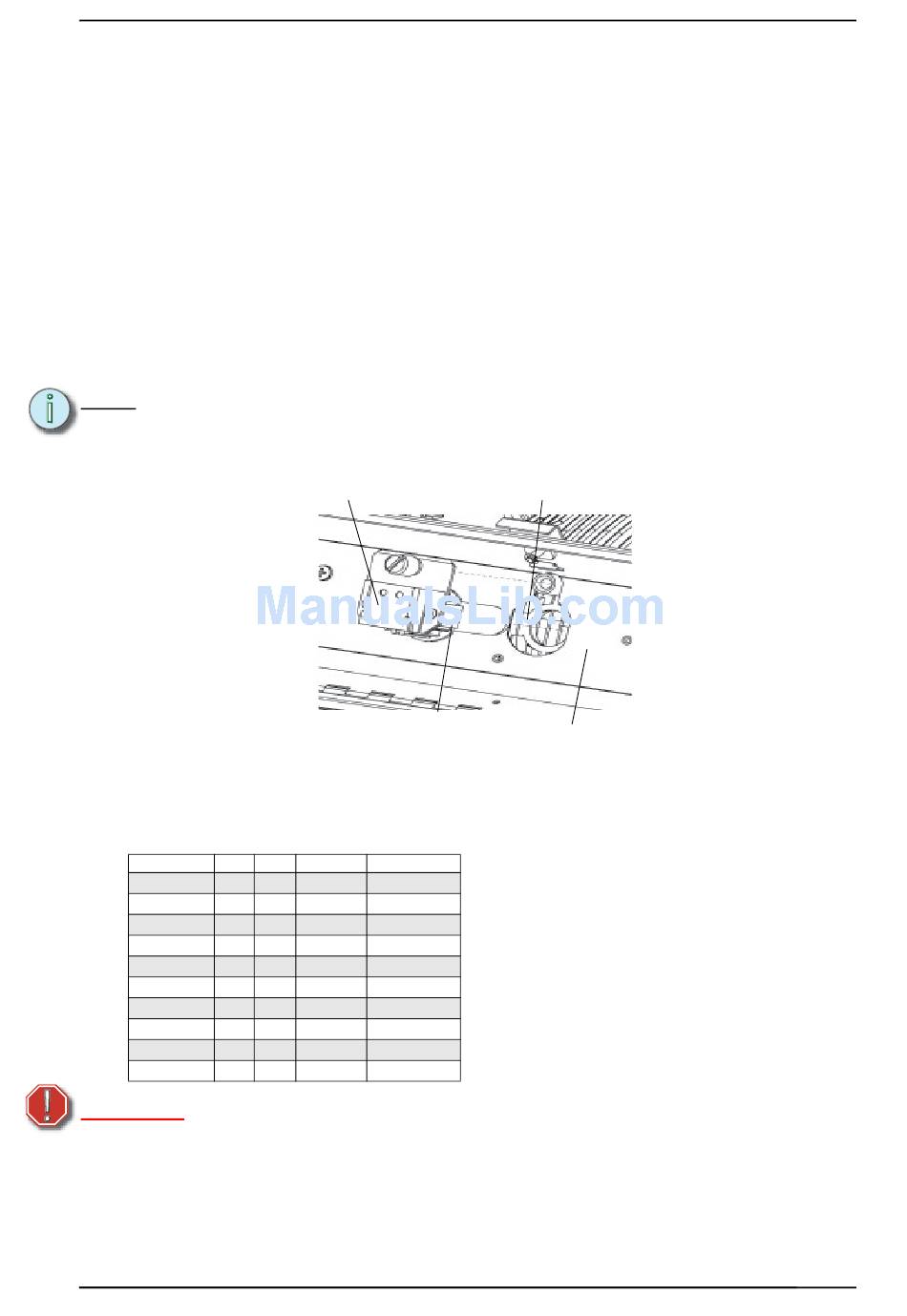

Socket Assembly
Lamp Base
Figure 1
Color temp Ave rated life
230 3,000ºK 1,000 hours
240 3,000ºK 1,000 hours
230 3,200ºK 400 hour
230 3,050ºK 1500 hours
240 3,200ºK 400 hour
240 3,050ºK 1500 hours
230 3,200ºK 300 hours
230 3,050ºK 1500 hours
240 3,200ºK 300 hours
240 3,050ºK 1500 hours
)
Figure 1
Reflector
Raceway Interior
