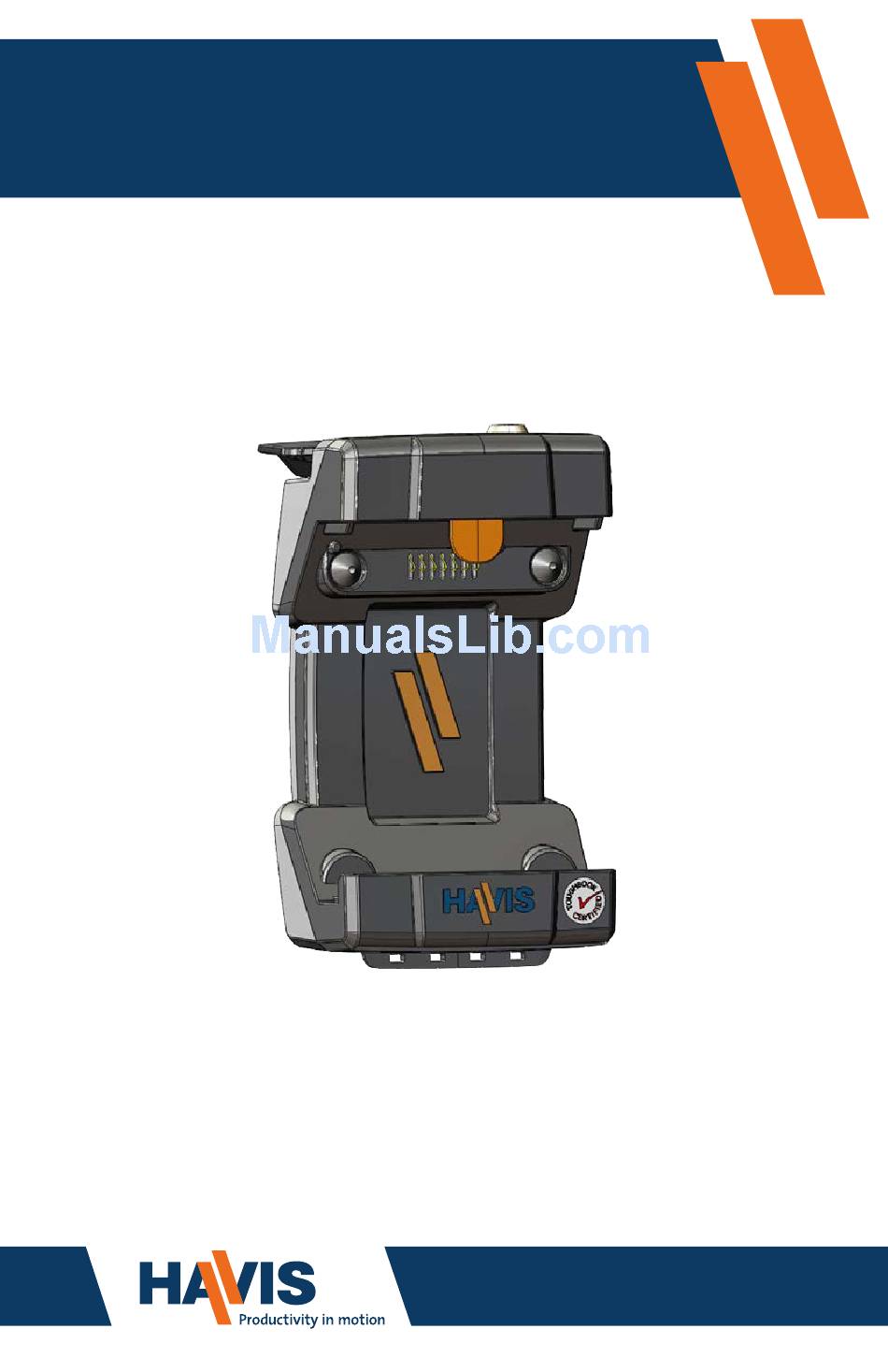

- Page 1 Owner’s Manual Havis Docking Station For Panasonic Toughpad JT-B1 DS-PAN-800 Series DS-PAN-801 DS-PAN-802 DS-PAN-803 www.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-PAN-800 Series Docking Station for the Panasonic Toughpad JT-B1. For questions regarding the set-up of your DS-PAN-800 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional...
- Page 3 Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-PAN-80X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment.
-
Page 4: Port Replication Capability
Port Replication Capability Power Input of Docking Station (12 V DC IN) Ethernet RJ45 USB 2.0 (x2) BOTTOM of Docking Station Specifications Power Supply Input 12.0 V DC-In Dimensions 7.3” ( 18.5 cm) H x 4.5” ( 10.9 cm ) W x 3.0” ( 7.6 cm ) D Weight 0.75 lbs ( 0.28 kg ) Operating Environment... - Page 5 Latch Handle Locator Pins (Second Locator Pin is hidden Latch Tab from view in this illustration) Docking Connector Alignment Posts (Hidden from view in this illustration) Mounting Holes (x4) (VESA 75mm Hole Pattern) Ports Strain Relief Anchor Points www.havis.com • 1-800-524-9900...
- Page 6 (Hardware Kit Item 3), eight (8) Washers, M4 (Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10%. Havis Desktop Stand installation (sold seperately, Part # DS-DA-218). Washer, M4...
-
Page 7: Cable Management
Tie off cables onto a stationary part of the mounting system. This loop must be large enough to allow full range of expected rotation and extension without stressing connections. Collect cables and secure to the mounting system. (Note: Mounting system not included) www.havis.com • 1-800-524-9900... - Page 8 Operation - Docking TO ENSURE A PROPER CONNECTION, PLEASE READ THE FOLLOWING BEFORE DOCKING YOUR TABLET. Hold your Toughpad JT-B1 in landscape orientation, ensuring the Docking Connector is on top. (NOTE: Power button will be on the right) DO NOT FORCE TABLET ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK THE ALIGNMENT OF TABLET ON DOCKING STATION.
- Page 9 Latch Tab will engage in front of your Toughpad JT-B1 NOTE: Once docked, tablet battery will only charge between 10° C - 35° C. Please refer to tablet owner’s manual for more information www.havis.com • 1-800-524-9900...
- Page 10 Operation - Docking (continued) For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2). Operation - Undocking If previously locked, unlock Docking Station using supplied key. While holding tablet with one hand, lift the Latch Handle on the top of Docking Station.
- Page 11 Related Products Havis offers a wide variety of accessory products specifically for use with the DS-PAN-800 Series Docking Station. For more information or to order, please visit www.havis.com. DS-DA-218 Desktop Stand for Tablet Docking Stations Durable stand for mounting tablet Docking Stations for use in the home or office.
- Page 12 Havis, Inc. 75 Jacksonville Road, PO Box 2099 Warminster, PA 18974 47801 Anchor Court Plymouth, MI 48170 www.havis.com 1-800-524-9900 DS-PAN-800-SERIES_OMN_1-14...
