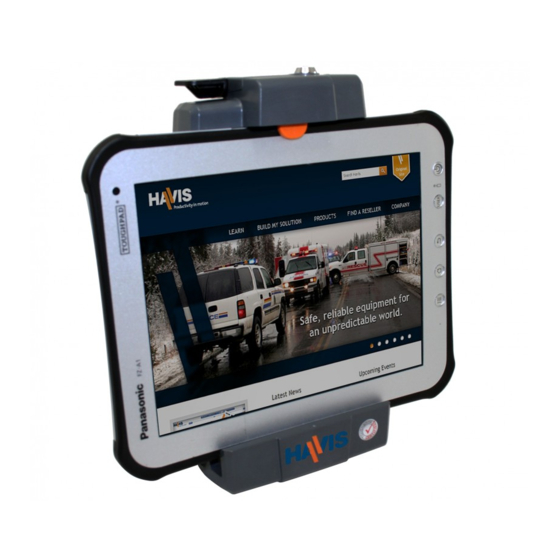

- Page 1 Owner’s Manual Havis Docking Station For Panasonic Toughpad FZ-A1 DS-PAN-500 Series DS-PAN-504 DS-PAN-505 DS-PAN-506 www.havis.com 1-800-524-9900...
- Page 2 Before Beginning (Original Instructions) Havis is pleased to provide this Owner’s Manual to aid in the proper installation and use of the DS-PAN-500 Series Docking Station for the Panasonic Toughpad FZ-A1. For questions regarding the set-up of your DS-PAN-500 Series Docking Station, please contact Havis at 1-800-524-9900 or visit www.havis.com for additional...
-
Page 3: Table Of Contents
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-PAN-50X not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Port Replication Capability
Port Replication Capability of Docking Station USB 2.0 (x2) Ethernet RJ45 Power Input (12 V DC IN) BOTTOM of Docking Station Parts Included Hardware Kit 1. Zip Ties (5) 2. Keys (2) 3. 1/4”-20 x 5/8” long Button Head Screws (5) 4. - Page 5 Parts Included Docking Station FRONT All Models Barrel Lock Latch Handle Latch Tab Locator Pin Docking Connector BACK Mounting Hole (x4) Ports Strain Relief www.havis.com • 1-800-524-9900...
-
Page 6: Installation
Installation Identify your required mounting configuration and select the appropriate fasteners from the Hardware Kit. OPTION A: Havis vehicle motion/mounting equipment. Use Hardware Kit Item 3 (1/4-20x5/8” long Button Head Screws) OPTION B: Motion/mounting device with VESA 75mm hole pattern. - Page 7 Rigid Mount Bracket through the access holes via the front of Docking Station. 3.0” Access to Rigid Mount Mounting Surface Mounting Surface Bracket via front of appropriate fasteners hole pattern Docking Station (For reference only) www.havis.com • 1-800-524-9900...
-
Page 8: Cable Management
Cable Management Tip the Docking Station to a position that is comfortable to work with. Install all cables that are necessary for computing needs. Use Zip Ties (Hardware Kit Item 1) to strain relieve cables. Each port has an individual Strain Relief Point that should be used to anchor each cable. If desired for routing purposes, additional Strain Relief Points on each side of Docking Station may be used. -
Page 9: Operation - Docking
Hold tablet in landscape orientation, with bottom angled toward Docking Station. Lower tablet into the bottom of the Docking Station. If access to tablet’s HDMI port is needed for additional monitor connection, open access door BEFORE Docking the tablet. www.havis.com • 1-800-524-9900... -
Page 10: Operation - Undocking
Operation - Docking (continued) Pivot tablet so the top aligns with the Locator Pin at the top of the Docking Station. Lower the Latch Handle to secure tablet in place. Latch Tab will engage in front of Toughpad FZ-A1 For theft deterrence, secure tablet by locking Docking Station with supplied key (Hardware Kit Item 2). - Page 11 Related Products Havis offers a wide variety of accessory products specifically for use with the DS-PAN-500 Series Docking Station. For more information or to order, please visit www.havis.com. DS-DA-218 Desktop Stand for Tablet Docking Stations Durable stand for mounting tablet Docking Stations for use in the home or office.
- Page 12 Havis, Inc. 75 Jacksonville Road, PO Box 2099 Warminster, PA 18974 47801 Anchor Court Plymouth, MI 48170 www.havis.com 1-800-524-9900 DS-PAN-500-SERIES_OMN_8-13...
