Summary of Contents for Havis DS-PAN-724

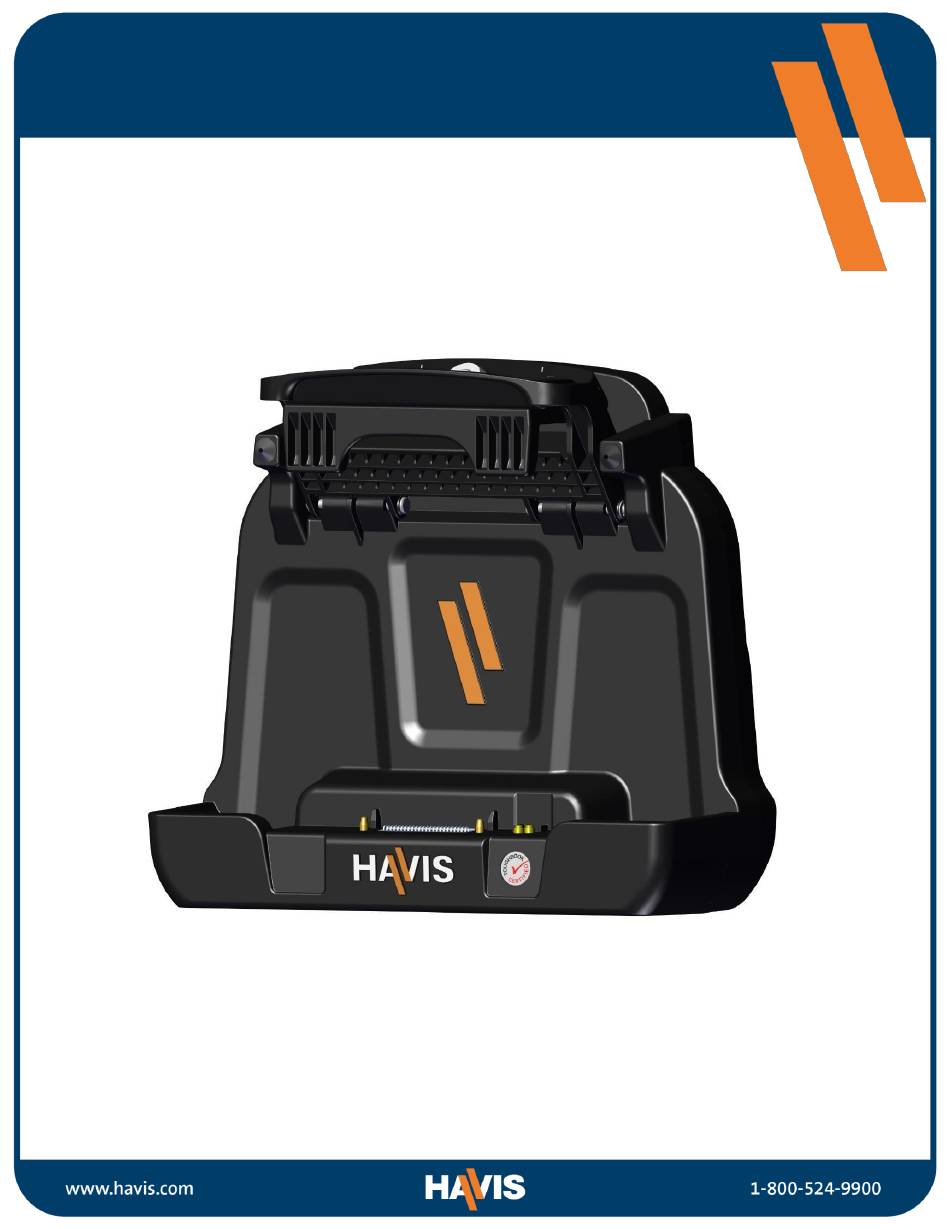

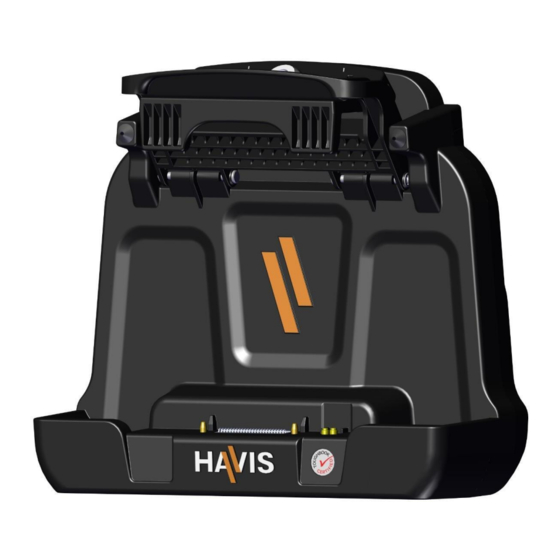

- Page 1 Owner’s Manual Havis Docking Station For Panasonic TOUGHBOOK G2 Tablet DS-PAN-720 Series DS-PAN-721 DS-PAN-722 DS-PAN-723 DS-PAN-724 DS-PAN-725 DS-PAN-726 DS-PAN-721-2 DS-PAN-722-2 DS-PAN-724-2 DS-PAN-725-2 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-PAN-720-SERIES_OMN_1-22...
-
Page 2: Before Beginning
90 W certifiée de qualité automobile approuvée par Panasonic et conçue pour une sortie continue et régulée de 16 VDC (numéro de pièce Havis LPS-114 ou équivalent). Le non-respect de cette exigence entraînera des dommages au produit qui ne sont PAS réparables et qui ne sont PAS couverts par la garantie. - Page 3 Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-PAN-7XY-Z not expressly approved by Havis, Inc. could void the user’s authority to operate this equipment.
-
Page 4: Parts Included
Parts Included Docking Station Barrel Lock Latch Handle Latch Hook Pass-Through Antenna Alignment Posts (Dual, Optional) Docking Connector Ground Pins Tablet Access Window Strain Relief Anchor Points Mounting Holes (x4) Ports (VESA 75mm Hole Pattern) Strain Relief Mounting Points (for use with Hardware Kit Item #6) -
Page 5: Antenna Identification
(For attaching Docking Station to VESA 75mm hole pattern equipment with M4 Pan Head Screws) Antenna Identification DS-PAN-721-2, DS-PAN-722-2, DS-PAN-724-2, & DS-PAN-725-2 A – PANASONIC LOWER B – PANASONIC UPPER Tablet Interface Antenna Connectors (TNC) TOUGHBOOK G2 Tablet... -
Page 6: Port Replication Capability
Port Replication Capability DS-PAN-721, DS-PAN-721-2, DS-PAN-722, & DS-PAN-722-2 Antenna Switch INT / EXT Antenna (TNC) Optional: Part IDs DS-PAN-721-2 DS-PAN-722-2 HDMI USB 3.0 (x2) Serial Ethernet Power Input (D-Sub 15 pin) (RJ45) (Non-Native) DC IN 16V... - Page 7 Port Replication Capability DS-PAN-724, DS-PAN-724-2, DS-PAN-725, & DS-PAN-725-2 Antenna Switch INT / EXT Antenna (TNC) Optional: Part IDs DS-PAN-724-2 DS-PAN-725-2 USB 3.0 (x2) Serial Ethernet Power Input (RJ45) (Non-Native) DC IN 16V...
-
Page 8: Installation
Washers, M4 (Hardware Kit Item 4), and four (4) Lock Washers, M4 (Hardware Kit Item 5), secure the Docking Station to device. Torque screws to 20 in-lbs (2.3Nm) ± 10%. A) Havis Desktop Stand installation (sold separately, Part # DS-DA-218). Washer,M4 Lock Washer, M4 M4 x 0.7x12mm Pan Head Screws... -
Page 9: Cable Management
Cable Management 1) Tip the Docking Station to a position that is comfortable to work with. 2) Connect all cables that are necessary for computing needs. 3) Use Zip Ties (Hardware Kit Item 1) and/or Zip Tie Mounts (Hardware Kit Item 6) to strain relieve cables. Strain Relief Points are located above each port and on the bottom of Docking Station and should be used to anchor each cable. -
Page 10: Operation - Docking
Operation - Docking TO ENSURE A PROPER CONNECTION, PLEASE READTHE FOLLOWING BEFORE DOCKING YOUR TABLET. POUR ASSURER UNE CONNEXION ADÉQUATE, VEUILLEZ LIRE LES ÉLÉMENTS SUIVANTS AVANT D’INSTALLER VOTRE TABLETTE. Hold your TOUGHBOOK G2 in landscape orientation, ensuring the Docking Connector is on the bottom. (NOTE: Power Button will be on the bottom right) Alignment Grooves on the bottom of Your tablet’s Alignment Grooves will Panasonic TOUGHBOOK G2 Tablet. - Page 11 Operation - Docking (continued) 1) Ensure Docking Station is unlatched by lifting the Latch Handle. 2) Hold tablet in landscape orientation, with bottom angled toward the Docking Station, aligning the tablet’s Docking Connector with the Docking Station’s Docking Connector. Lower tablet into the bottom of the Docking Station while ensuring that the alignment grooves are aligned with the Docking Station’s Alignment Posts.
-
Page 12: Operation - Undocking
Operation - Docking (continued) 4) For theft deterrence, secure tablet by locking Docking Station with the supplied key (Hardware Kit Item 2). Operation - Undocking 1) If previously locked, unlock Docking Station using supplied key. 2) While holding tablet with one hand, lift only the Latch Handle up and rearward. Note that Latch Hook is spring loaded and will follow Latch Handle. -
Page 13: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-114 90W Power Supply External in-vehicle power supply and cable for Panasonic TOUGHBOOK G2 with cigarette lighter adaptor.
