AP6522E Access Point
INSTALLATION GUIDE

Advertisement

   Summary of Contents for Motorola AP6522E

  • Page 1

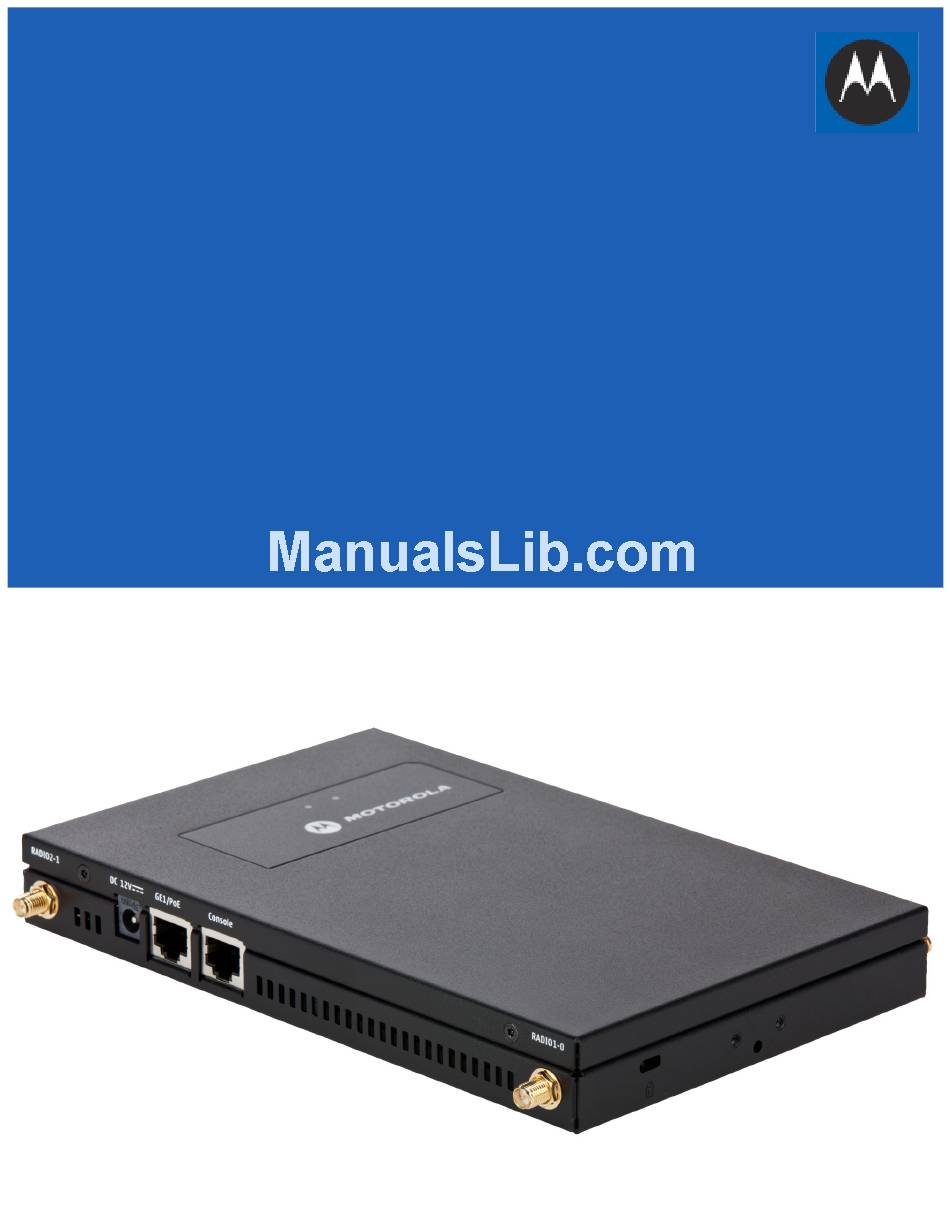

    AP6522E Access Point INSTALLATION GUIDE...

  • Page 2

    AP6522E Access Point MOTOROLA SOLUTIONS and the Stylized M Logo are registered in the US Patent & Trademark Office. © Motorola Solutions, Inc. 2014. All rights reserved.

  • Page 3: Table Of Contents

    Installation Guide 1.0 Introduction ............6 1.1 Document Conventions .

  • Page 4: Table Of Contents

    AP6522E Access Point 3.0 Basic WiNG Express Access Point Configuration ....23 4.0 Specifications........... . 32 4.1 AP-6522E Integrated Antenna Model Electrical Characteristics .

  • Page 5: Table Of Contents

    5.12 Turkish WEEE Statement of Compliance ......43 6.0 Motorola Solutions Support Center ....... . . 44...

  • Page 6: Document Conventions

    Access Point managed by its connected controller. If new to Motorola Solutions Access Point technology, refer to the WiNG Access Point System Reference Guide to familiarize yourself with Access Point technology and the feature set supported by the WiNG operating system.

  • Page 7: Site Preparation, Package Contents

    An AP-6522E Access Point is available in integrated antenna and external antenna models. Contents differ depending on the model ordered. 1.4.1 External Antenna Model Package Contents • AP6522E Access Point with external antenna connectors (Plenum Rated) • 2 customer installed mounting lugs • 4 mounting lug retaining screws •...

  • Page 8

    • Lock port for Kensington® style Security Lock The AP6522E Access Point has one RJ-45 connector supporting an 10/100/1000 Ethernet port and accepts 802.3af-compliant power from an external source. The illustration below is of an integrated antenna model. When operating in a Gigabit Ethernet environment, CAT-5e or CAT-6 cable NOTE is recommended for Gigabit operation.

  • Page 9: Hardware Installation, Installation Instructions

    Installation Guide Hardware Installation 2.1 Installation Instructions The AP-6522E Access Point mounts either on a wall (with customer supplied M4 x 25 pan head screws and wall anchor - or equivalent) or on a suspended ceiling T-bar. If deploying an external antenna model AP-6522E on a suspended ceiling T-bar, Access Point mounting kit (Part No.

  • Page 10: Access Point Placement, Integrated Antenna Model Wall Mount Instructions

    • If a DC power supply is used, ensure it’s the approved power supply for the AP-6522E (PWRS-1400-148R). • Motorola Solutions recommends you do not to install the AP-6522E in wet or dusty areas. • Verify the environment has a continuous temperature range between 0° C to 40° C.

  • Page 11: Wall Mount Procedure

    Installation Guide 2.4.2 Wall Mount Procedure 1. Orient the case on the wall by its width or length. To ensure proper operation of an AP6522 Access Point, ensure it is CAUTION mounted in the correct orientation as shown above.

  • Page 12

    AP6522E Access Point 2. Mark two points (for drill holes) 4.08 inches (103.7 mm) apart on a horizontal line. 3. At each point, drill a hole in the wall, insert an anchor, screw into the anchor the wall mounting screw and stop when there is 1mm between the screw head and the wall.

  • Page 13: Integrated Antenna Model Suspended Ceiling T-bar Mount, Suspended Ceiling T-bar Mount Procedure

    Installation Guide 2.5 Integrated Antenna Model Suspended Ceiling T-Bar Mount Ceiling mount requires holding the AP-6522E Access Point up against a T-bar of a suspended ceiling grid and twisting the case onto the T-bar. 2.5.1 Suspended Ceiling T-Bar Mount Procedure 1.

  • Page 14: External Antenna Model Wall Mount Instructions, Wall Mount Procedure - New Installation

    2.6 External Antenna Model Wall Mount Instructions A wall mount deployment requires hanging the AP6522E Access Point along its width or length using the pair of slots on the bottom of the unit. The AP-6522E can be mounted on to any plaster, wood or cement wall surface using the provided wall anchors.

  • Page 15: Wall Mount Procedure - Existing Access Point Replacement

    Installation Guide 2. Place the Access Point against the wall, ensuring the Access Point’s Motorola Solutions “bat wings” logo is in the correct orientation. 3. Mark the screw hole locations on a vertical axis using the ear’s mounting holes. 4. At each point, drill a hole in the wall and insert the anchor.

  • Page 16: External Antenna Model Suspended Ceiling T-bar Mount

    AP6522E Access Point 2.7 External Antenna Model Suspended Ceiling T-Bar Mount Ceiling mount requires holding the AP-6522E Access Point up against a T-bar of a suspended ceiling grid and twisting the case onto the T-bar. If deploying an external antenna model AP-6522E on a ceiling T-Bar, Access Point mounting kit (Part No.

  • Page 17

    Installation Guide 1 - 0 1 - 0 D I O D I O n s o n s o 1 / P 1 / P 1 2 V 1 2 V 2 - 1 2 - 1 D I O D I O 5.

  • Page 18: External Antenna Suspended Ceiling Tile (plenum) Mount, Suspended Ceiling Mount Hardware

    AP6522E Access Point 2.8 External Antenna Suspended Ceiling Tile (Plenum) Mount Ceiling mount requires placing the AP6522E Access Point above suspended ceiling tile. Notes or warnings about suspended ceiling mounts apply to all NOTE installations where the unit is placed on suspended ceiling tile.

  • Page 19: Ap-6522e External Antenna Model Antenna Options

    2.9 AP-6522E External Antenna Model Antenna Options Motorola Solutions supports two antenna suites for AP-6522E External Antenna models. One antenna suite supporting the 2.4 GHz band and another antenna suite supporting the 5 GHz band. Select an antenna model best...

  • Page 20

    ML-2452-APAG2A1-01 (Black) Dipole Antenna ML-2452-APAG2A1-02 (White) For up-to-date information on supported antennas and antenna specifications, please refer to the Motorola Solutions Enterprise Wireless LAN Antenna Specification Guide available on the Motorola Solutions Web site. For more information, refer to https://portal.motorolasolutions.com/Support/US-EN/Wireless+Networks.

  • Page 21: Led Indicators

    Installation Guide 2.10 LED Indicators Both Integrated Antenna and External Antenna models have LED activity indicators on the front of the case. With the External Antenna models mounted above a ceiling, LEDs are at the center of an oval badge on the ceiling. The LEDs provide a status display indicating error conditions, transmission, and network activity for the 5 GHz 802.11an (amber) radio or the 2.4 GHz 802.11bgn (green) radio.

  • Page 22

    AP6522E Access Point Task 5 GHz Activity LED (Amber) 2.4 GHz Activity LED (Green) Unadopted Blink interval at 5 times a second Normal • If this radio band is enabled: • If this radio band is enabled: Operation Blink at 5 second interval Blink at 5 second interval •...

  • Page 23: Basic Wing Express Access Point Configuration

    Basic WiNG Express Access Point Configuration For a WiNG Express SKU (AP6522E), both the WiNG Express UI and an over the air (OTA) provisioning configuration are required for a basic setup and network connection. For a non WiNG Express SKU (AP6522), there’s no OTA support, and the Access Point utilizes just the UI for its basic setup.

  • Page 24

    AP6522E Access Point 3. Enter the default username admin in the Username field. 4. Enter the default password motorola in the Password field. 5. Select the Login button to load the management interface. If this is the first time the WiNG Express interface has been accessed, a screen displays prompting for the Access Point’s country code.

  • Page 25

    Installation Guide 7. Expand the Configuration menu item and select Basic. 8. Set the following Basic Configuration Settings for this Access Point: • AP Name - Provide an AP Name used as this Access Point’s WiNG Express network identifier. If setting this Access Point as a Virtual Controller, each Access Point managed by this Virtual Controller lists this Access Point’s AP Name as its own.

  • Page 26

    IP address allocation and delivery of host-specific configuration parameters from a DHCP server to a host. Some of these parameters are IP address, network mask, and gateway. Motorola Solutions recommends the WAN and LAN ports should not both be configured as DHCP clients.

  • Page 27

    Installation Guide • Static IP / Mask - Specify an IP address for the WAN connection if using static address assignment for the WAN port. An IP address uses a series of four numbers expressed in dot notation, for example, 190.188.12.1. Additionally, specify a Mask for the Access Point’s WAN connection. This number is available from the ISP for a DSL or cable-modem connection, or from an administrator if the Access Point connects to a larger network.

  • Page 28

    The Wireless screen displays fields where Radio Settings and Wireless LAN settings can be defined. Motorola Solutions recommends default radio settings remain as is for the Access Point’s basic setup. For information on using WiNG Express beyond this initial setup, refer to the Motorola Solutions WiNG Express Users Guide.

  • Page 29

    Installation Guide 16. To create a new WLAN, select + Add from the upper, left-hand side of the Wireless LAN field. 17. Set the following configuration attributes for the new WLAN: • Name - Provide a unique name for the WLAN as its WiNG Express network identifier. This is a required setting.

  • Page 30

    VLAN - Use the spinner control to specify a VLAN from 1 - 4,094 for this WLAN. When a client associates with a WLAN, the client is assigned a VLAN by load balance distribution. Motorola Solutions recommends you do not use VLAN 1 with the WLAN if the WAN port has been enabled.

  • Page 31

    Installation Guide 19. Expand the Configuration menu item and select Services 20. Select Enable DHCP Server to ensure the Access Point can provision IP addresses to requesting clients over the specified interface. A VLAN must be already configured and available to the DHCP server as NOTE a viable interface between the Access Point and requesting client.

  • Page 32: Specifications, Ap-6522e Integrated Antenna Model Electrical Characteristics, Ap-6522e Integrated Antenna Model Physical Characteristics

    AP6522E Access Point Specifications 4.1 AP-6522E Integrated Antenna Model Electrical Characteristics An AP-6522E Integrated model Access Point has the following electrical characteristics: Operating Current & 12VDC, 1A (accessory power connector) Voltage 48V,0.25A (PoE connector) 4.2 AP-6522E Integrated Antenna Model Physical Characteristics...

  • Page 33: Ap-6522e External Antenna Model Electrical Characteristics, Ap-6522e External Antenna Model Physical Characteristics

    Installation Guide 4.3 AP-6522E External Antenna Model Electrical Characteristics An AP-6522E External Antenna model Access Point has the following electrical characteristics: Operating Current & 12VDC, 1A (accessory power connector) Voltage 48V,0.25A (PoE connector) 4.4 AP-6522E External Antenna Model Physical Characteristics An AP-6522E External Antenna model Access Point has the following physical characteristics: Dimensions 7.88 inches x 5.00 inches x 1.00 inches...

  • Page 34: Radio Characteristics

    AP6522E Access Point 4.5 Radio Characteristics The AP-6522E model Access Points have the following radio characteristics: Operating Channels All channels from 4920 MHz to 5825 MHz except channel 52 -64 Channels 1-13 (2412-2472 MHz) Channel 14 (2484 MHz) Japan only Actual operating frequencies depend on regulatory approval for the country of use.

  • Page 35: Regulatory Information

    Motorola Solutions, Inc. (collectively "Motorola"). This guide applies to Model Number AP6522. The AP6522 Access Point is approved under MODEL: AP-0622. All Motorola/Symbol devices are designed to be compliant with rules and regulations in locations they are sold and will be labeled as required.

  • Page 36: Health And Safety Recommendations, Warnings For Use Of Wireless Devices

    AP6522E Access Point 5.2 Health and Safety Recommendations 5.2.1 Country Selection Select only the country in which you are using the device. Any other selection will make the operation of this device illegal. 5.2.2 Frequency of Operation – FCC and IC You are reminded of the need to observe restrictions on the use of radio devices in fuel depots, chemical plants etc.

  • Page 37: Rf Exposure Guidelines, Safety In Hospitals, Reducing Rf Exposure - Use Properly

    5.4.2 International The device complies with internationally recognized standards covering human exposure to electromagnetic fields from radio devices. For information on “International” human exposure to electromagnetic fields refer to the Motorola/Symbol Declaration of Conformity (DoC) at: http://www.motorolasolutions.com/doc 5.4.3 Remote and Standalone Antenna Configurations...

  • Page 38: Us And Canada, Power Supply, Wireless Devices - Countries, Operation In The Us And Canada

    20 cm from all persons. 5.5 Power Supply Use ONLY a LISTED Motorola, Type no. PWRS-14000-148R (12VDC @ 4.16A), direct plug-in power supply, marked Class 2 (IEC60950-1, SELV). This device can be powered from a 802.3af compliant power source which is certified by the appropriate agencies.

  • Page 39: Ce Marking And Ropean Economic Area (eea)

    Installation Guide may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •...

  • Page 40: Statement Of Compliance, Korea Warning Statement For Class B Ite, Other Countries

    AP6522E Access Point 5.8 Statement of Compliance Motorola hereby, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A Declaration of Conformity may be obtained from http://www.motorolasolutions.com/doc. 5.9 Korea Warning Statement for Class B ITE 5.10 Other Countries...

  • Page 41

    Installation Guide Taiwan 在 5.25-5.35 秭赫頻帶內操作之無線資訊傳輸設備,限於室內使用 Korea...

  • Page 42: Waste Electrical And Electronic Equipment (weee)

    AP6522E Access Point 5.11 Waste Electrical and Electronic Equipment (WEEE) English: For EU Customers: All products at the end of their life must be returned to Motorola Solutions for recycling. For information on how to return product, please go to: http://www.motorolasolutions.com/recycling/weee.

  • Page 43: Turkish Weee Statement Of Compliance

    Installation Guide Dansk: Til kunder i EU: Alle produkter skal returneres til Motorola Solutions til recirkulering, når de er udtjent. Læs oplysningerne om returnering af produkter på: http://www.motorolasolutions.com/recycling/weee. Ελληνικά: Για πελάτες στην Ε.Ε.: Όλα τα προϊόντα, στο τέλος της διάρκειας ζωής τους, πρέπει να επιστρέφονται...

  • Page 44: Motorola Solutions Support Center

    • Model number or product name • Software type and version number Motorola Solutions responds to calls by e-mail, telephone, or fax within the time limits set forth in support agreements. If you purchased your product from a Motorola Solutions business partner, contact that business partner for support.

  • Page 45

    (Hg) (Cd) (Parts) (PBB) (PBDE) (Metal Parts) (Circuit Modules) (Cables and Cable Assemblies) (Plastic and Polymeric Parts) (Optics and Optical Components) (Batteries) SJ/T11363-2006 SJ/T11363-2006 This table was created to comply with China RoHS requirements for Motorola Solutions‘ AP-6522E Access Point.

  • Page 46

    AP6522E Access Point...

  • Page 47

    Installation Guide...

  • Page 48

    Schaumburg, IL 60196-1078, U.S.A. http://www.motorolasolutions.com MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2014 Motorola Solutions, Inc. All Rights Reserved.
