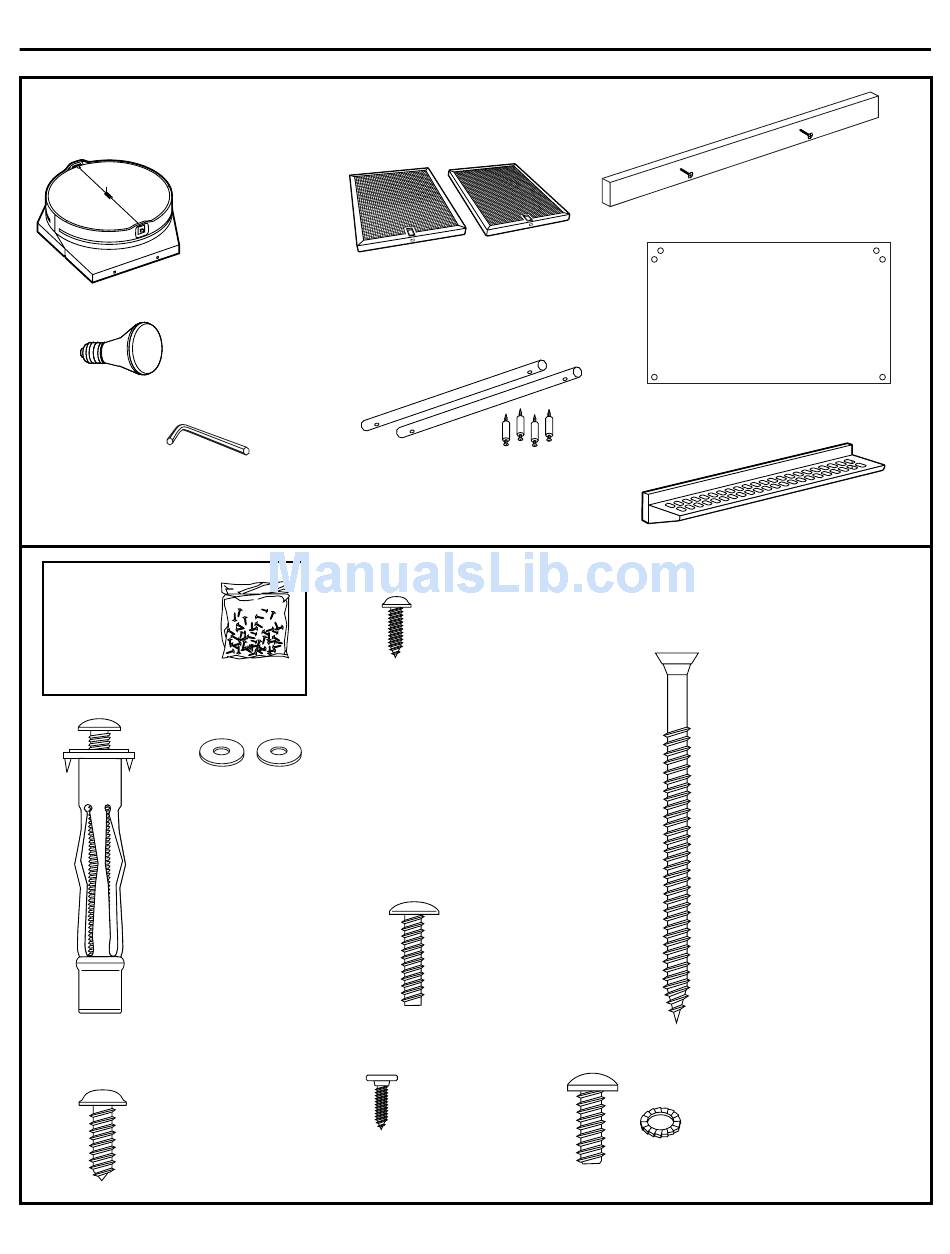

PARTS PROVIDED

Locate the parts packed with the hood.
Duct Transition
with Damper
Heat Lamp
(2 with 48" models)
Allen Wrench
For Implement Rods
HARDWARE
PACKAGE
Locate and check
contents. Screws
shown actual size.
2 flat washers
for wall anchors
6 (3/16") hollow wall anchors
with screws use 4 to secure
hood to the wall at the bottom.
Use 2 to secure backguard.
10 Screws. Use 6 to secure
hood to the wood support.
(2 are secured to wood
support) Use 4 to secure
backguard to wall. Torx
Installation Preparation
2 Stainless Steel Grease Filters
(3 filters with 48" models)
2 Implement Rods and 4 Stand-offs
4 screws to secure the duct
transition to the hood outlet
on the top. Torx
2 machine screws
to secure shelf to bottom
of hood. Torx
2 shoulder screws to
secure shelf to bottom
of hood. Torx
®
20
®
20
®
20
®
20
9
Wood Support
with Original Screws
Backguard
Warming Shelf
4 screws to secure the wood
support to the wall
POZIDRIV 3
1 safety screw and lock
washer, to secure the
blower (screw is marked
®
with red paint). Torx 20
