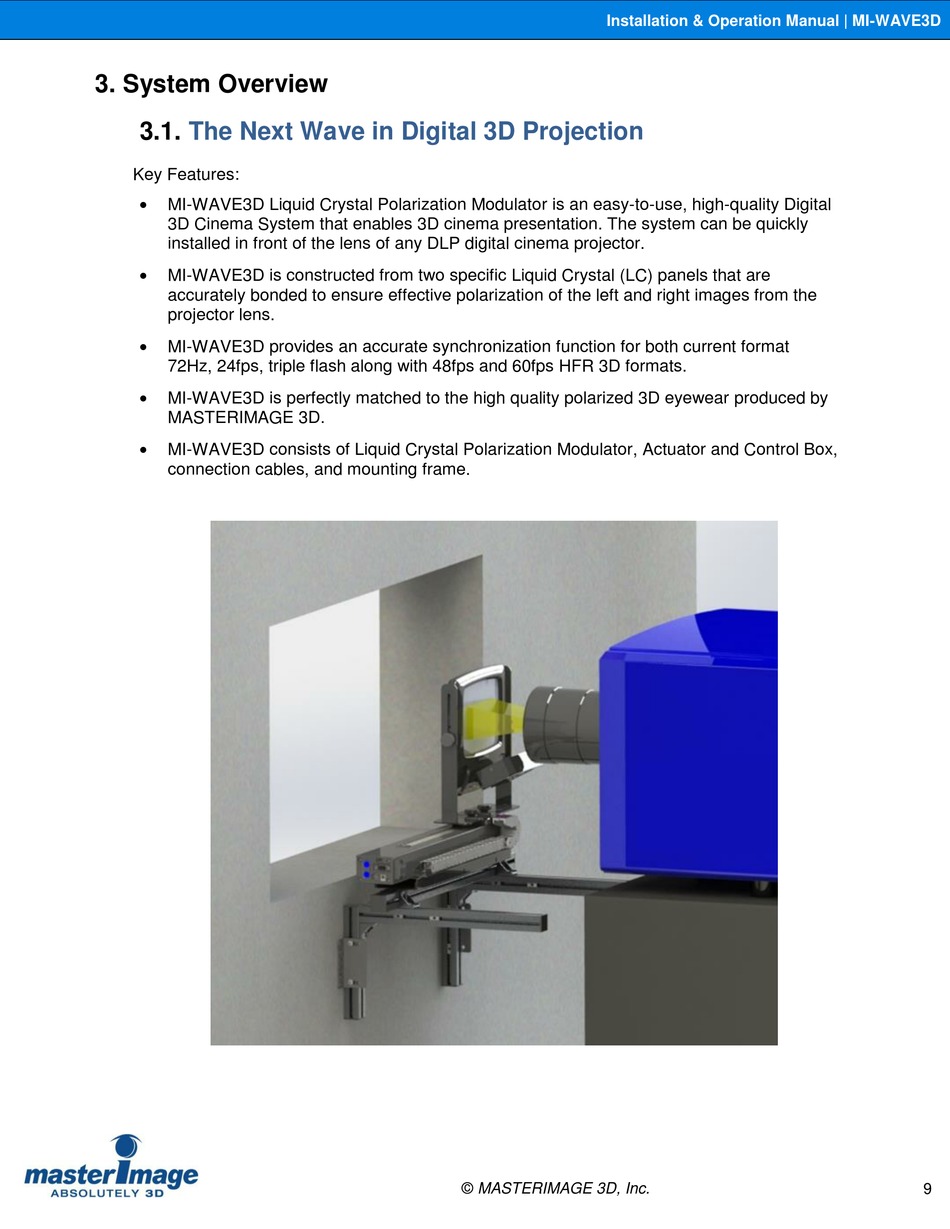

3. System Overview

3.1.

The Next Wave in Digital 3D Projection

Key Features:

MI-WAVE3D Liquid Crystal Polarization Modulator is an easy-to-use, high-quality Digital
3D Cinema System that enables 3D cinema presentation. The system can be quickly
installed in front of the lens of any DLP digital cinema projector.

MI-WAVE3D is constructed from two specific Liquid Crystal (LC) panels that are
accurately bonded to ensure effective polarization of the left and right images from the
projector lens.

MI-WAVE3D provides an accurate synchronization function for both current format
72Hz, 24fps, triple flash along with 48fps and 60fps HFR 3D formats.

MI-WAVE3D is perfectly matched to the high quality polarized 3D eyewear produced by
MASTERIMAGE 3D.

MI-WAVE3D consists of Liquid Crystal Polarization Modulator, Actuator and Control Box,
connection cables, and mounting frame.
