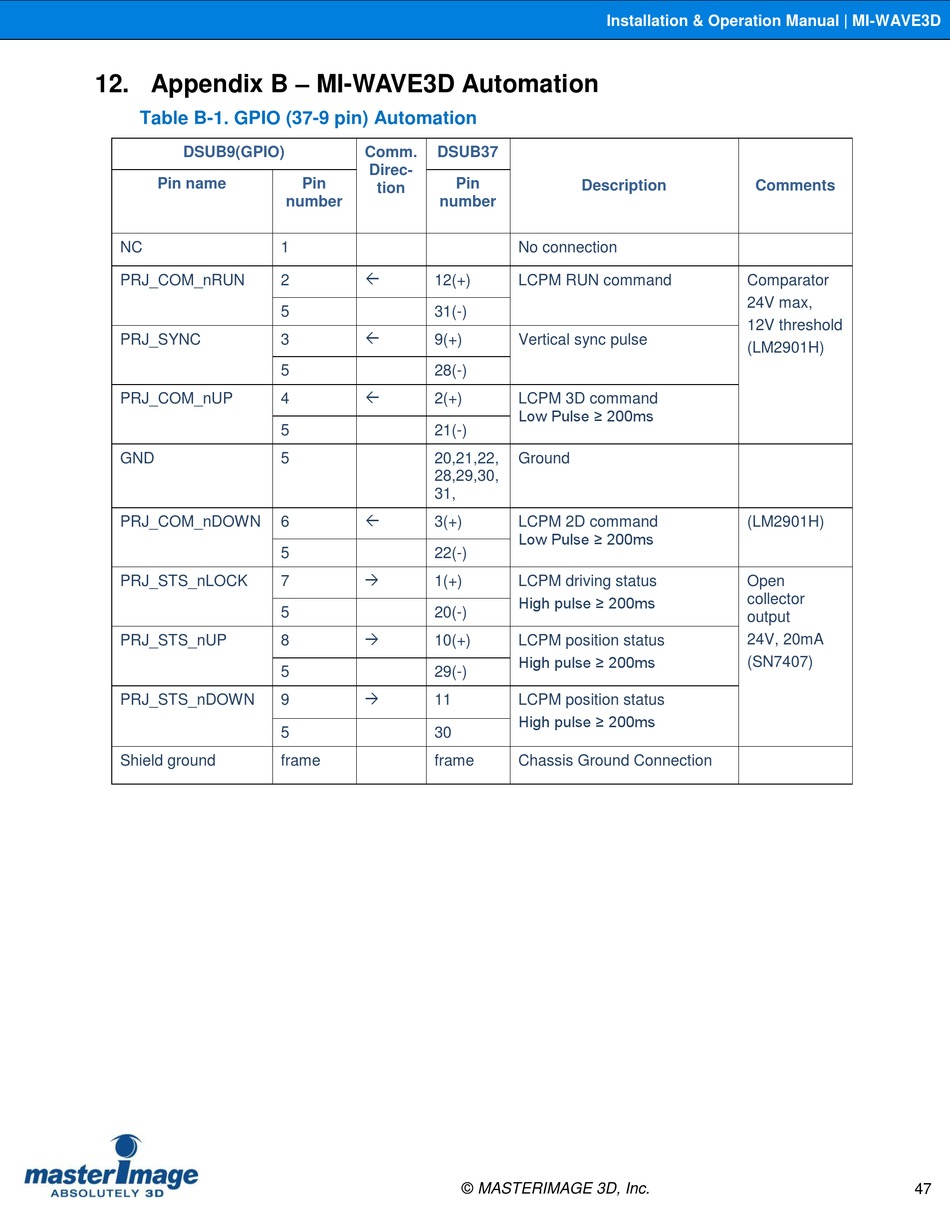

12. Appendix B – MI-WAVE3D Automation
Table B-1. GPIO (37-9 pin) Automation
DSUB9(GPIO)
Pin name
NC
PRJ_COM_nRUN
PRJ_SYNC
PRJ_COM_nUP
GND
PRJ_COM_nDOWN
PRJ_STS_nLOCK
PRJ_STS_nUP
PRJ_STS_nDOWN
Shield ground
Comm. DSUB37
Direc-
Pin Pin
tion
number number
1

2 12(+)
5 31(-)

3 9(+)
5 28(-)

4 2(+)
5 21(-)
5 20,21,22,
28,29,30,
31,

6 3(+)
5 22(-)

7 1(+)
5 20(-)

8 10(+)
5 29(-)

9 11
5 30
frame frame
Installation & Operation Manual | MI-WAVE3D
Description
No connection
LCPM RUN command
Vertical sync pulse
LCPM 3D command
Low Pulse ≥ 200ms
Ground
LCPM 2D command
Low Pulse ≥ 200ms
LCPM driving status
High pulse ≥ 200ms
LCPM position status
High pulse ≥ 200ms
LCPM position status
High pulse ≥ 200ms
Chassis Ground Connection
