Master Image MI-WAVE3D Installation & Operation Manual page 52

4. Highlight the Input/Output option and Send Message, and then click the Add

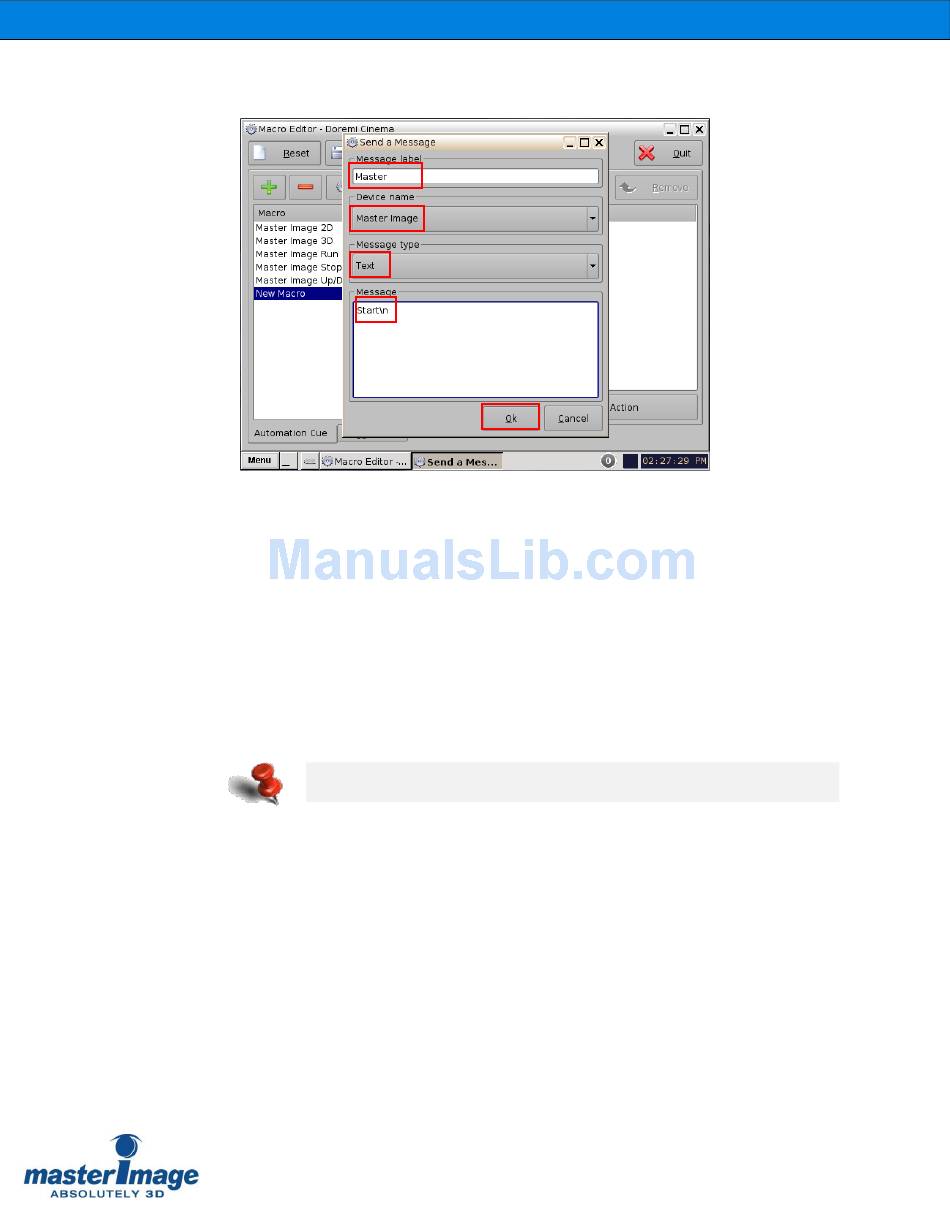

button. The following configuration window will appear:
5. In this window, choose the device MasterImage from the Device name
dropdown list and type in the Message label of MasterImage Start. Ensure the
Message type is Text and type Start\n in the Message box. After all fields have
been completed click the OK button.
6. Repeat this step for the remaining four macros entering the corresponding
message text:
MasterImage Stop
MasterImage 2D
MasterImage 3D
MasterImage Up/Down Stop
At the end of each command, add the text "\n" to complete the command
7. Once all message text has been added, click the Save button from the main
Macro Editor screen.
8. Now when you return to the CineLister screen and click the Refresh button, the
macros will all display in the Automation Cues section (shown below) and can
be added to future playlists as required.
Installation & Operation Manual | MI-WAVE3D
Stop\n
PFD DOWN\n
PFD UP\n
PFD Stop\n
© MASTERIMAGE 3D, Inc.
(or 2D\n)
(or 3D\n)
(or LCM Stop\n)
