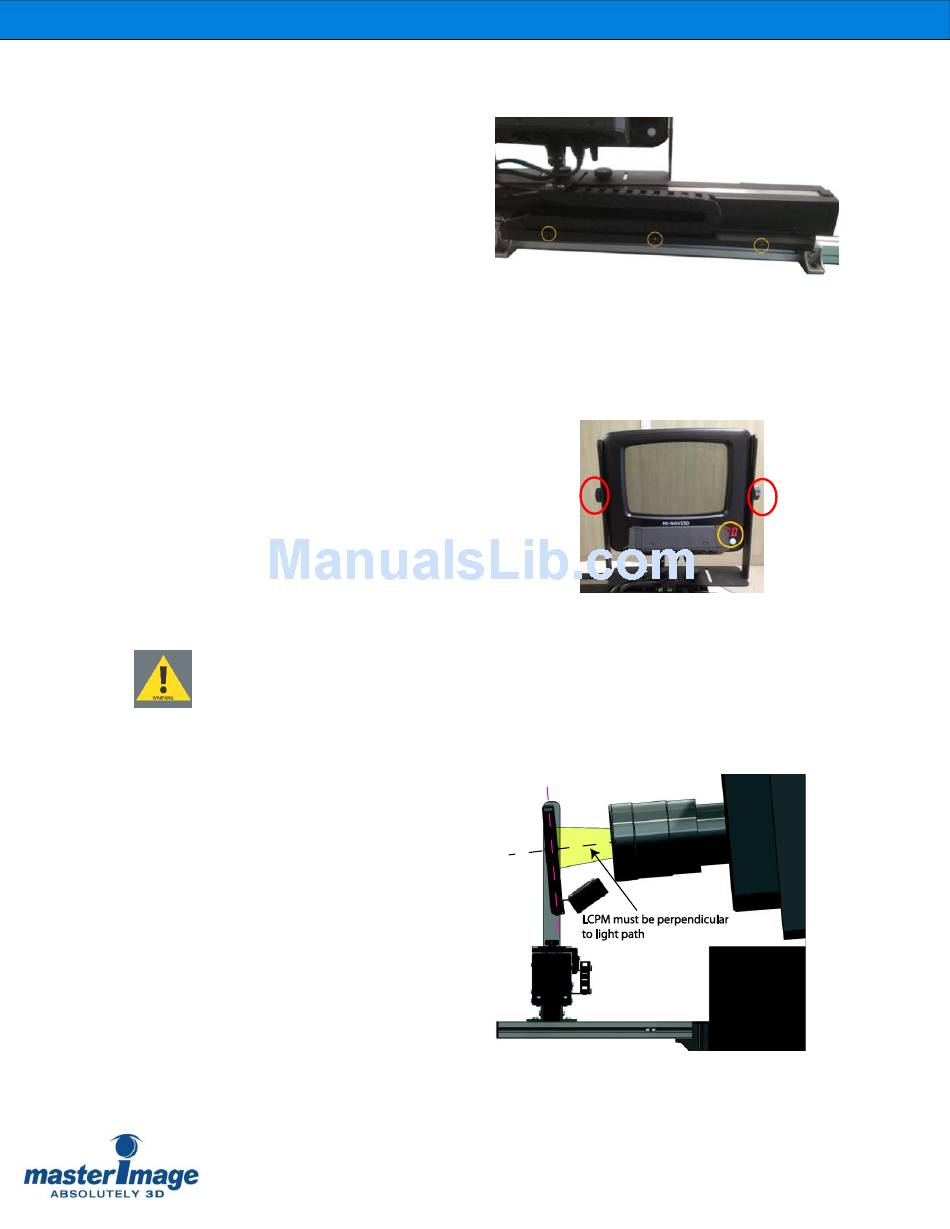

6.3.6. Assemble the Actuator Mounting Unit

Fix the actuator mounting plate on the
actuator mounting base with 6 supplied
screws. (Figure 12).

6.3.7. Installation Considerations

When installing the assembly in front of
the projector, use the screws (Figure 13)
to accurately set the height and angle of
the LCPM.
IMPORTANT The LCPM must be installed perpendicular to the light path
exiting the lens. The angle of this light may not be the same angle as the
lens itself, so observe the light path from the side to make sure the LCPM is
exactly perpendicular. See Figure 14.
The LCPM must be adjusted so that it is
perpendicular to the light path exiting the
lens.
LCPM Height & Angle Adjustment
Figure 14. Adjust LCPM Tilt Perpendicular to
© MASTERIMAGE 3D, Inc.
Installation & Operation Manual | MI-WAVE3D
Figure 12. Actuator Mounting Unit
Figure 13. Height and Angle Adjustment
Screws
Light Path
