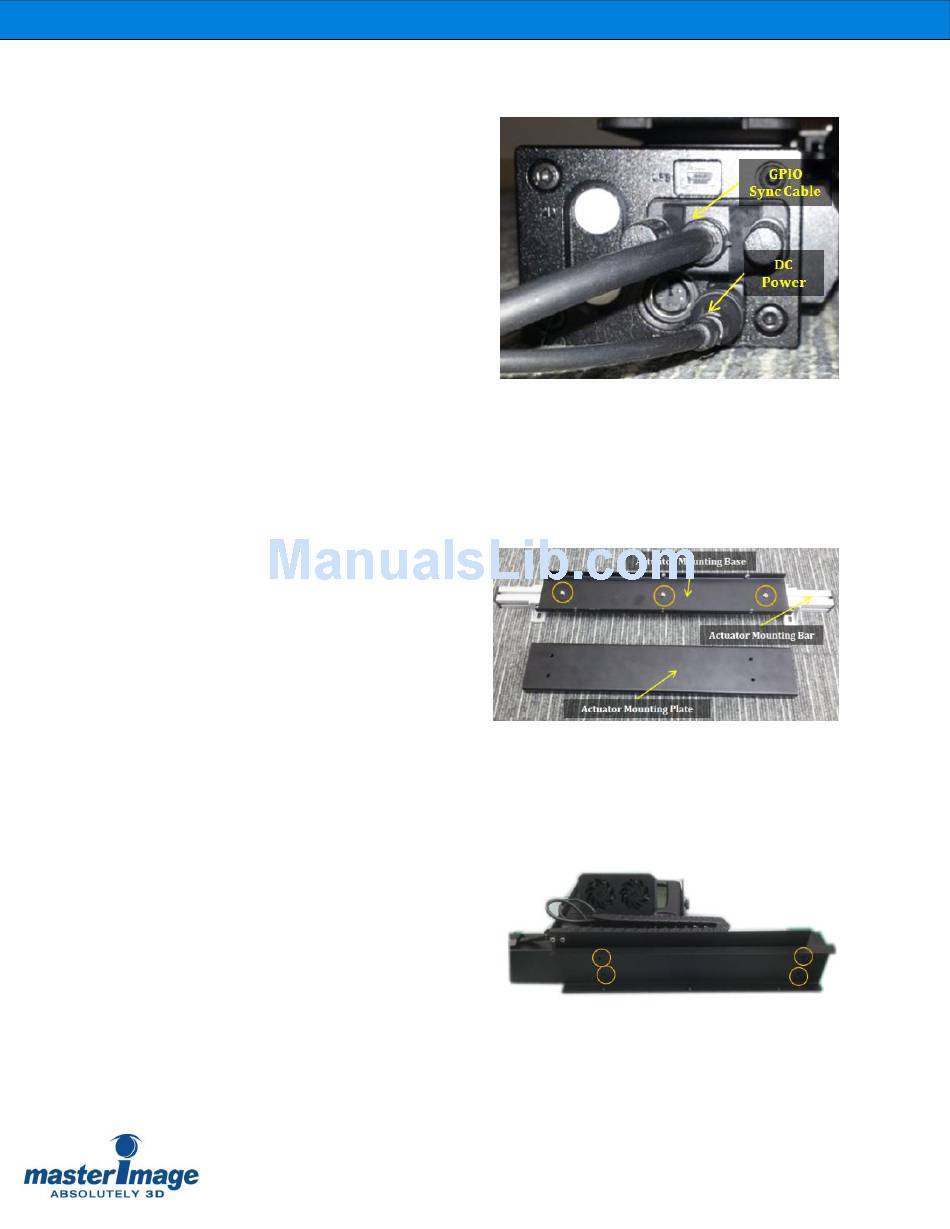

6.3.3. Connect the Actuator Cables

Connect the GPIO Sync Cable and DC
Adaptor Cable to the end of the Actuator.
(Figure 9).

6.3.4. Attach the Actuator Mounting Base

Mount the actuator mounting base to the
actuator mounting bar with 3 supplied
screws. (Figure 10).

6.3.5. Attach the Actuator Mounting Plate

Fix the actuator mounting plate on the
bottom of the actuator with 4 supplied
screws. (Figure 11).
Installation & Operation Manual | MI-WAVE3D
Figure 9. Height and Angle Adjustment
Figure 10. Actuator Mounting Base
Figure 11. Actuator Mounting Plate
© MASTERIMAGE 3D, Inc.
Screws
17
