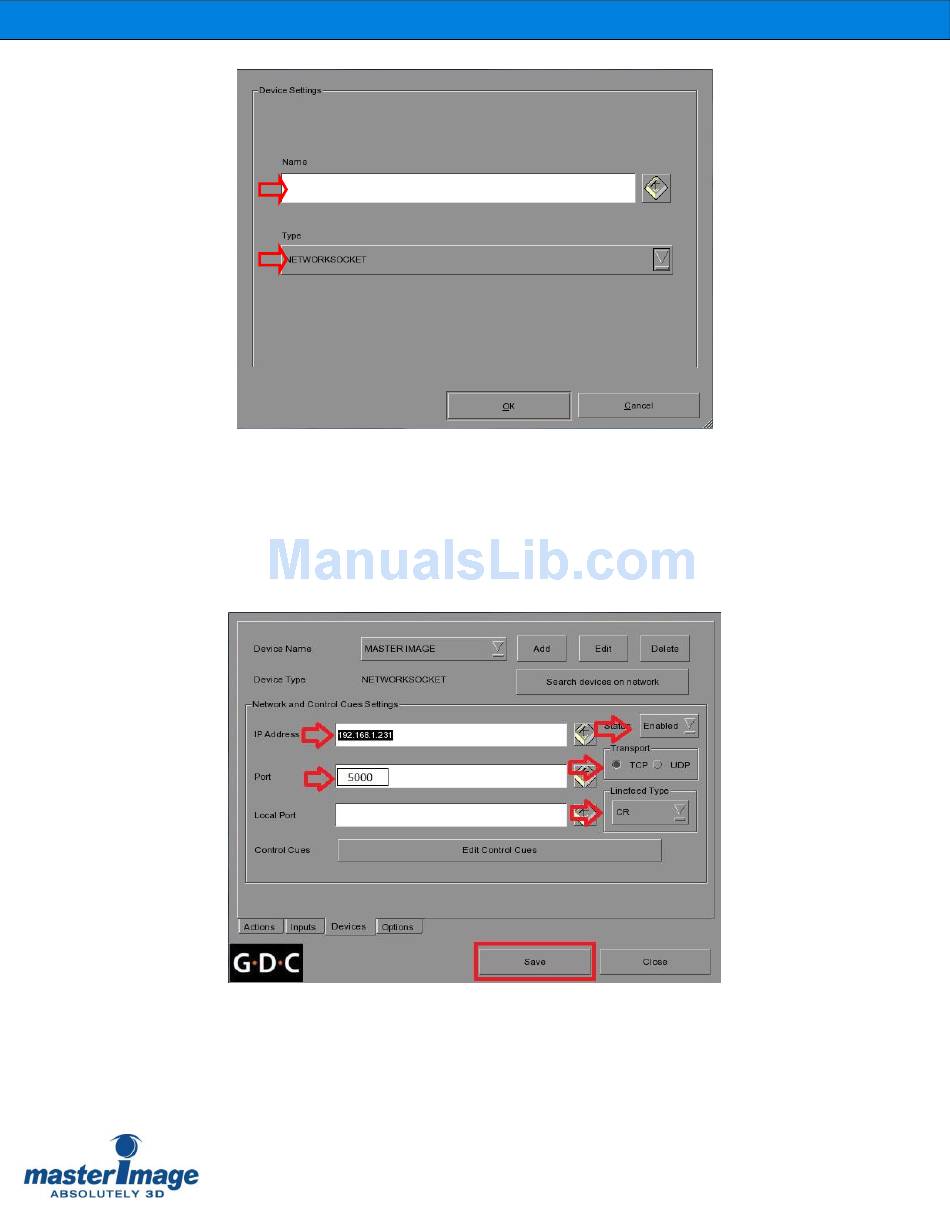

4. Name the new device MasterImage, and ensure the Type selection is set to
NETWORKSOCKET, then click OK.
5. In the next screen, enter the configuration settings for the MI-WAVE3D IP
Address and Port Number.
6. In the Transport option select TCP and in the Linefeed Type select CR and
ensure the Status is set to Enabled.
7. Once all entries have been made click the Save button.
Last, it is necessary to program the control macros in the server.
8. Click the Edit Control Cues button and the following screen will display.
Installation & Operation Manual | MI-WAVE3D
© MASTERIMAGE 3D, Inc.
60
