7. Basic System Operation

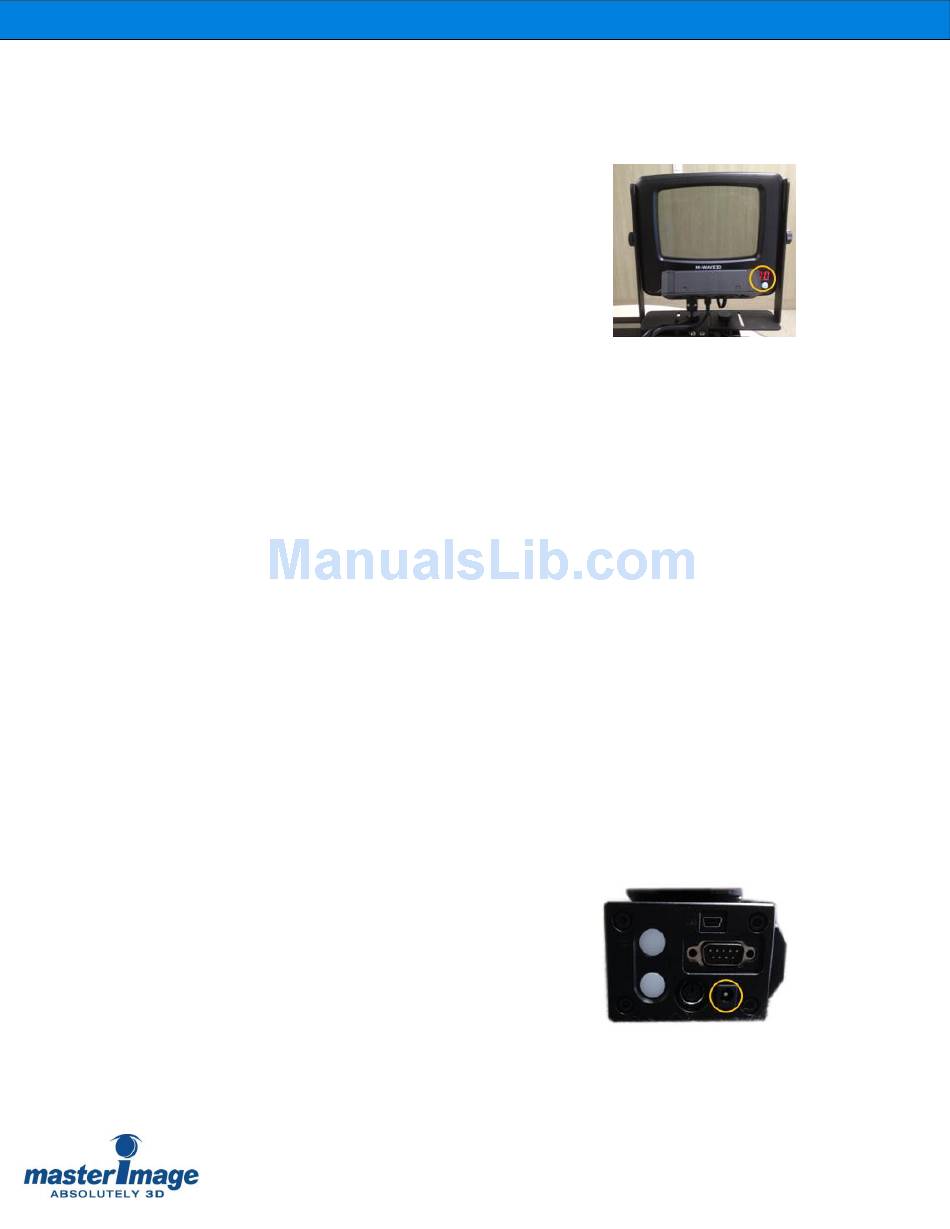

System Ready – Standby Condition
7.1.
When the system DC power supply is connected to
power the '00' of the LCPM LED display indicates
'Ready' status.
If the system is already connected to an active GPIO
signal the incoming frequency will be displayed.
(Figure 18).
7.2.

System Running

To operate the LCPM, press and hold the RUN button for 1 second and release.
The RUN button LED blinks during system stabilization with the GPIO or TTL sync signal.
The cooling fans will also be operational.
Once stabilization is complete the RUN button LED will be solid and the sync frequency
displayed.
7.3.

System Stopping

To stop operation of the LCPM, press and hold the RUN button for 1 second and release.
The RUN button LED will be off.
The cooling fans will stop operation.
The LED display will either display '00' or the sync frequency if it is still being input.
7.4.

System Power Off

To power off the system disconnect the DC
power cable from the actuator or remove the
plug from the mains wall socket.
(Figure 19).
Installation & Operation Manual | MI-WAVE3D
Figure 19. Power Off
© MASTERIMAGE 3D, Inc.
Figure 18
21
