Summary of Contents for Gorenje GC341UC

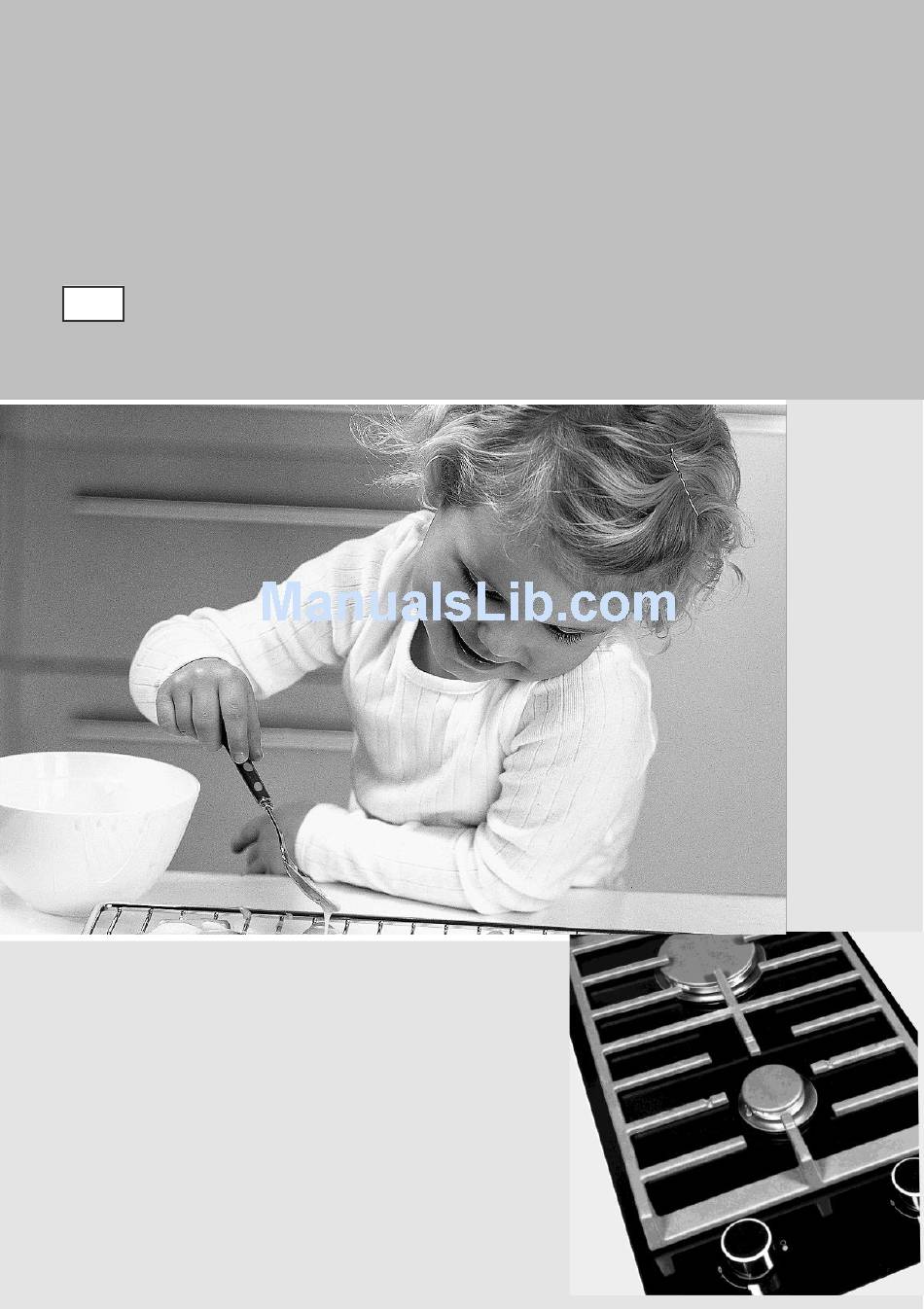

- Page 1 INSTRUCTIONS FOR USE, MOUNTING AND CONNECTION Integrated gas hob...
- Page 3 Integrated gas hob This integrated gas hob is manufactured for household use. Dear Buyer, Our appliances are packed in the environmentally friendly materials which may be recycled, deposited or destroyed without any hazard to the environment. Such packaging materials are also labeled accordingly.
-
Page 4: Safety Precautions
Safety precautions Only certified specialist can build in the appliance into a furniture set, connect it to gas distribution net and to the electric power net. During the operation of gas burners the room may be filled with extra heat and humidity, so it is necessary to assure adequate ventilation. -
Page 5: Description Of The Appliance
Description of the appliance Hob surface is made of ceramic glass and is fitted with gas burners and control buttons (depending upon the model). Rear burner – large (B) Front burner – small (A1) Double burner (Wok) 4. Front burner control button 5. -
Page 6: Gas Burner Control
The location of grating 1. Cast iron cooking grating. 2. Centering – setting pin of the grating. The cast iron cooking grating is heated up during appliance operation and remains hot during some time even after extinction of the gas burners. Therefore be always careful (also at manipulation with the control knobs), for to prevent burning! ... - Page 7 Large and auxiliary burner a) 1. Burner crown cap 2. Burner crown with burner cap support 3. Thermal probe (thermally protected burners only, only certain models) 4. Ignition plug 5. Nozzle 6. Bowl of the burner Double burner (wok) - certain models only b) 1.
- Page 8 Always push the button in before starting to turn it! Burner type Dish diameter Large (3kW) 220 - 260mm Auxiliary (1 kW) 120 - 180mm 120 - 180mm Double (WOK) - interior flame (1kW) 220 - 300mm Double (WOK) - all flame ...
-
Page 9: Cleaning And Maintenance
Cookware Selection of the adequate dish size ensures optimized cooking time and consumption of gas. Diameter of the dish is of utmost importance. The flame reaching over the edge of the small diameter dish may destroy the dish, while the consumption of gas is increased. - Page 10 the direction of the surface treatment. Stubborn stains should be removed with wet cloth and then rubbed dry with a dry cloth to the brilliance. Never use such cleaners for cleaning of aluminum. Clean plastic and coated surfaces with liquid non-abrasive cleaning agents using soft cloth.
- Page 11 Pattern marks can be erased by the use of aggressive cleansing agents or rough and damaged cookware bottoms (Fig. 2). Minor stains are removed with moist soft cloth; after that the surface should be wiped dry (Fig. 3). Water stains are removed with gentle vinegar solution, but you must not wipe the frame with it (certain models only), since it may lose its glow.
-
Page 12: Troubleshooting Guide
Troubleshooting guide Repairs may be done by qualified personnel only. Any unskilled attempt to repair the appliance is extremely dangerous. Before attempting any repairs disconnect the appliance from the mains by removing the fuse or unplugging the mains lead from the mains socket. -
Page 13: Installation Instructions
Installation instructions Caution! To avoid any possible hazard, the appliance may be installed by qualified personnel only. The veneer or the cover of furniture, respectively, in which the appliance is built in, has to be prepared from materials with thermal endurance up to 100° C as minimum, for preventing the changing of color and shape because of insufficient thermal endurance. - Page 14 The appliance may be installed in any worktop with a thickness from 30 mm to 50 mm. Bottom kitchen element must not have a drawer. It must be fitted with a horizontal plate 150 mm away from the worktop bottom surface.
-
Page 15: Connecting The Hob To The Mains
Installation of several When installing several glassceramic hobs it is necessary to glass-ceramic hobs separate them with intermediary short strip (to be purchased separately 286696). 286696 Connecting the hob to the mains Connections may be carried out by a qualified technician only. - Page 16 The electric wiring should be equipped with a circuit breaker able to isolate the appliance from the mains in all points, with the distance between terminals of at least 3 mm in open position. This may be done by means of fuses, safety switches, etc.
- Page 17 Improper connection may damage parts of the appliance. Such damages are not covered by warranty! Before attempting any connections check whether voltage indicated on the rating plate agrees with the installation in your home. Authorized person must check the user connection voltage (230 V against N) with the voltage meter! ...
-
Page 18: Gas Connection
Gas connection Safety precautions Connections may be carried out by a qualified technician only. The appliance must be connected in accordance with the standing ragulations, and it may be used only in well ventilated rooms. Before any attempt to connect the appliance read carefully the instructions! ... - Page 19 Check sealing of all joints and couplings after connection. Gas connection joint A EN 10226 R1/2 connection B Nonmetal gasket of thickness 2 mm C Pipe extension for liquid gas After connection check proper functioning of burners. Gas must burn with clearly displayed blue-green flame hubs. If the flame is not stable, increase minimum power setting.
- Page 20 Hob burners (depending on the model) Large and auxiliary burner a) 1. Burner crown cap 2. Burner crown with burner cap support 3. Thermal probe (thermally protected burners only, only certain models) 4. Ignition plug 5. Nozzle 6. Bowl of the burner Double burner (wok) - certain models only b) 1.
-
Page 21: Nozzle Chart - Glas Ceramic Hob
Nozzle chart - glas ceramic hob Type of gas Auxiliary burner Large burner Number Wobbe Nominal heat input (kW) Natural gas H 0,36 0,76 Ws= 45,7÷54,7 MJ/m 95,21 34,4 285,64 72,4 Consumption (l/h) Natural gas E, E+ • • Nozzle mark (1/100mm) 128H3 Ws= 40,9÷54,7 MJ/m Nozzle code... -
Page 22: Technical Information
Technical information Type 4108.2G31CB Model GC 341 UC 46/300/510 Appliance dimensions (height/width/depth) mm AC 230 V Mains voltage AC 230 V, 50 Hz Operating voltage A1 = small burner B = large burner Front 1kW / A1 Rear 3kW / B Wok (kW) Cooking burners altogether (kW) 290,8... - Page 24 2014 09 01 / SAP 458293 4108 / EN...
