This electric integrated gas cooker is manufactured for household use.
Our appliances are packed in the environmentally friendly materials which may be
recycled, deposited or destroyed without any hazard to the environment. Such
packaging materials are also labeled accordingly.
Once the life cycle your appliance is over, make sure not to pollute the environment,
and deliver it to the authorized collectors of old household appliances.
Instructions for use have been prepared for the user, and describe the appliance and
the way it is handled. These instructions are intended for various types of the
appliance, so you may find some descriptions for the functions that your
particular appliance may not have.
These instructions are only valid of the country symbol is indicated on the appliance.
If there is NO county symbol in the appliance, technical instructions should be
observed for adapting the appliance to comply with the requirements and regulations
for use in your country.
The appliance must be connected in compliance with the instructions attached to it,
as well as in compliance with relevant regulations and standards. The connection
may only be performed by a qualified person.
The rating plate indicating the basic information on the appliance is attached to the
lower side of the hob.
migliori offerte di Cucine e Piani cottura
Important warnings
Installation
Connecting the appliance to the power mains
Connecting the cooking hob to the gas supply
Nozzle table
Technical information
Appliance description
Cleaning and maintenance
Special warnings and fault reporting
2

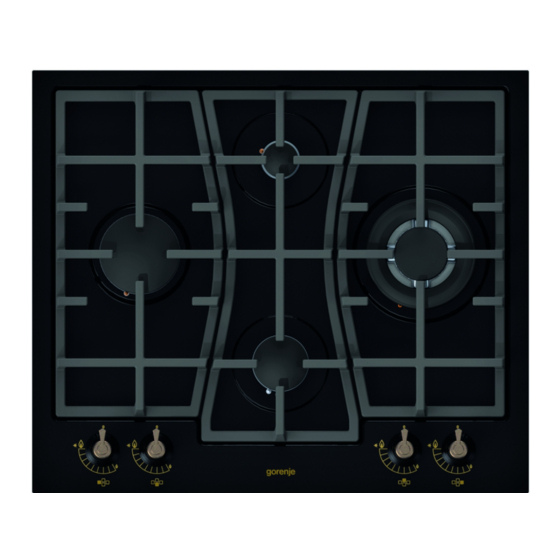

Gorenje GW65CLI
3
4
5
6
8
8
10
12
14
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Gorenje GW65CLI
Summary of Contents for Gorenje GW65CLI
- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Gorenje GW65CLI o cerca il tuo prodotto tra le migliori offerte di Cucine e Piani cottura Dear customer! This electric integrated gas cooker is manufactured for household use.
- Page 2 TECHNICAL INSTRUCTIONS AND INSTALLATION Important warnings • Installation of the appliance into a kitchen worktop and its connection to the power mains and the gas supply may only be performed by an adequately qualified technician. • When the appliance is in use, additional heat and moisture are emitted into the room.
-
Page 3: Installation
• Cooking hobs can be installed into worktops that are 25 to 40 mm thick. The front part must have an opening of no less than 5 mm. GW65CLB GW65CLI A (mm) B (mm) C (mm) -
Page 4: Connecting The Appliance To The Power Mains
Before inserting the appliance into the opening in the kitchen worktop, the supplied Installing the foam foam gasket must be attached to the lower side of the glass ceramic (glass) cooking gasket hob (see fi gure above). Do not install the appliance without the foam gasket! The gasket should be attached to the appliance in the following way: - Remove the protective film from the gasket. -
Page 5: Connecting The Cooking Hob To The Gas Supply
other side, adjacent to the appliance. • The current conducting and isolated parts must be protected from any possibility of direct contact. WARNING! • Before any intervention, disconnect the appliance from the power mains. Connect the appliance in compliance with the electric connections diagram supplied; make sure the relevant network voltage is observed! The ground wire (PE) should be connected to the clip indicated by the earthing symbol. - Page 6 • When connecting, the knee R1/2 should be held firmly to prevent it from rotating. • For sealing of the connection joints, use a non-metal approved gaskets and approved sealants. • The gaskets should only be used once. The thickness of the flat non-metal gaskets should not be deformed more than by 25 percent.
-
Page 7: Technical Information
Tighten the screw on the side of the tap, rod clockwise completely. Warning: these tasks may only be carried out by a qualified technician, authorized by the gas distributing company or authorized service center! TECHNICAL INFORMATION (TABLE 1) GW65CLI --- GW65CLB Appliance dimension (mm) Operating voltage 220-240 V~, 50/60 Hz Burner... - Page 8 • The gas burners are fitted a candle as flame failure device. If the burner flame Important warnings is extinguished accidentally or unintentionally (e.g. when some liquid boils over or when there is draught in the room): • gas supply is automatically cut off, thus preventing the gas from being emitted into the room.
-
Page 9: Appliance Description
INSTRUCTIONS FOR USE AND MAINTENANCE APPLIANCE DESCRIPTION 1. Gas cooking zone front left 4. Gas cooking zone front right 5. Gas cooking zone rear central 6. Gas cooking zone front central 7. Hob control panel Hob control elements Gas valve closed for gas cooking zones Ignition Maximum power... - Page 10 To get the best from the burners, use flat-bottomed pots with a diameter suited to the burner being used. For smaller diameter pots and pans (coffee and tea pots, etc.), the power of the burner being used has to be regulated in order to ensure that the flame laps the bottom of the pot without spilling over.
-
Page 11: Cleaning And Maintenance
CLEANING AND MAINTENANCE Do not use a steam cleaning appliance to clean this appliance. The steam could reach the electrical components and cause a short circuit. The appliance should be cleaned regularly, preferably after each use, after cooling • down. To avoid water marks and limescale deposits, use a soft cloth to dry surfaces that •... - Page 12 After each use of the glass-ceramic hob, wait for it to cool down and clean it; Ceramic glass surface otherwise, even the smallest food residue will be burnt onto the hot surface next time you use the appliance. For regular cleaning and maintenance of the glass-ceramic surface, use special conditioning agents which form a protective layer on the surface, shielding it from dirt.
-
Page 13: Special Warnings And Fault Reporting
SPECIAL WARNINGS AND FAULT REPORTING Important ▪ During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. ▪ Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet.
