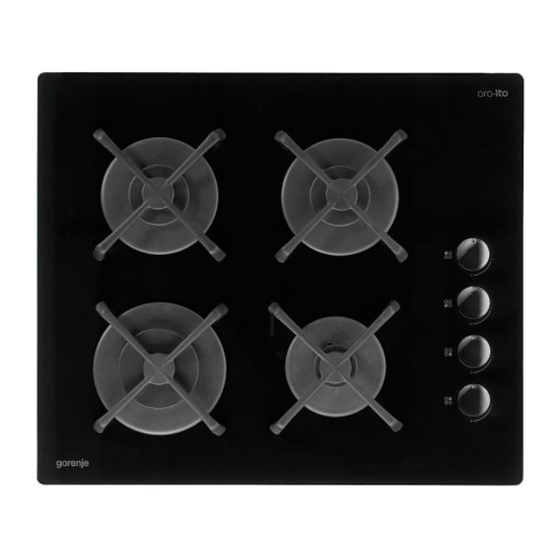

- Page 1 Instructions for use, installation, and connection Combined and gas built-in cooking hob...
-
Page 2: Table Of Contents
Combined and gas built-in cooking hob Dear customer! Combined and gas built-in hob is intended for use in households. Our products are packed in environment-friendly materials which can be recycled, disposed of, or destroyed without imposing any burden on the environment. Instructions for use Instructions for use are intended for the user. -
Page 3: Important Warnings
Important warnings • Installation of the appliance into a kitchen worktop and its connection to the power mains and the gas supply may only be performed by an adequately qualifi ed technician. • When the appliance is in use, additional heat and moisture are emitted into the room. When the appliance is used for a prolonged period of time at a high performance level, intensive ventilation or use of kitchen hood may is required in the room where the appliance is installed. -
Page 4: Appliance Description
Appliance description (equipment - depending on the model) Upper side of a combined cooker with Upper side of the cooking hob with a gas cooking zones gas burners and a triple cooking fi eld 1. Cooking zone rear left 2. Cooking zone rear right 3. -
Page 5: Cooking Zones
Cooking zones Gas cooking zones Important warnings • If you wish to quickly fry some food, set the gas burner to the maximum power initially and reduce the power as your continue. • With some models, gas burners are fi tted with thermoelectric protection devices. - Page 6 Wok accessory (for the double burner (Wok)) • Use the extension when preparing food in a Wok. • Place the extension over the burner grid support. Burner type Pan diameter Large (3,0kW) 220-260 mm Normal(1,75kW) 180-220 mm Auxiliary (1,0kW) 120-180 mm Triple burner (3.8kW) 220-260 mm Important warnings regarding the glass ceramic hob...
-
Page 7: Operating The Gas Burners
Operating the gas burners Ignition and operation of Models with two gas burners: the burners • Operate the gas burners using the knobs on the hob. Power levels are indicated on the knobs by large and small fl ame symbols (see section Appliance description). •... -
Page 8: Cleaning And Maintenance
Cleaning and maintenance Cleaning After each use of the glass-ceramic hob, wait for it to cool down and clean it; otherwise, even the smallest food residue will be burnt onto the hot surface next time you use the appliance. For regular cleaning and maintenance of the glass-ceramic surface, use special conditioning agents which form a protective layer on the surface, shielding it from dirt. - Page 9 Sugar and sugar-laden food may permanently damage the glass- ceramic surface (Figure 5); therefore, they should be removed from the glass-ceramic surface as soon as possible, although the cooking zone may still be hot (Figure 4). Any change in the color of the glass-ceramic surface does not affect its operation or the stability of the surface.
-
Page 10: Special Warnings And Fault Reporting
Special warnings and fault reporting During the warranty period, only a service center authorized by the manufacturer may carry out any repairs. Before making any repairs, make sure the appliance is disconnected from the power mains either by removing the fuse or by disconnecting the power plug from the wall outlet. Unauthorized tampering with and repairs of the kitchen range (cooking hob) can result in electric shock or short circuit;... -
Page 11: Installation
Installation Important warnings • Installation of the appliance into a kitchen worktop and its connection to the power mains may only be performed by an adequately qualifi ed technician. • Veneer or other fi nish of the piece of kitchen furniture into which the hob is to be built in should be treated with heat resistant glue (100°C);... - Page 12 NOTE! On some appliances the gasket is already installed! Kitchen worktop cutoff dimensions • Only type EVP4.., EVP2.., ovens fi tted with a cooling fan may be installed underneath this cooking hob. • Before installing an oven, the rear wall of the kitchen furniture element should be removed in the area of the cooking hob cutout.
-
Page 13: Connecting The Appliance To The Power Mains
Installation procedure • The worktop should be installed completely horizontally. • The cutoff surfaces should be appropriately protected. • Attach the fastening elements (4) with the supplied screws (4) to the front and rear wall of the cooking hob and the worktop cutoff. - Page 14 observed! The ground wire (PE) should be connected to the clip indicated by the earthing symbol. • The mains cable should be fed through the fastening clip which protects it from being accidentally pulled out. • After connecting the appliance, turn on all cooking zones / heaters for approximately three minutes to make sure they are operating correctly.
-
Page 15: Connecting The Cooking Hob To The Gas Supply
Connecting the cooking hob to the gas supply Important warnings • The appliance must be connected in compliance with all relevant regulations, and it may only be used in well ventilated / aerated rooms. Before connecting or using the appliance, please read the instruction manual. - Page 16 After the connection, check the burners for correct operation. The fl ames must be clearly visible, and should be blue and green at the center. If the fl ame is unstable, increase the minimum power. Explain the use of the burners to the user and read the instructions for use together.
-
Page 17: Nozzle Table
Gas valve Minimum thermal load regulation valve Nozzle table gas type, pressure Auxiliary burner Normal burner Large burner Triple burner Natural gas H Nom. therm. 0,36 1,75 0,46 0,76 1,56 Wo=45,7÷54,7 MJ/ m load (kW) Natural gas E , Consumption 95,21 34,4 166,62... -
Page 18: Technical Characteristics
Technical characteristics Rating plate A Serial number B Model C Type D Trademark E Code F Technical information G Compliance indications / symbols H Factory settings for gas type WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE. - Page 20 PVK,KVK62S_ORA ITO en (09-12)
